Black Dual EG/LFO

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty

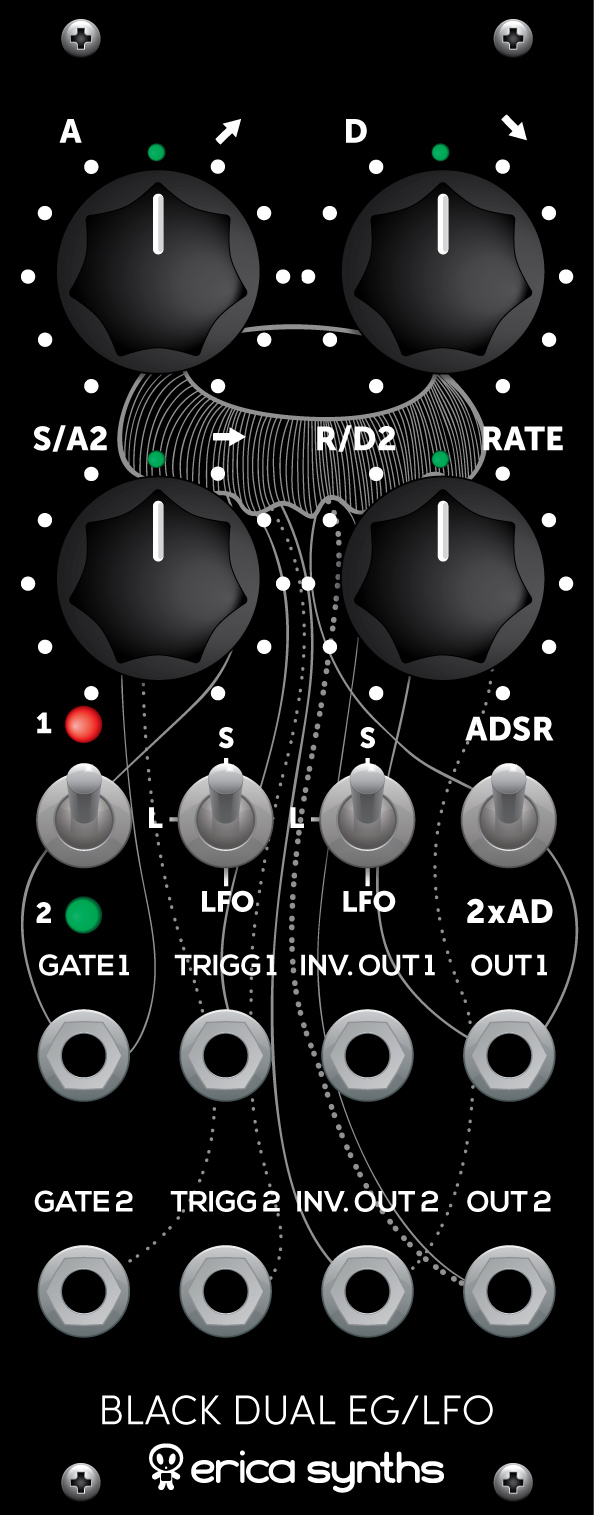

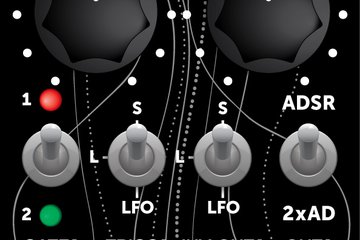

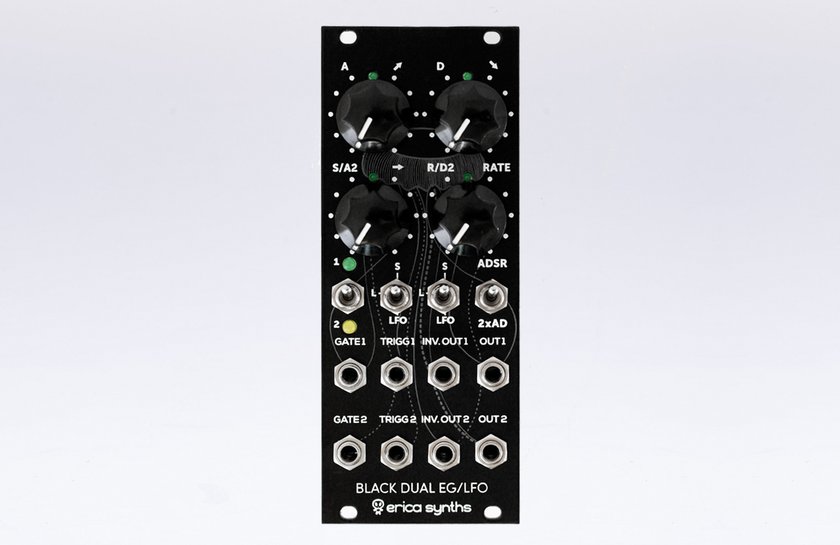

Erica Synths Black Dual EG/LFO has two full ADSR EGs and two unique LFOs with plenty of features just in 10HP!

Features

  • 2xADSR envelope or 2xASR envelope
  • 2xLFO
  • Draw your own LFO shape!
  • Gate and Trigger inputs
  • Direct and Inverter outputs
  • Long/Short EG switch
  • Full ADSR looping
  • LFO key follow function
  • Each step activity indication LEDs
  • Diode protection on reversed power supply

We managed to put two full ADSR envelope generators that you can adjust one by one or two simultaneous AD/ASR envelope generators and a unique, never seen before functionality LFO in just 10HP! This saves a lot of rack space that you can use for other Black Series modules!

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.

Technical specifications:

EG Output signal level

0 – +10V

LFO output signal level

-5V – +5V

LFO rate

0,2Hz – 30Hz

Sustain level

0 – +10V

Max Attack time

0,125’’(S), 2’’(L)

Max Decay time

0,125’’(S), 1’’(L)

Max Release time

0,350’’(S), 5’’(L)

Power consumption

+25mA, -15mA

Module width

10HP

Module depth

25mm
