Black Dual VCF
EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
- local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
- account_balance_wallet Pay securely with Credit Card or PayPal
- beach_access 24 month warranty

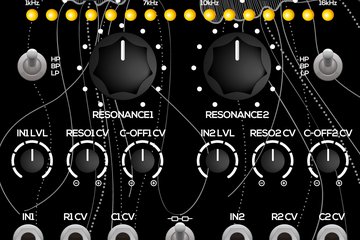

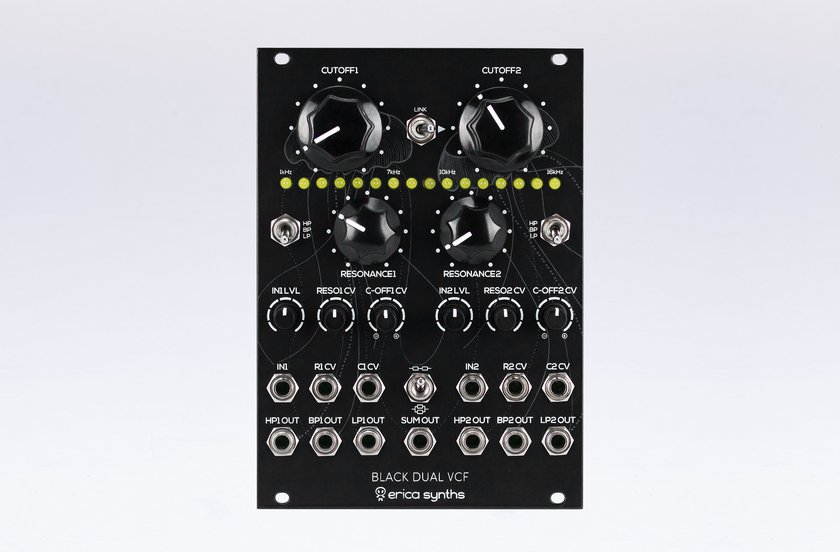

Erica Synths Black Dual VCF is a dual multimode filter with CV control over cutoff and resonance for serious modular patches.
Features
- Two identical multimode VCFs
- Simultaneous HP, BP and LP outputs
- Summing output
- CV control over Cutoff and Resonance
- CV level attenuverters
- Link switch for controlling both VCFs with one cutoff or resonance knob
- 16 band spectrum analyser
- Skiff-friendly design
At the core of this VCF is a highly stable, custom multimode VCF chip AS3320 (produced in Riga, btw). This module can be used as two independent VCFs with simultaneous HP, BP and LP outputs, controls can be linked to stereo application and both VCFs can be chained in series or parallel to the summing output for ultimate modulations. Bonus feature – the 16 band spectrum analyser gives you visual feedback on what happens on summing output.
Technical specifications:
Audio output amplitude | 10 Vptp |
CV input (full sweep) | 10 Vptp |
Panel width | 18HP |
Module depth | 35mm |
Power consumption | 40mA@+12V, 36mA@-12V |
