Black MIDI-CV V2

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty

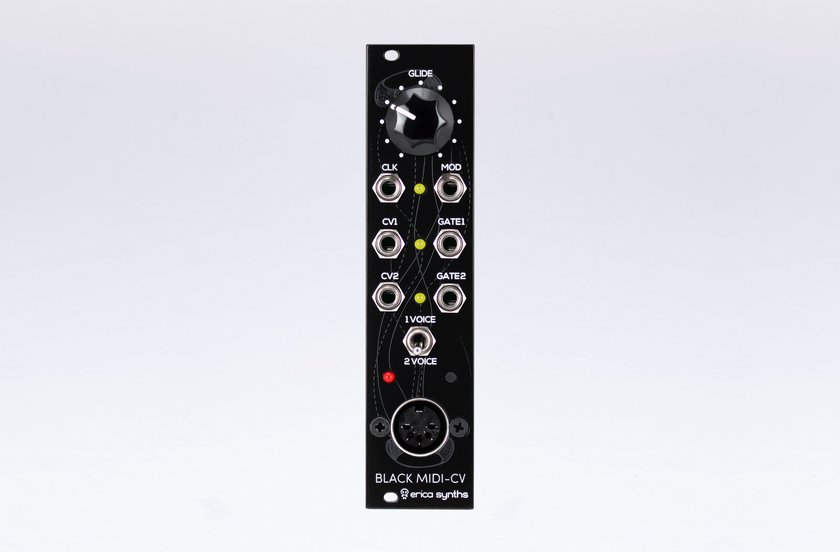

Erica Synths Black MIDI-CV is a compact, highly accurate and easy to use duophonic MIDI interface.

Features

  • Two CV and Gate outputs MIDI clock output (4ppq – sequencer friendly)
  • Configurable MOD output – modulation wheel or velocity
  • Analogue glide on both MIDI channels
  • One or two MIDI channel configuration
  • One or two voice switch

This module emulates classic monophonic and duophonic synth behaviour, it can also be configured for use in two independent MIDI channels. Bonus features – MIDI clock output and analogue glide circuit on both channels.

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.


Technical specifications:


CV range0-8V
Max CV deviation0.001V; 1cent
Gate and Clock level5v
Glide time0 – 2”
Power consumption+40mA, -9mA
Module width6HP
Module depth30mm


Erica Black MIDI CV on Modulargrid

Manuals book

FAQ question_answer

  • How to set up two different midi channels correctly?
    1. Go to program mode mode- push and hold prog button for 4 sec. 2. You are now in prog mode- Press and hold both of the keys ( c and c# - ch1 and ch2) 3. While holding the keys press prog button->( now you can release the keys) 4. You are now in mod config- press prog button one more time to exit the menu. Your two separate midi channels should now be assigned.
