Black Output module V1

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty

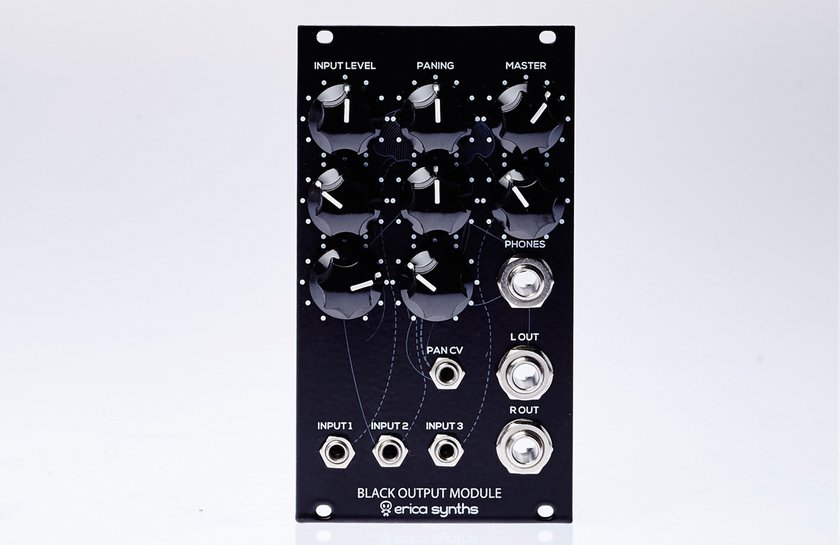

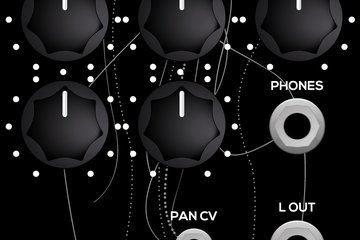

Erica Synths Black Output Module is high quality output mixer and stereo panner with balanced outputs and a headphone amplifier for monitoring your modular masterpieces.

Features

  • 3 separately buffered inputs
  • Balanced outputs
  • High quality headphone preamp
  • Separate volume controls for master out and headphones
  • Stereo potentiometers for pan control
  • CV controllable pan for IN 3
  • Diode protection on reversed power supply

All inputs are buffered and we used stereo potentiometers (found in high quality studio mixers) for panning, IN3 has a CV controlled autopan function. You will find 6.3mm jacks for balanced outputs and headphone out with dedicated preamp.

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.

Technical specifications:

Input signal level

-10V – +10V

Pan CV Input signal level

-10V - +10V

Phone amp out power

100mW

Power consumption

+65mA, -45mA

Module width

14HP

Module depth

30mm
