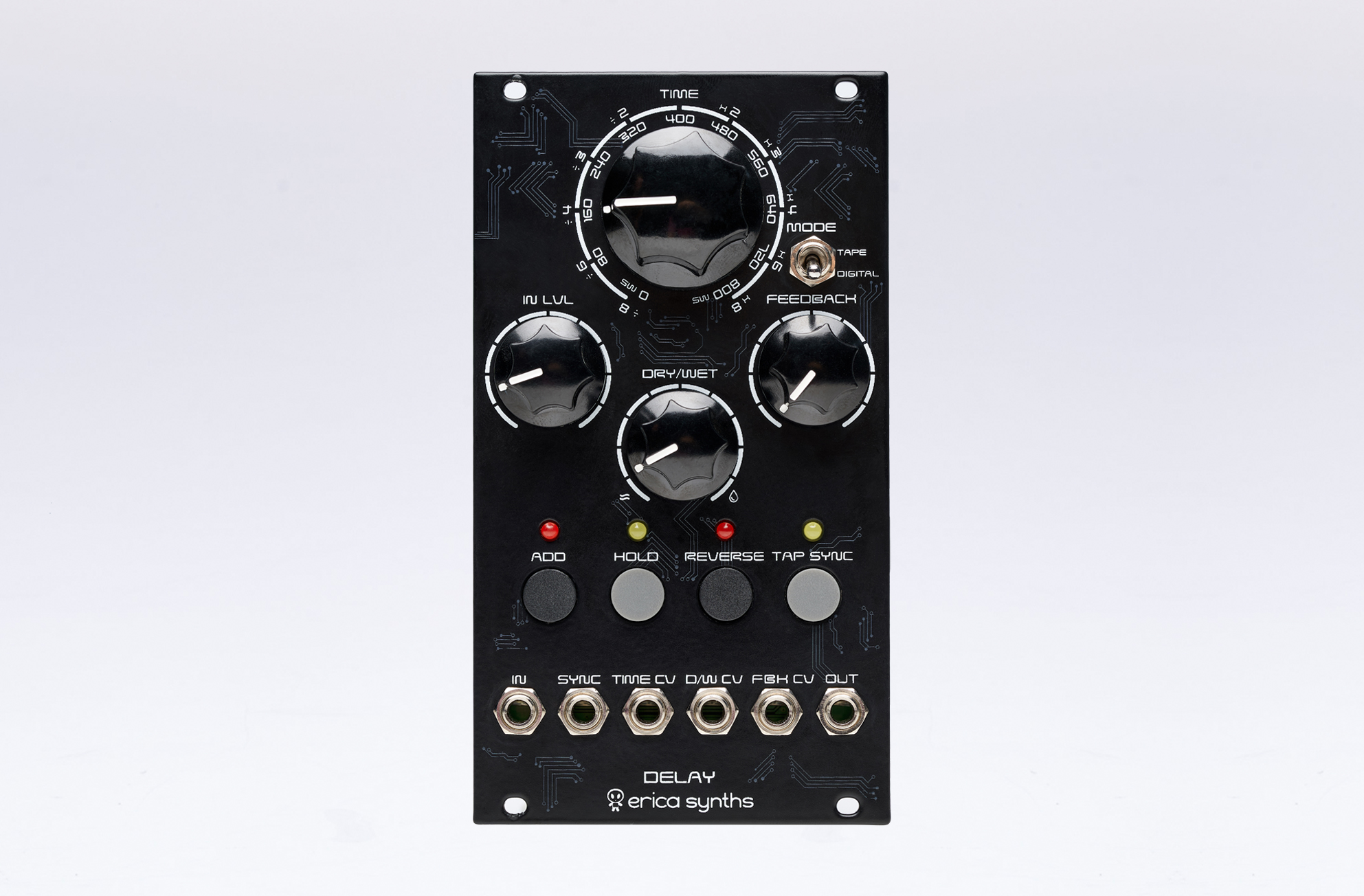

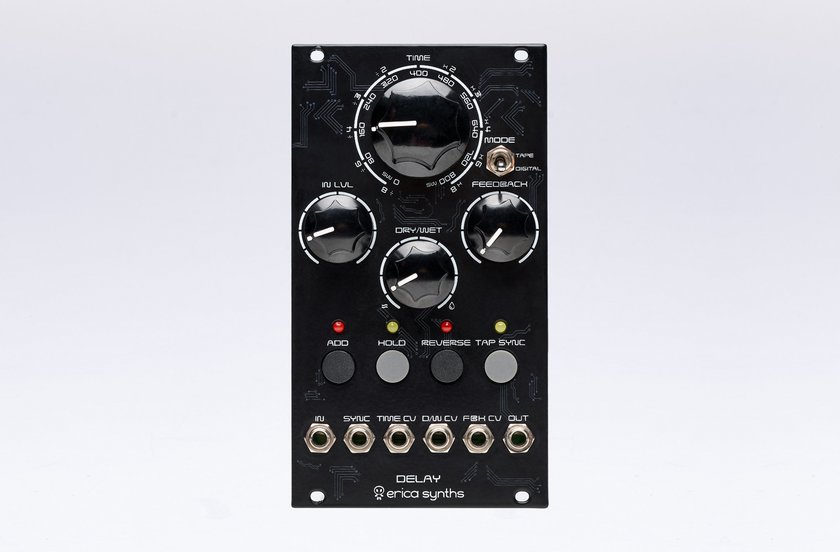

DIY Delay Full Kit

EAN:
4751030823256
Manufacturer:
Erica Synths
Worldwide delivery with UPS and Fedex
Pay securely with Credit Card or PayPal
24 month warranty
Short Description
Erica Synths DIY Delay is hi-fi delay module with unique functionality typically found on advanced factory-produced units. Read More
Shipping & Taxes

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping

Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping

Returns Policy
Warranty
Got questions? Guides and answers to frequently asked questions. Go To Support

Product Description

We developed a custom DSP MCU board (comes pre-soldered and pre-programmed) and delay algorithms for syncable up to 800 ms delays. Selectable Tape and Digital delay, BPM sync, Tap sync makes the module ideal for nuanced sound design. Furthermore Hold (freezes the sound up to 800 ms), Add (adds several layers of sound on top) and Reverse (reverses sound in the hold buffer) functions allow to create crazy sonic artifacts. You can find it here.



This is a comparably complex DIY project for experienced builders. We do not recommend this for beginners and ones without proper soldering and testing equipment.


Technical specifications:

Max Delay time800 ms
Sampling frequency48 kHz 24 bit
Audio output amplitude10Vptp
CV amplitude (full span)-5V-+5V
Panel width14 HP
Module depth45 mm
Power consumption97mA @ -12V, 33mA @ -12V



Effective January 1 2021 Erica Synths will not provide technical support for DIY projects. As all Erica Synths DIY Kits are now sold out, we offer them as opensource build projects on Github. If you have trouble with building any of Erica Synths DIY projects, please, for advice & support refer to forums & DIY community. All the rare components are available at largest DIY retailers or here

Product Highlights

Product Features

  • Tape Delay & Digital Delay algorithms
  • Up to 800 ms delay time
  • Syncable (clock and tap) delay time
  • Delay time divisions and multiplications
  • Freeze, Add and Reverse
  • Manually and CV controlled delay time feedback and dry/wet mix
