DISCONTINUED PRODUCTS
DIY MIDI-CV II
EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
- local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
- account_balance_wallet Pay securely with Credit Card or PayPal
- beach_access 24 month warranty

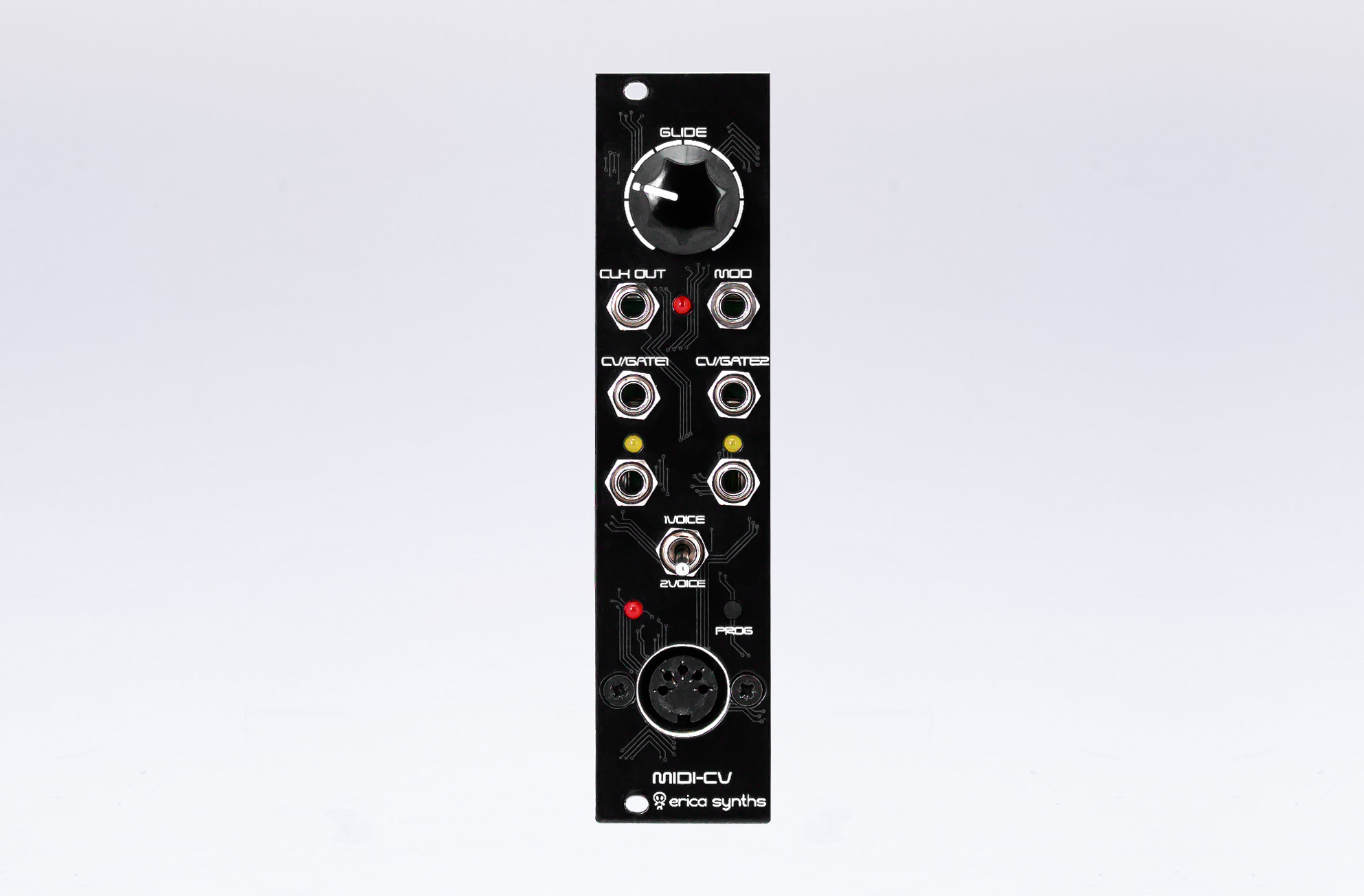

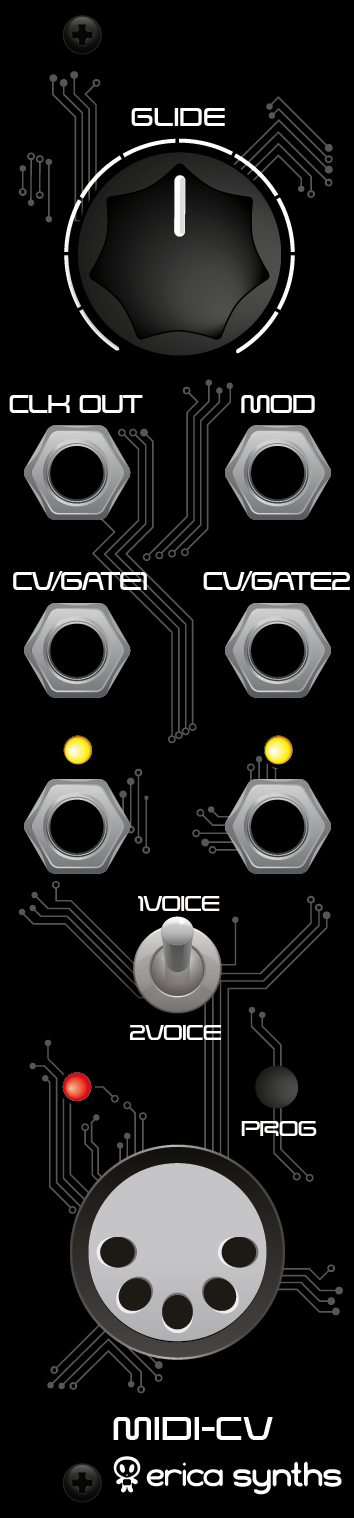

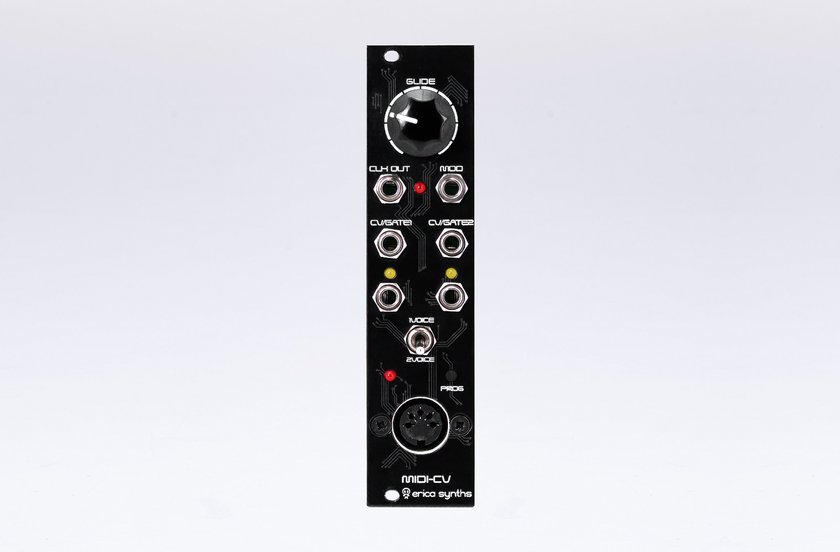

Erica Synths DIY MIDI-CV is compact, highly accurate and easy to use duophonic MIDI interface.
Features
- Two CV and Gate outputs
- Configurable MOD output – modulation wheel or velocity
- Analogue glide on both MIDI channels
- One or two MIDI channel configuration
- One or two voice switch
The Erica Synths DIY MIDI-CV emulates classical monophonic and duophonic synth behavior, as well as it can be configured for use in two independent MIDI channels. Bonus features – MIDI clock output and analogue glide circuit on both channels.
Technical specifications:
CV range | 0-8V |
Max CV deviation | 0.001V; 1cent |
Gate and Clock level | 5V |
Glide time | 0 – 2” |
Module width | 6HP |
Module depth | 35mm |
Power consumption | +40mA, -9mA |
Effective January 1 2021 Erica Synths will not provide technical support for DIY projects. As all Erica Synths DIY Kits are now sold out, we offer them as opensource build projects on Github. If you have trouble with building any of Erica Synths DIY projects, please, for advice & support refer to forums & DIY community. All the rare components are available at largest DIY retailers or here.
Manuals book
-
Assembly Guide — June 7, 2019
Downloads cloud_download
-
Assembly documents — June 7, 2019
-
Schematics — May 8, 2018
-
BOM — May 8, 2018
-
Component placement — May 8, 2018
