DIY Multimode VCF
EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
- local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
- account_balance_wallet Pay securely with Credit Card or PayPal
- beach_access 24 month warranty

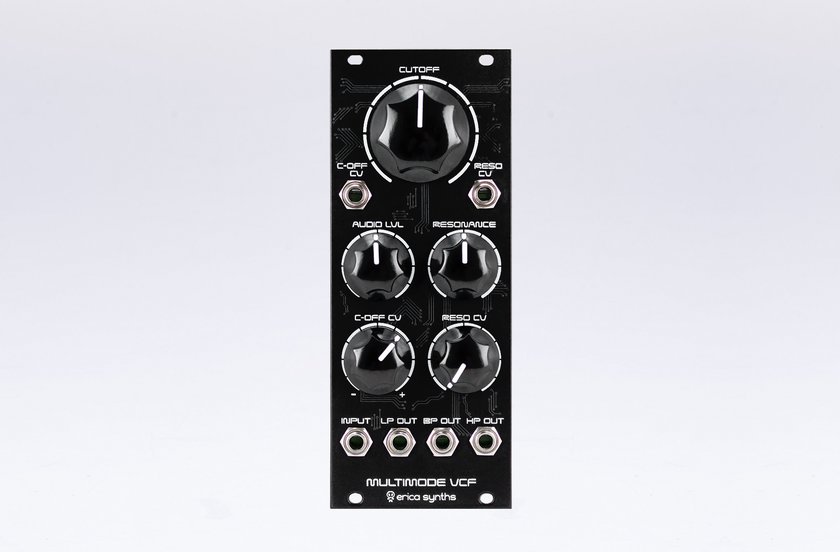

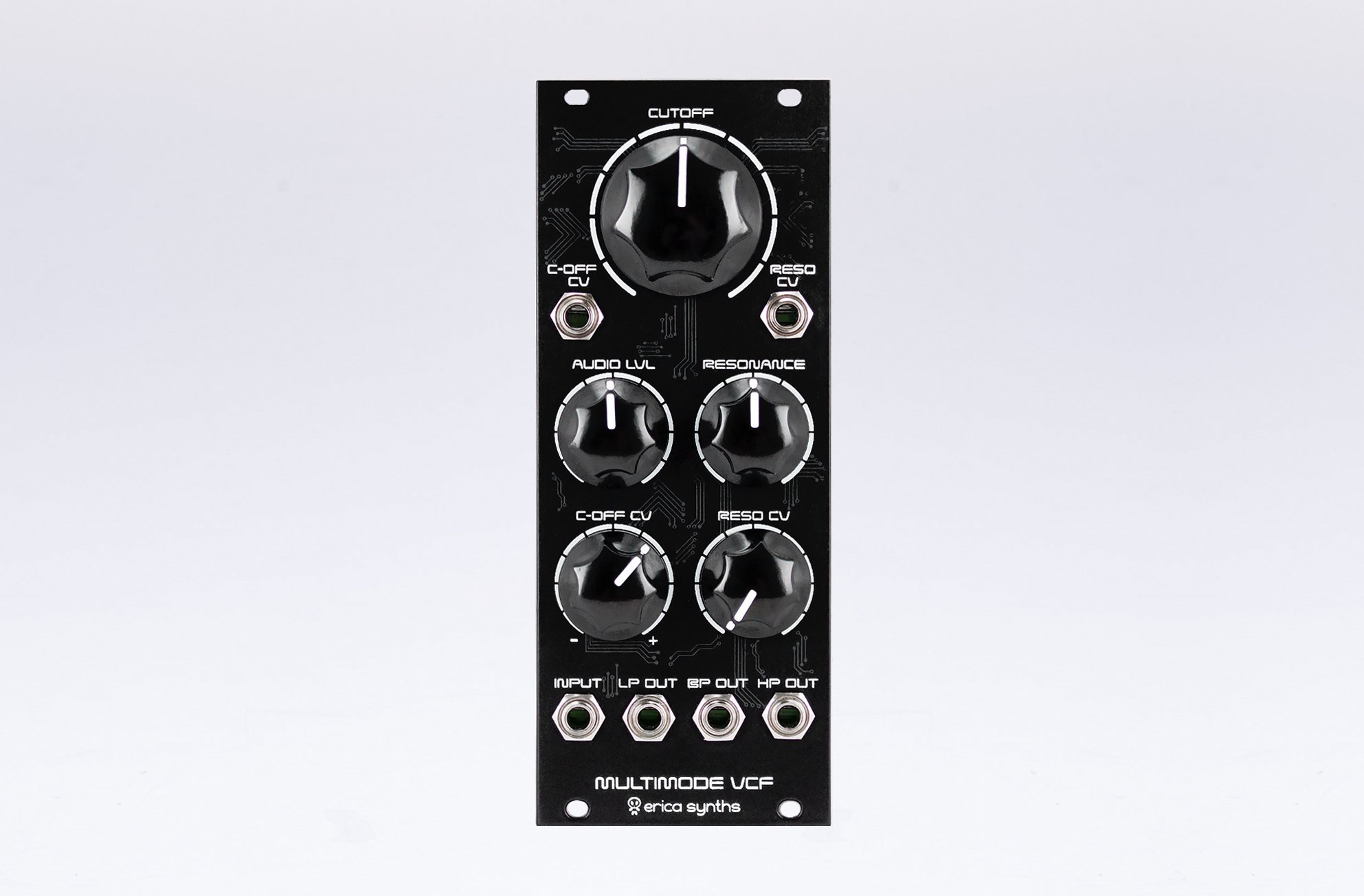

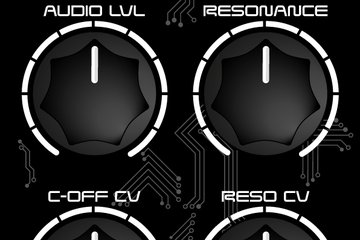

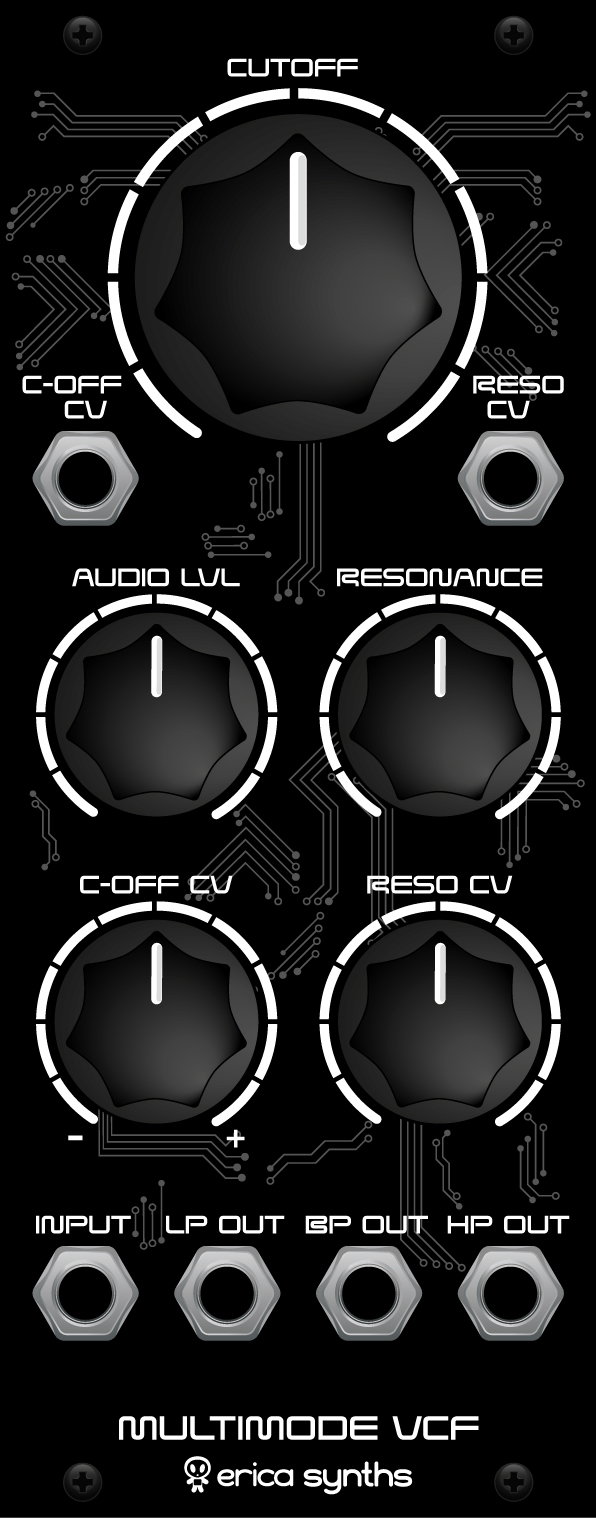

Erica Synths DIY Multimode VCF is a multimode filter with a CV control over cutoff and resonance and simultaneous LP, BP and HP outputs for serious modular patches. The core of the VCF is a highly stable, custom multimode VCF chip AS3320 (produced in Riga, btw).
Features
- Simultaneous LP, BP and HP outputs
- CV control over cutoff and resonance
- Cutoff CV attenuverter
- Volume drop compensation, as resonance is increased
- High temperature stability
- Skiff-friendly design
Technical specifications:
| Audio input amplitude | 10Vptp |
| CV amplitude (full sweep) | -5V - +5V |
| Panel width | 10HP |
| Module depth | 35mm |
| Power consumption | 36mA@+12V, 36mA@-12V |
Effective January 1 2021 Erica Synths will not provide technical support for DIY projects. As all Erica Synths DIY Kits are now sold out, we offer them as opensource build projects on Github. If you have trouble with building any of Erica Synths DIY projects, please, for advice & support refer to forums & DIY community. All the rare components are available at largest DIY retailers or here.
Manuals book
-
Assembly Guide — May 8, 2018
Downloads cloud_download
-
BOM — May 8, 2018
-
Assembly documents — May 8, 2018
FAQ question_answer
-
I have a question about the Potentiometers 100k -> A log. or B linear ?Use A100k for audio level, the rest are B100k. However if all of them are B's it wont make a big difference.
