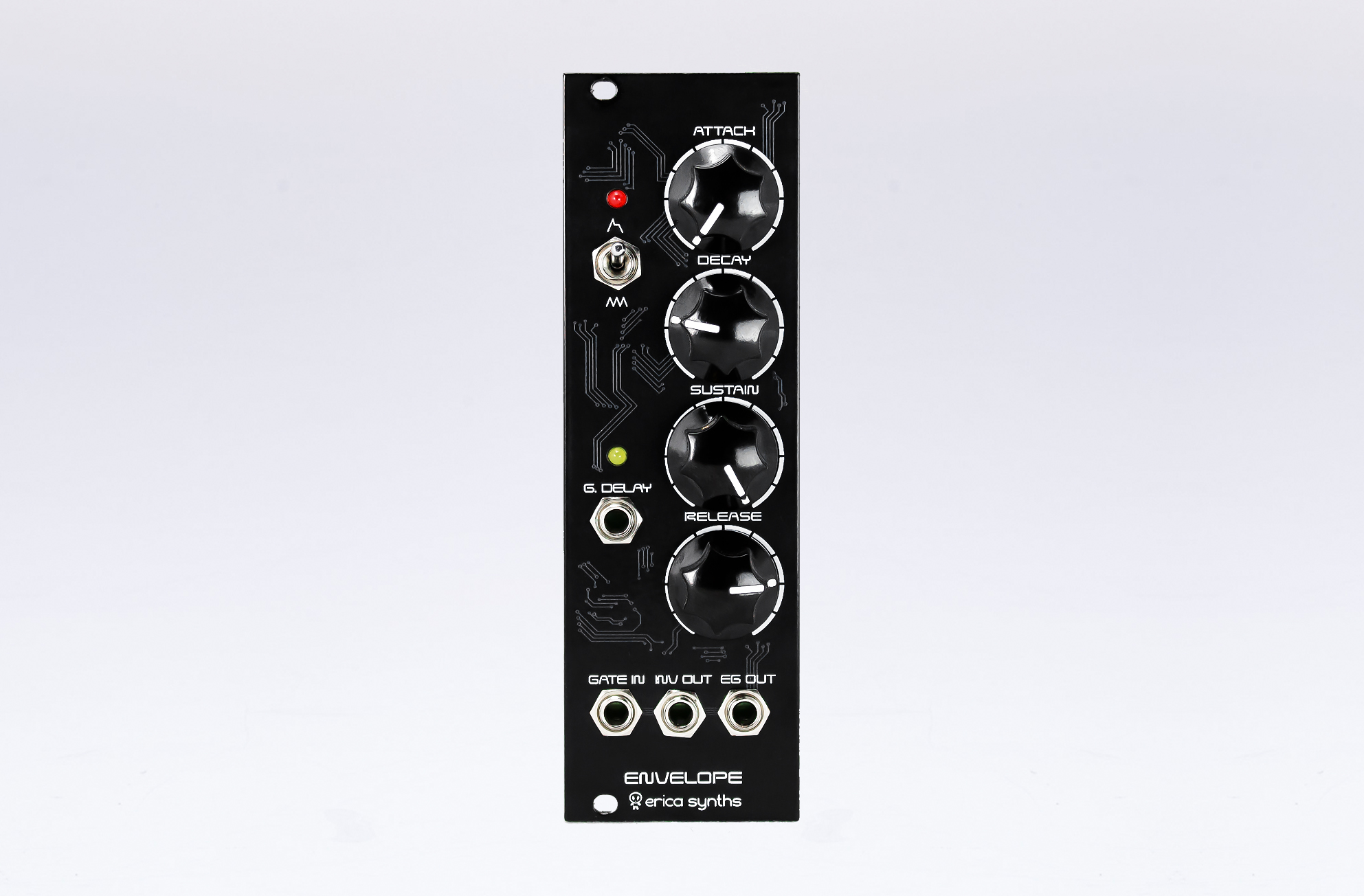

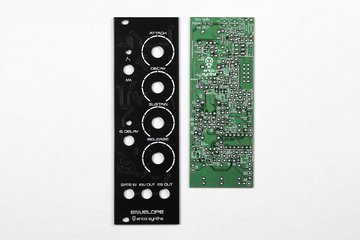

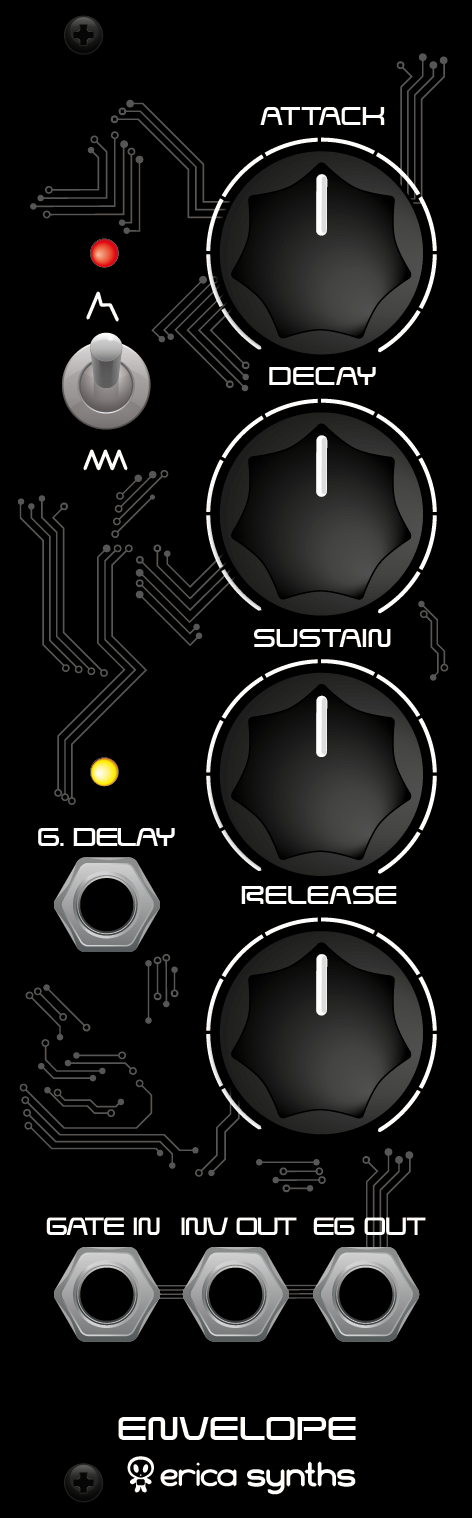

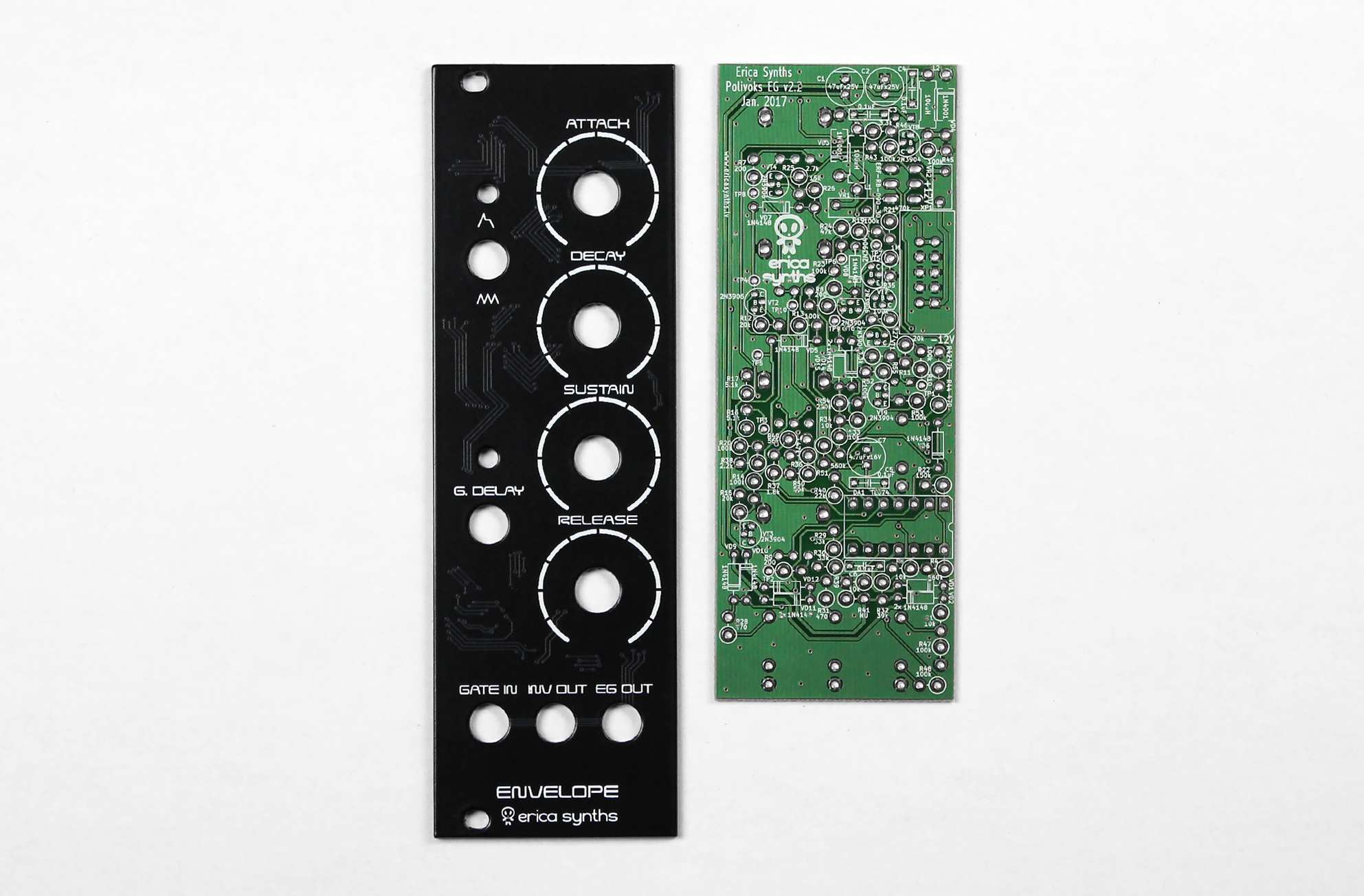

DIY Polivoks EG II

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty
The core of the Envelope Generator is borrowed from the famous Russian synth Polivoks.

Features

  • Full ADSR envelope
  • Direct and inverted envelope outputs
  • Gated and independent looping modes

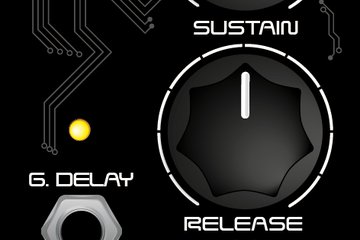

  • Gate delay (after Attack stage) output
  • Skiff-friendly design


We have significantly updated the schematics for this module - eurorack standard positive gates, envelope amplitude, inverted envelope output, looping feature (looping on gate on). Bonus feature Gate Delay – the module outputs delayed gate signal after Attack stage. Chain up several (4-5) Envelope Generators, each with delayed gate to create evolving polyphonic synth-like pads!



Technical specifications:

Envelope amplitude0…10V
Attack time0…3”
Decay time  0…12”
Sustain level0…10V
Release time0…12”
Power consumption23mA (+12V), 17mA (-12V)
Panel width8HP
Module depth30mm
Power consumption20mA@+12V, 10mA@-12V



Effective January 1 2021 Erica Synths will not provide technical support for DIY projects. As all Erica Synths DIY Kits are now sold out, we offer them as opensource build projects on Github. If you have trouble with building any of Erica Synths DIY projects, please, for advice & support refer to forums & DIY community. All the rare components are available at largest DIY retailers or here.
