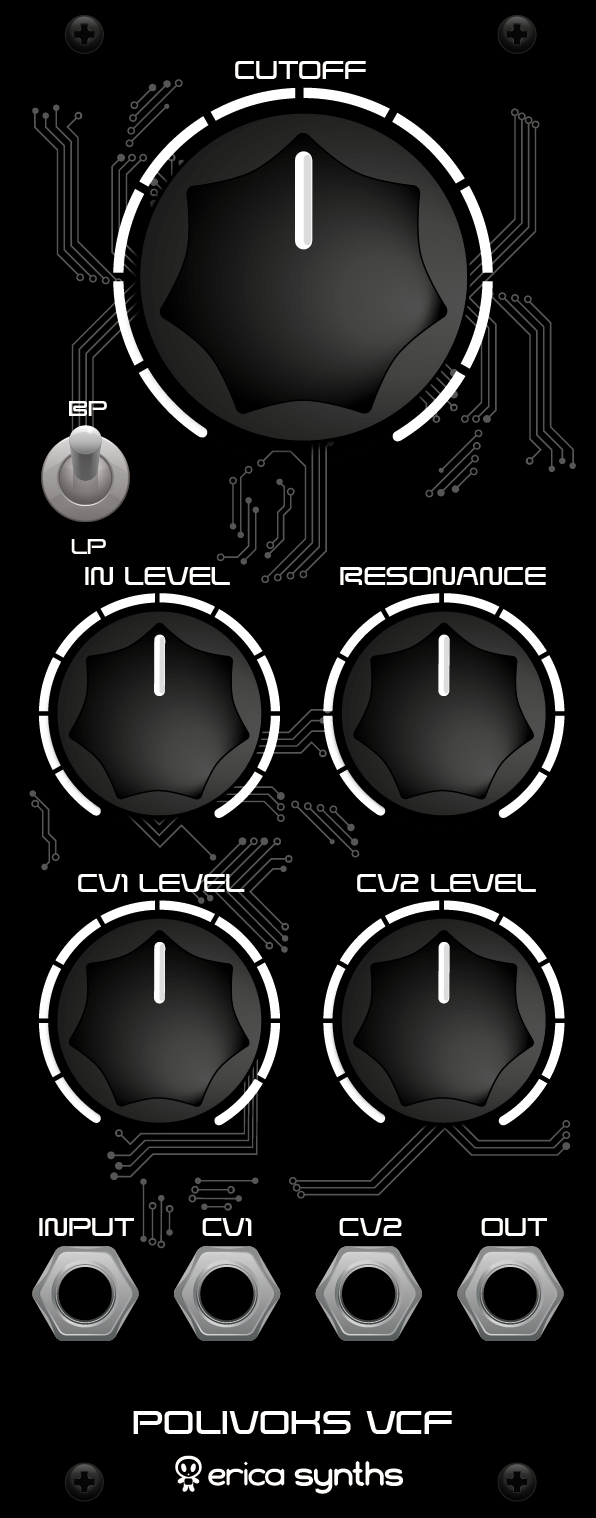

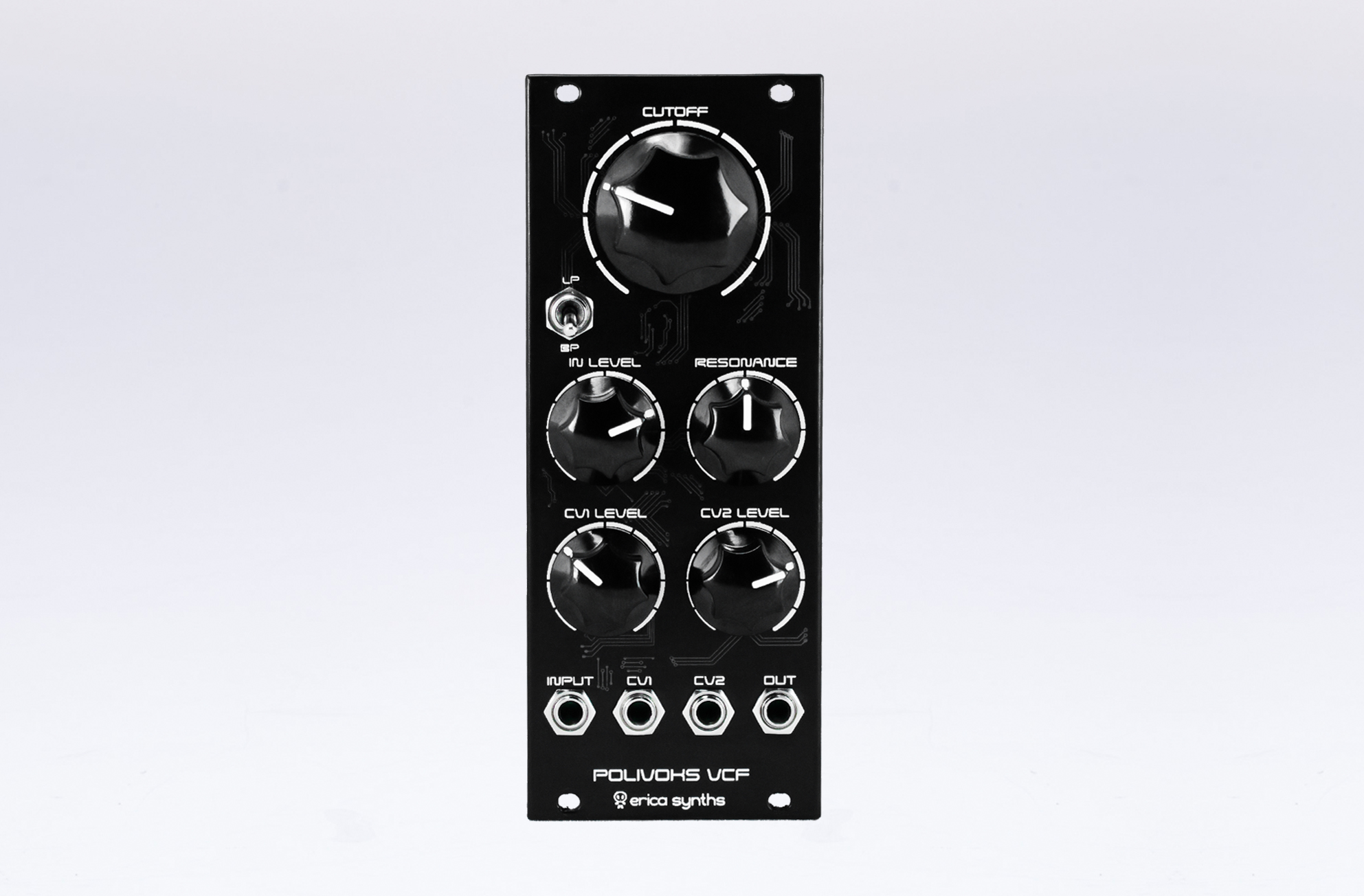

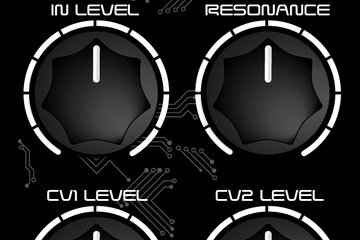

DIY Polivoks VCF II
- local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
- account_balance_wallet Pay securely with Credit Card or PayPal
- beach_access 24 month warranty
Features
- Switchable BP/LP modes
- Inputs/outputs are protected against over-voltage
- Protection on reversed power supply
- Skiff friendly design

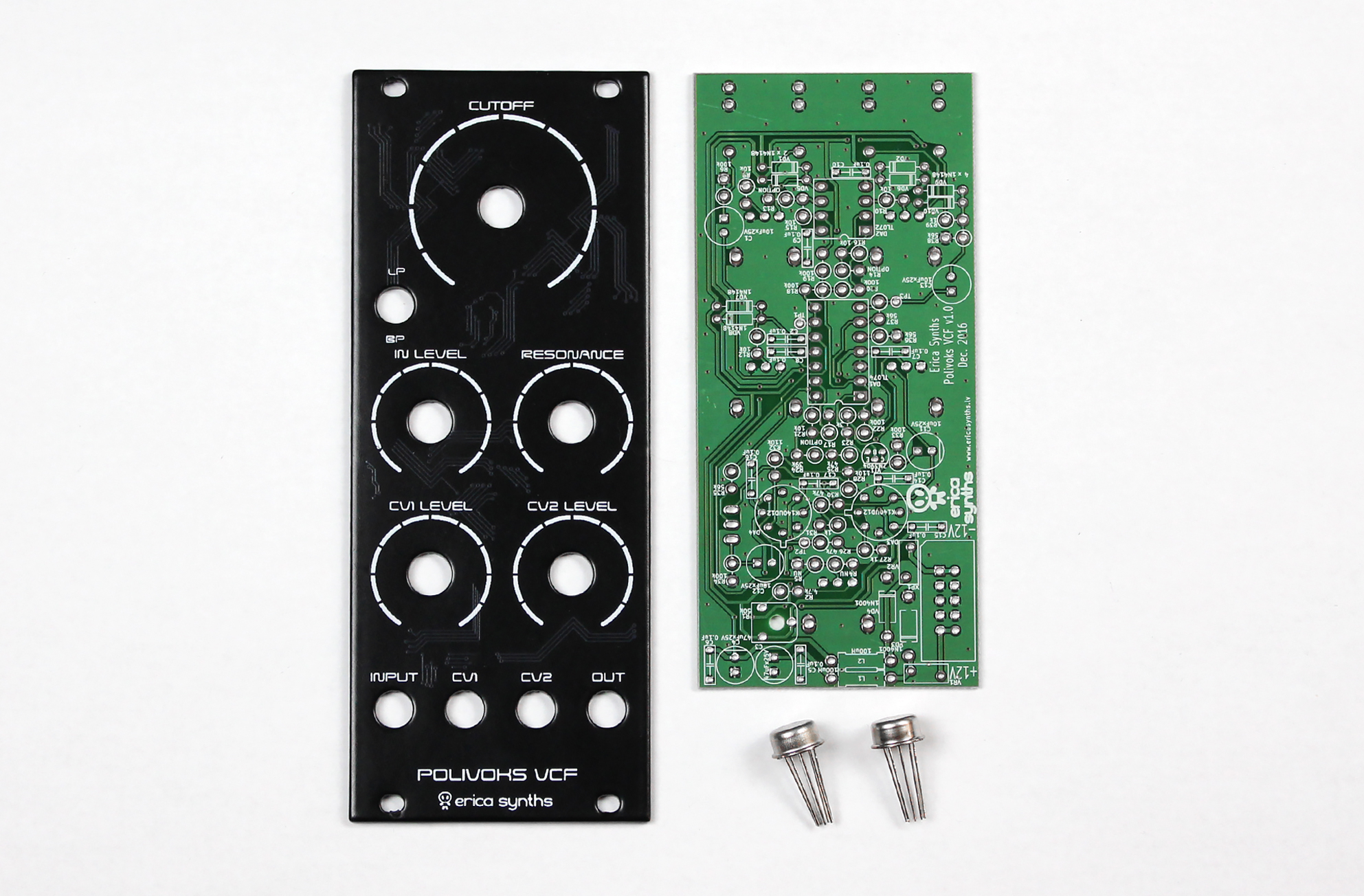

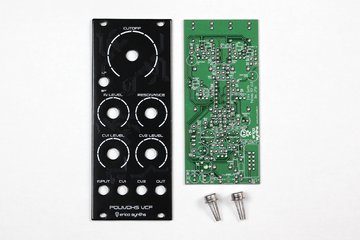

We believe that this is one of the most authentic sounding emulations of the famous Russian synth Polivoks VCF that are available out there. The original Russian ICs K140UD12 are used in the sound circuit, but we also did several updates to adapt the VCF for contemporary modular synth demands. Independently buffered inputs, extended Cutoff knob range, eliminated clicks, when switching filter modes, and output stage added to eliminate signal inversion.
Technical specifications:
Input level | up to 20Vptp |
CV input level | -10V - +10V |
Filter modes | BP(6dB/oct)/LP(12dB/oct) |
Module width | 10HP |
Module depth | 30mm |
Power consumption | 11mA@+12V, 11mA@-12V |
Effective January 1 2021 Erica Synths will not provide technical support for DIY projects. As all Erica Synths DIY Kits are now sold out, we offer them as opensource build projects on Github. If you have trouble with building any of Erica Synths DIY projects, please, for advice & support refer to forums & DIY community. All the rare components are available at largest DIY retailers or here.
Manuals book
-
Assembly Guide — June 7, 2019
Downloads cloud_download
-
Assembly documents — May 8, 2018
-
Schematics — May 8, 2018
-
BOM — May 8, 2018
-
Component placement — May 8, 2018
