DIY SWAMP

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty

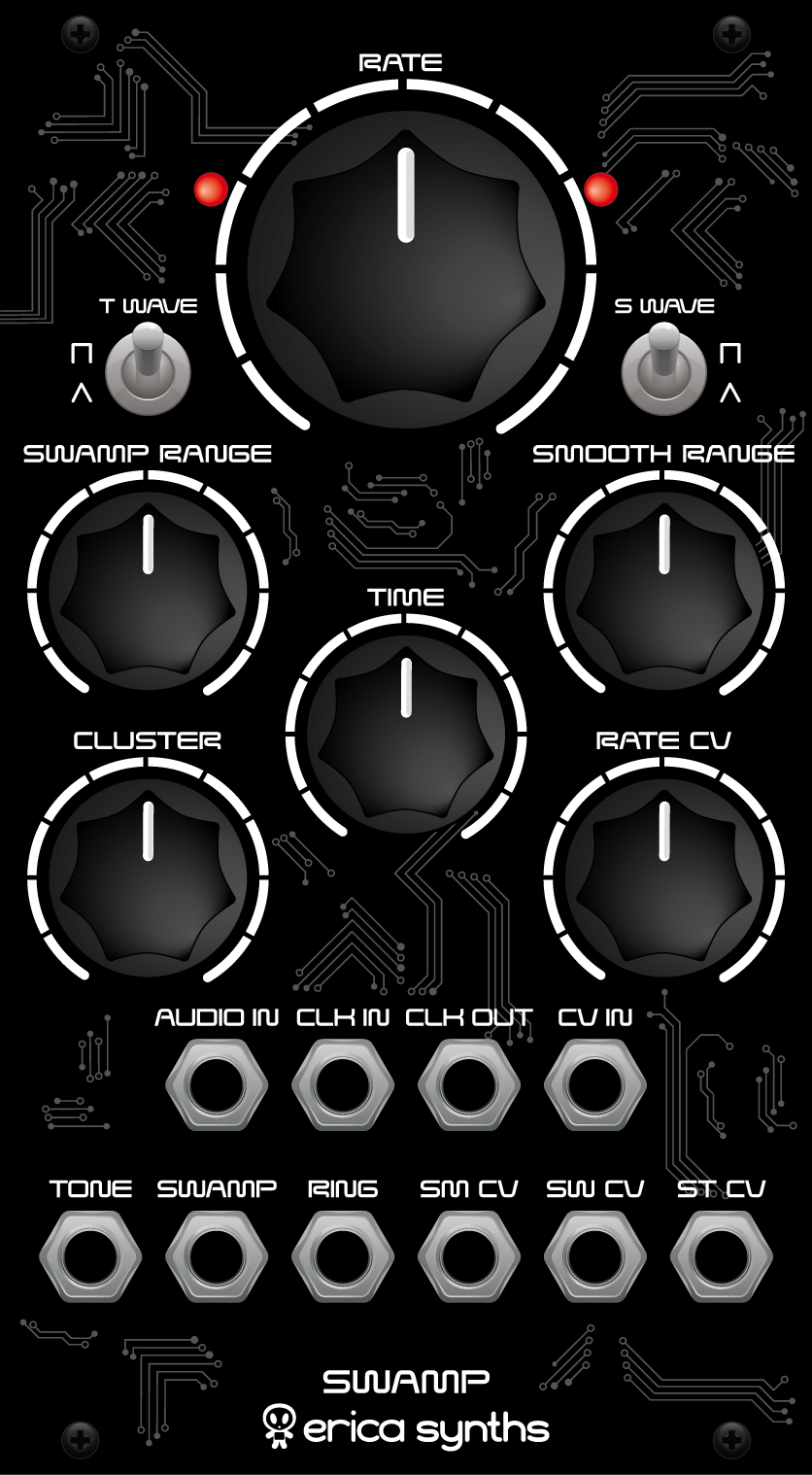

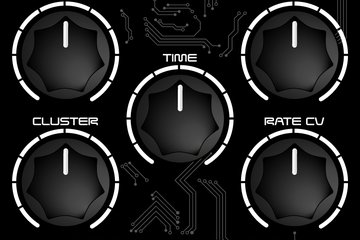

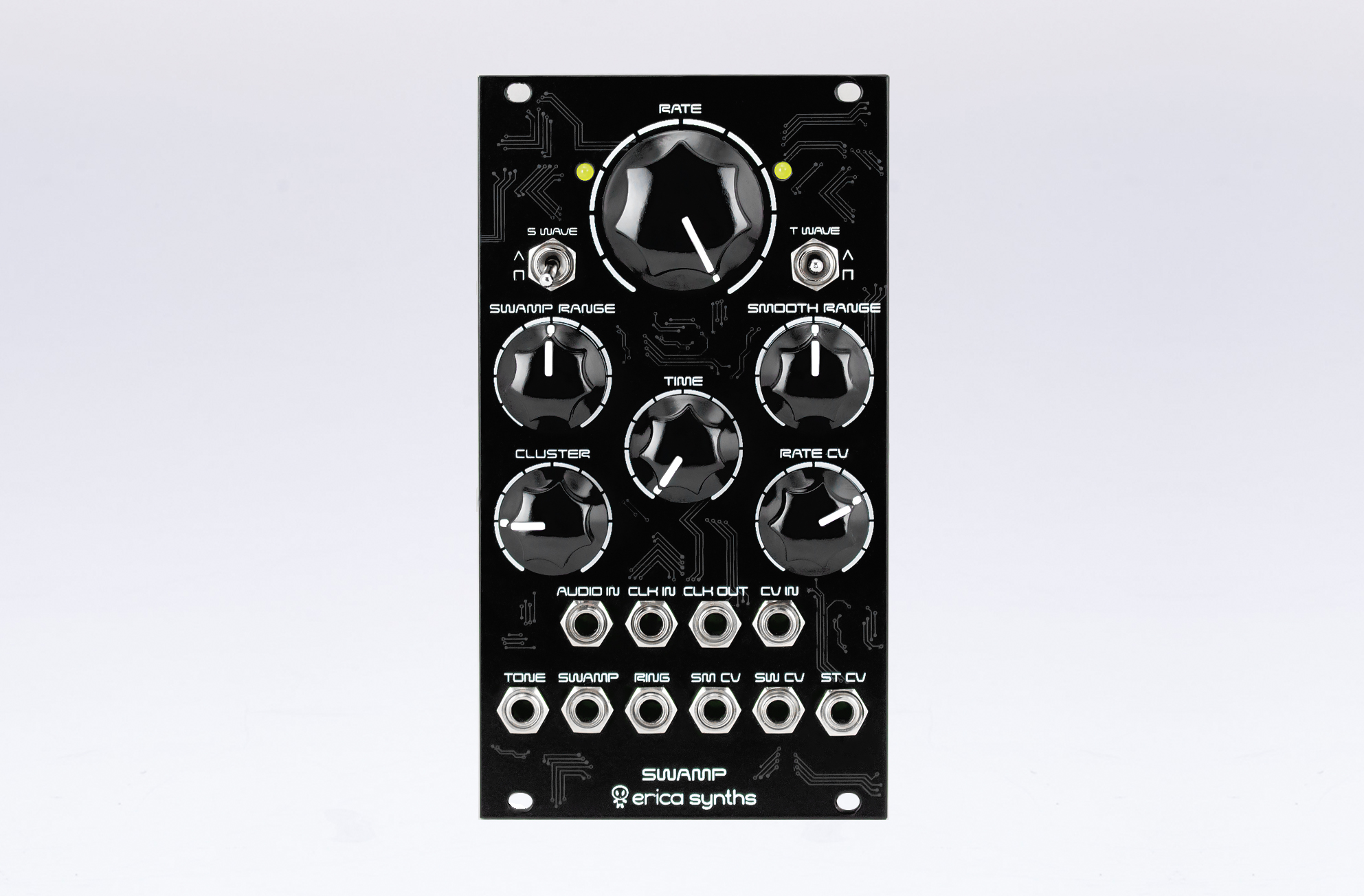

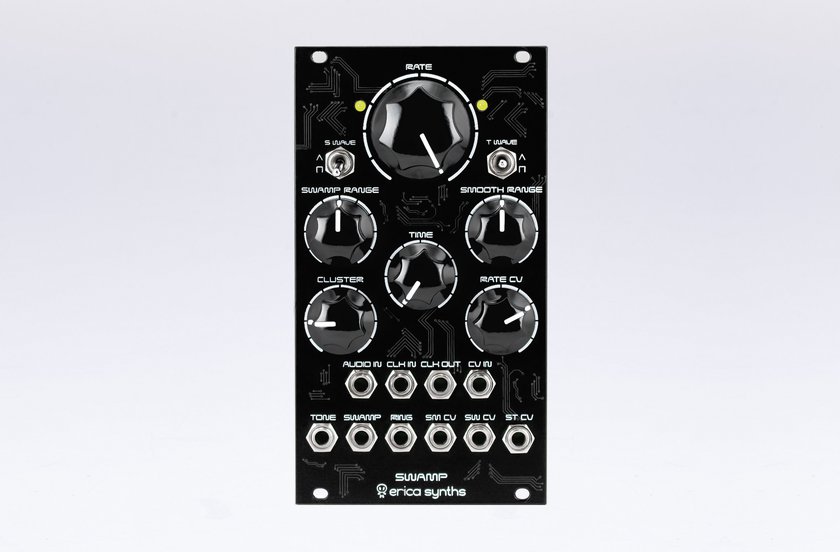

The SWAMP is a random CV and audio generator inspired by the famous Wiard Wogglebug module; it’s often the heart of self-generating patches and brings controllable randomness to your modular system.

Features

  • Three random audio frequency outputs
  • External audio input routed to ring modulator
  • Three random CV outputs
  • Clock input and output to sync the module to your modular system
  • CV control over internal clock for even more extreme randomness
  • Skiff-friendly design


In the SWAMP module we introduced numerous modifications and improvements to extend the potentiometer range, added an audio input, which, when connected, replaces the internal Tone oscillator, replaced the expensive dual vactrol, built S&H circuit around the made in Riga S&H IC AS1100CK2, added audio waveform selection switches, CV output configuration jumpers and much more.



Technical specifications:

Audio output amplitude•10Vptp
CV output amplitude0-10V or -5V - +5V
Panel width14HP
Module depth35mm
Power consumption60mA (max)@+12V,   39mA@-12V



Effective January 1 2021 Erica Synths will not provide technical support for DIY projects. As all Erica Synths DIY Kits are now sold out, we offer them as opensource build projects on Github. If you have trouble with building any of Erica Synths DIY projects, please, for advice & support refer to forums & DIY community. All the rare components are available at largest DIY retailers or here.
