DIY Synth Voice

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty

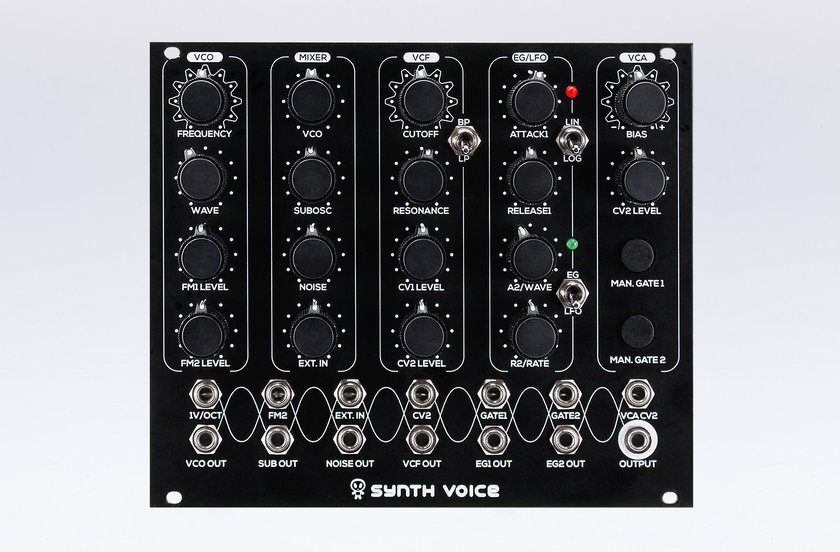

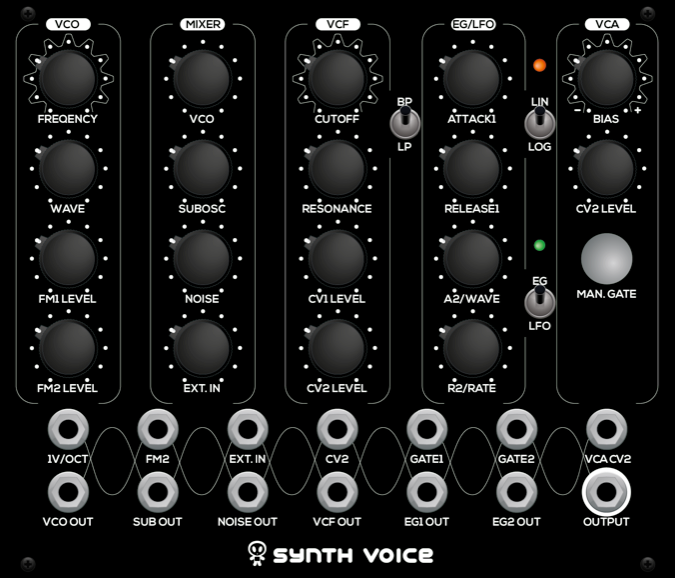

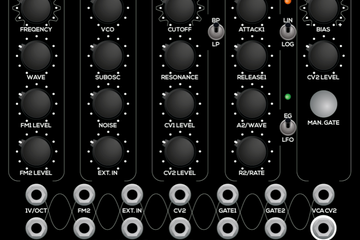

Erica Synths DIY Synth Voice consists of all essential blocks for a versatile monosynth and is 100% patchable for even more controll options.

Features

  • VCO with 16 waves and manual wave morphing
  • -1 oct suboscillator
  • White noise generator
  • External audio input
  • Audio Mixer
  • LP/BP VCF inspired by Black Polivoks VCF
  • Lin/log ASR envelope generator with looping function
  • Lin ASR EG/LFO with looping function
  • 9 LFO waves with wave morphing
  • Tap tempo and LFO sync
  • LFO frequency multiplication (x2, x4) and division (/2, /4) in sync mode
  • VCA with bias control
  • Auto callibration for better 1V/oct tuning

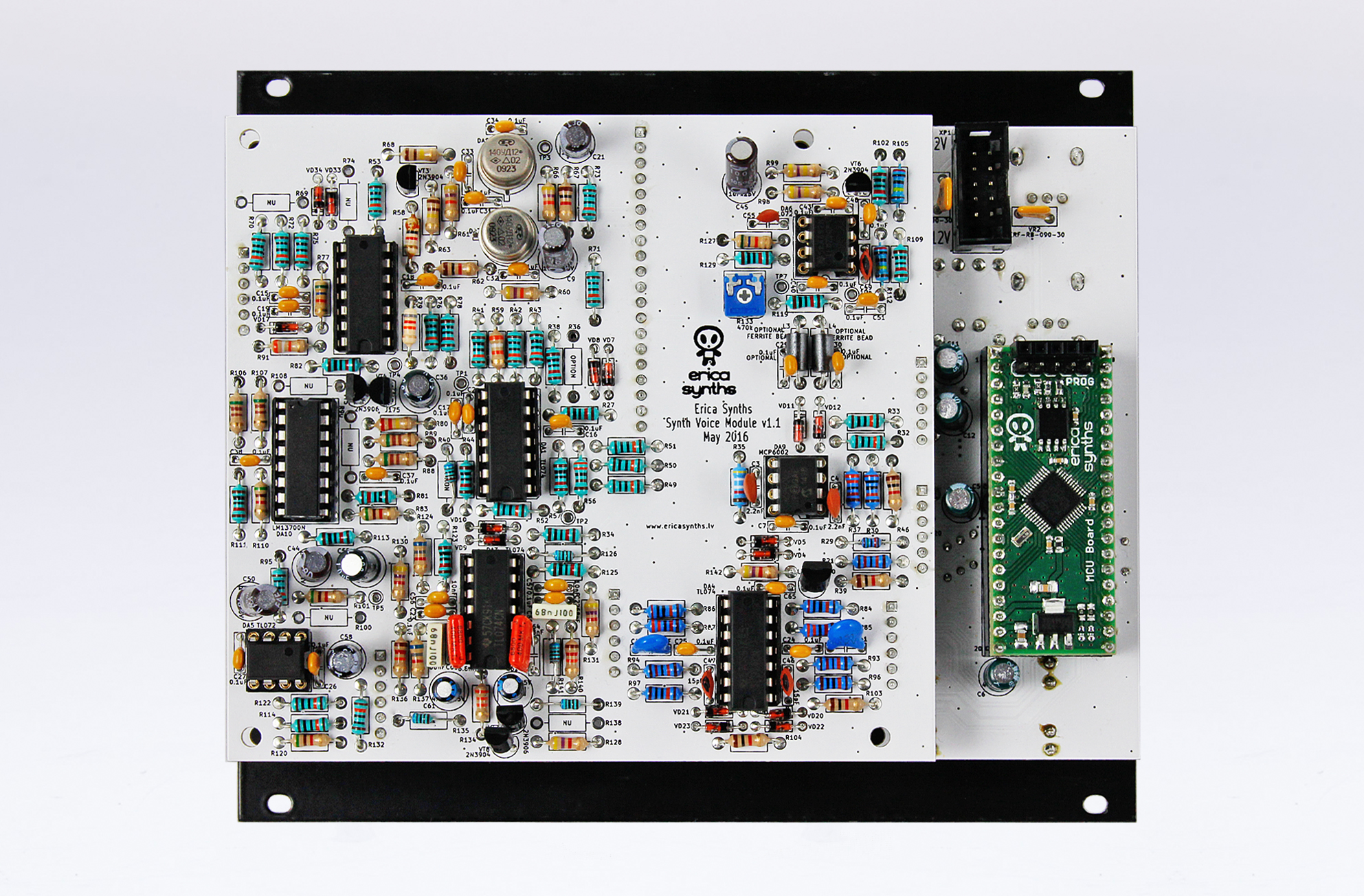

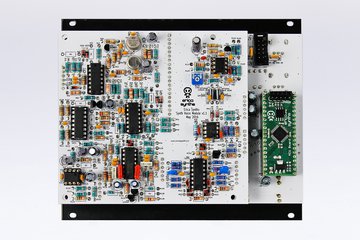

When developing Erica Black Series and Pico Series modules, we accumulated quite a lot of know-how on compact and great sounding designs, so we decided to share some of it with the DIY community, therefore Erica Synths proudly presents – DIY Synth Voice module! In order to make the module more compact and reliable in tuning, it has digital/analogue design. VCO and envelope generators/LFOs are digital, other parts are analogue. Digital parts are designed arround pre-programmed MCU board, which comes with a kit presoldered on a small contoller board. Chain up several Erica Synths DIY Synth Voice modules and you have a versatile polysynth!



Technical specifications:

VCO rangeC1 –​ C8
Audio output signal level10V ptp
LFO Ouput signal level-5V – +5V
EG Ouput signal level0V – +10V
EG1 attack time0 –​ 500ms
EG1 release time0 –​ 2"
EG2 attack time0 –​ 500ms
EG2 release time0 –​ 1"
LFO Frequency0.1Hz –​ 70Hz
VCA attenuation level80dB
Power consumption82mA@+12V, 50mA@-12V
Module width30HP
Module depth35mm



Effective January 1 2021 Erica Synths will not provide technical support for DIY projects. As all Erica Synths DIY Kits are now sold out, we offer them as opensource build projects on Github. If you have trouble with building any of Erica Synths DIY projects, please, for advice & support refer to forums & DIY community. All the rare components are available at largest DIY retailers or here
