Eurorack bipolar 12V PSU kit V2

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty
Erica Synths DIY eurorack PSU module is a high quality linear PSU with resettable fuses on each rail to protect the PSU from overloads.

It comes in two versions:

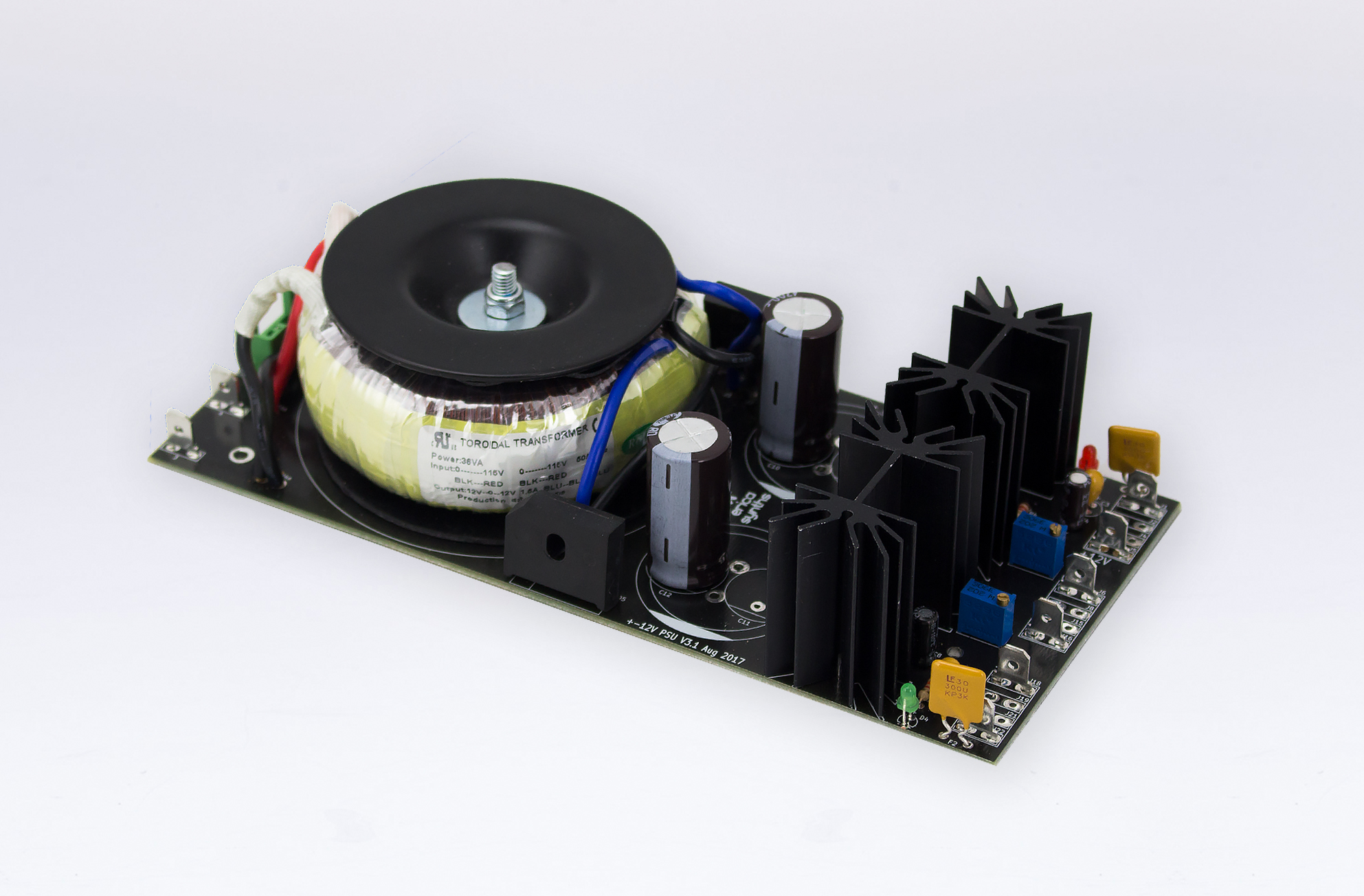

1) 1,25A on each +12V and -12V rail. This version uses highly popular LM317 and LM337 voltage regulators

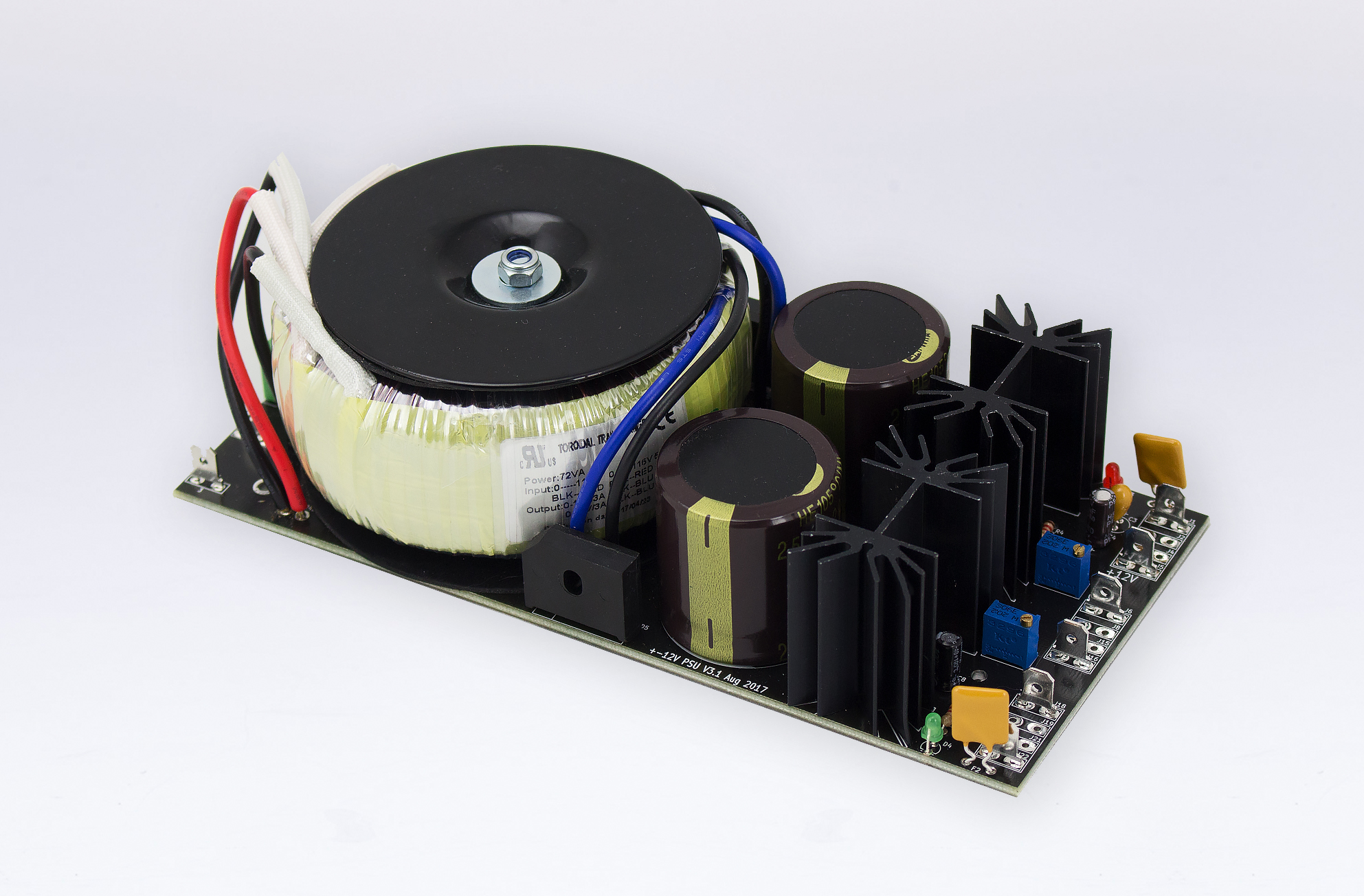

2) 2,5A on each +12V and -12V rail. This version uses more contemporary and powerful voltage regulators and it can be used in really large modular setups.

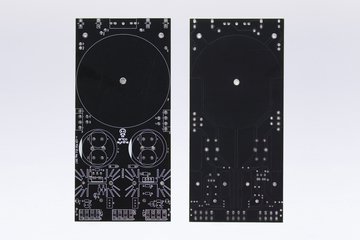

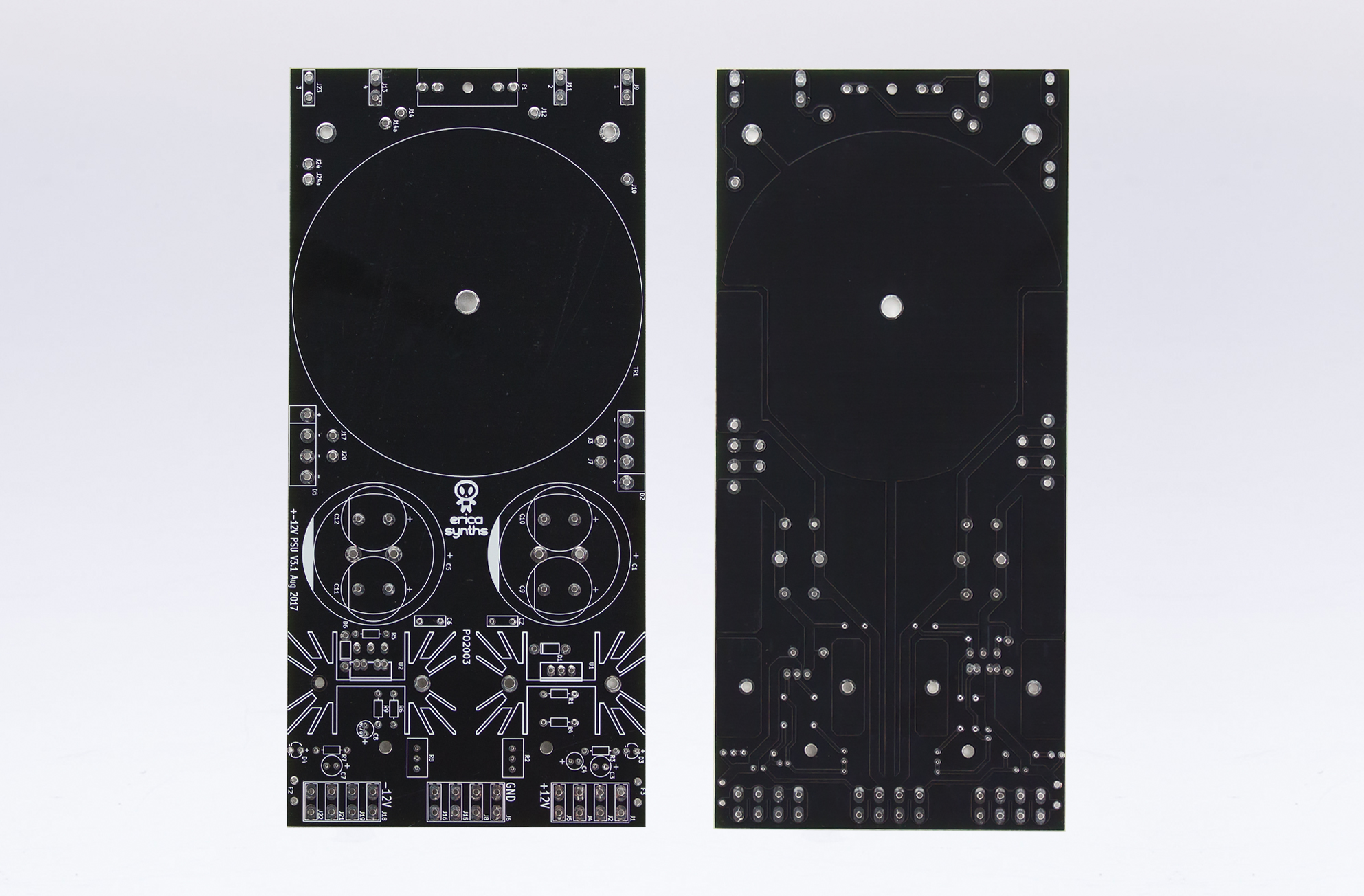

Both versions can be built on the same PCB, just check the schematics on components that need to be used for each configuration.

NB! Installation of this module require skills to work with high voltages! It's at your own risk!


Shopping cart:

DIY PSU 1,25A @Mouser

DIY PSU 2,5A  @Mouser

+LT1085CT @Farnell

+LT1185CT @Farnell



Effective January 1 2021 Erica Synths will not provide technical support for DIY projects. As all Erica Synths DIY Kits are now sold out, we offer them as opensource build projects on Github. If you have trouble with building any of Erica Synths DIY projects, please, for advice & support refer to forums & DIY community. All the rare components are available at largest DIY retailers or here.
