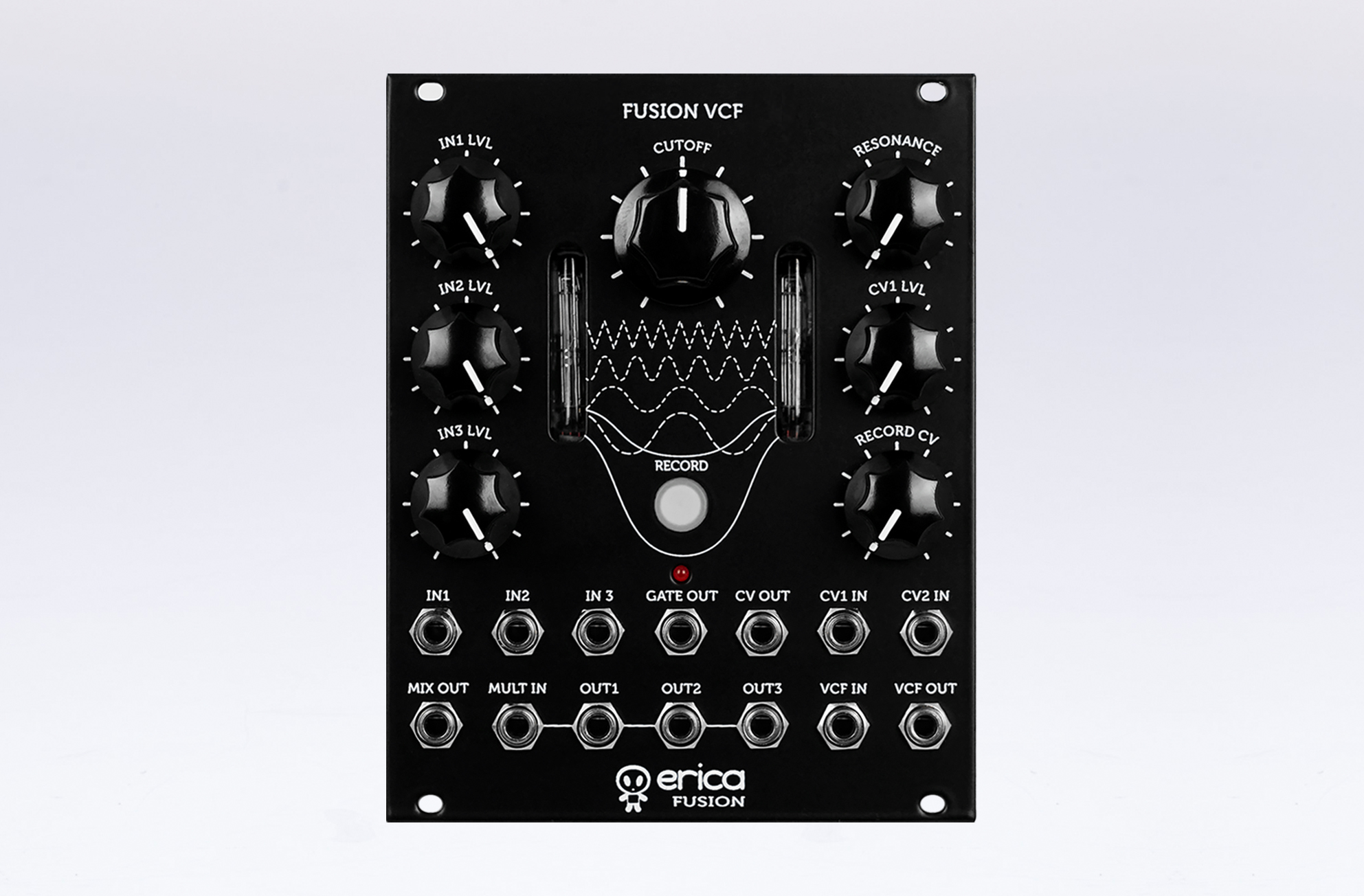

Fusion VCF3
EAN:
4751030826738
Manufacturer:
Erica Synths
Worldwide delivery with UPS and Fedex
Pay securely with Credit Card or PayPal
24 month warranty
Short Description
The Fusion VCF3 is resonant 24dB/oct lowpass filter of unique design that combines vacuum tubes and vactrols, providing distinct, soft filtering. For more versatility, the independent audio mixer and buffered multiple is incorporated in the module, and, most importantly – a CV recorder that records motion of the potentiometer, so you can design advanced modulation patterns.
Read More
Shipping & Taxes
EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
Manual
Returns Policy
Warranty
Got questions?
Guides and answers to frequently asked questions.
Go To Support
Product Description
Technical Specifications:
| Filter slope | 24dB/oct |
| Audio Input level | 10Vptp |
| CV input level | -5V - +5V |
| CV Output level | 0V - +5V |
| Panel width | 20HP |
| Module depth | 36mm |
| Power consumption | 81mA@+12V, 76mA@-12V |
Product Highlights
Product Features
- Full analogue design
- Vacuum tube and vactrol based filter circuit. Because of vactrol lag,
the VCF will not accept audio rate modulation, the maximum
modulation frequency is 10Hz - Input signal mixer with gain 2 for signal overdrive
- Buffered multiple for splitting audio and CV signals
- Potentiometer motion record unit with CV and gate outputs
- Recorded CV multiplication and division
