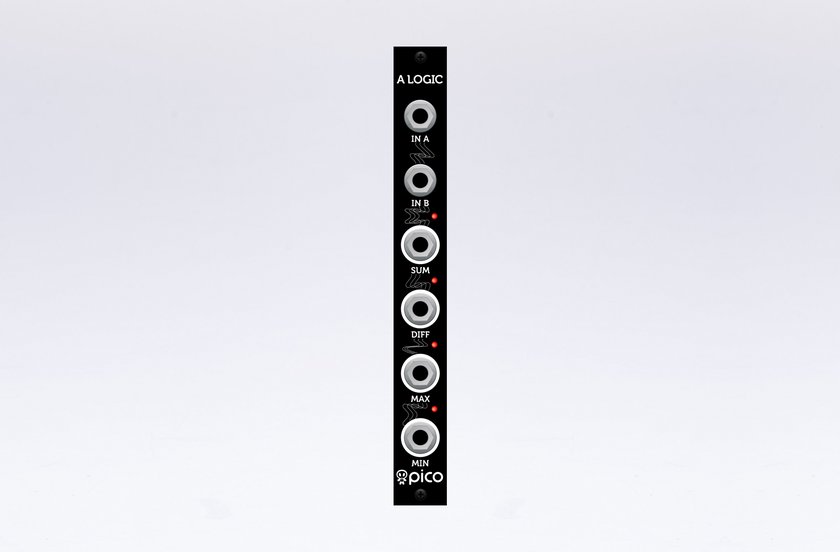

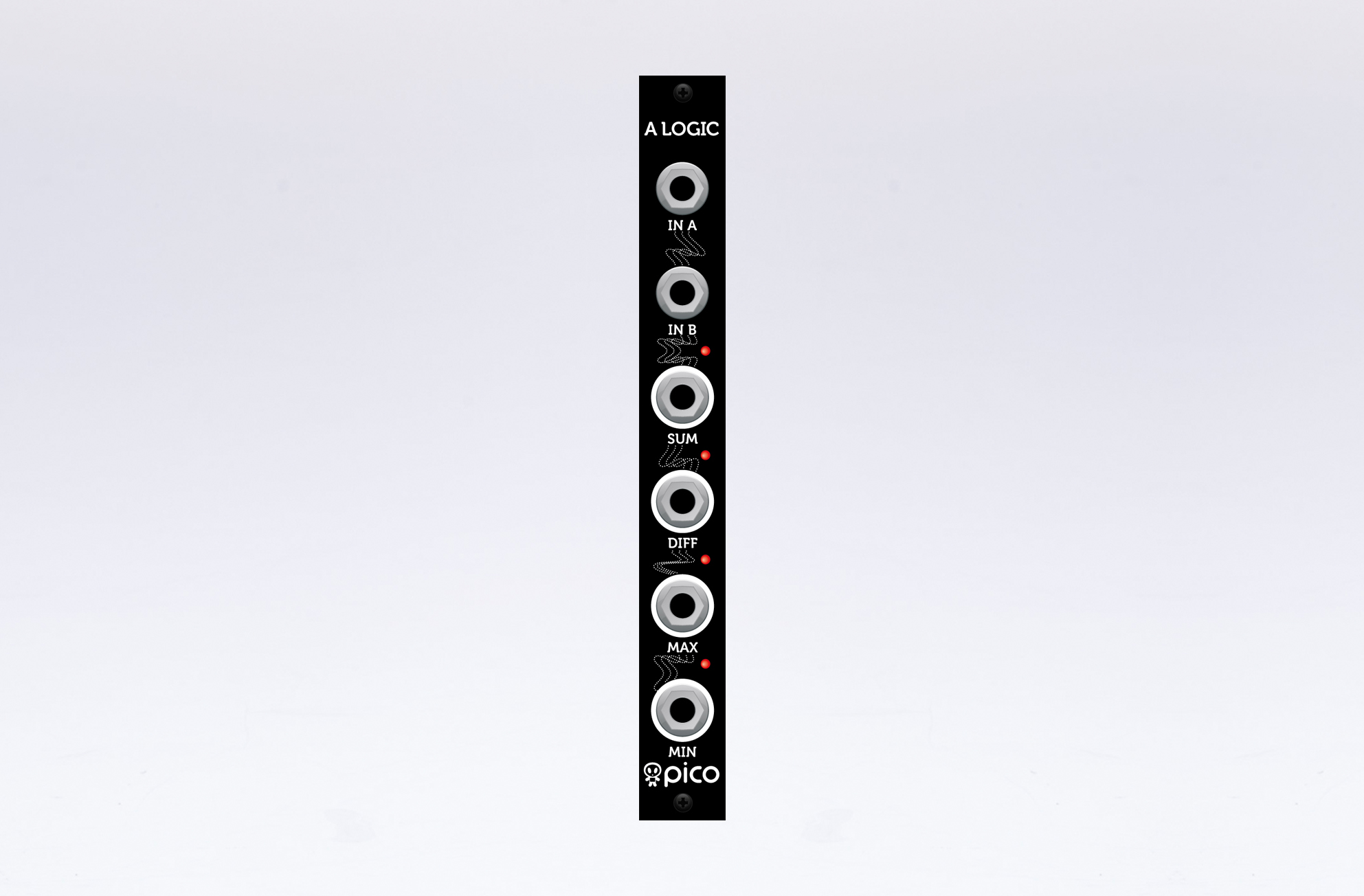

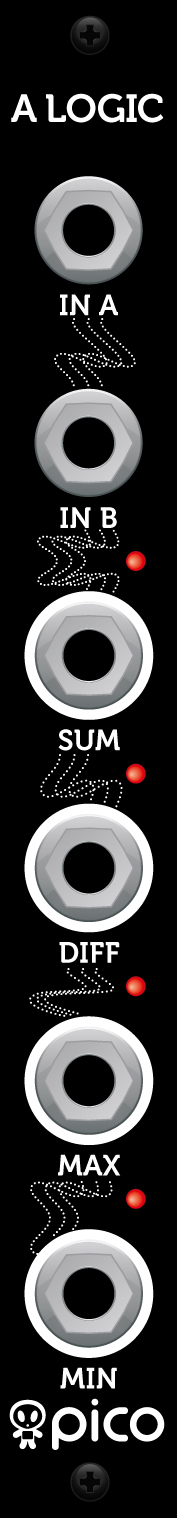

Erica Synths Pico A LOGIC module is our CERN Hadron Collider for CVs! It takes two incoming CVs and outputs momentary SUM and DIFFERENCE of both CVs as well as follows curves MAXIMUM and MINIMUM values of both CVs.



  • 2 CV/audio inputs
  • Simultaneous outputs of sum, difference, maximum and minimum
  • levels of both inputs
  • 4 output signal control LEDs


You can try patching audio signals into both inputs and get distinct ringmodulation and waveshaping effects.

With Pico Series we challenged ourselves – can we make ANY superior functionality synth module 3HP wide and affordable? Yes, we can.

Technical specification:

Max input signal level-10V – +10V
Output levelup to -12V – +12V
Power consumption+22mA, -5mA
Module width3HP
Module depth35mm
