Pico Logic
EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
- local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
- account_balance_wallet Pay securely with Credit Card or PayPal
- beach_access 24 month warranty

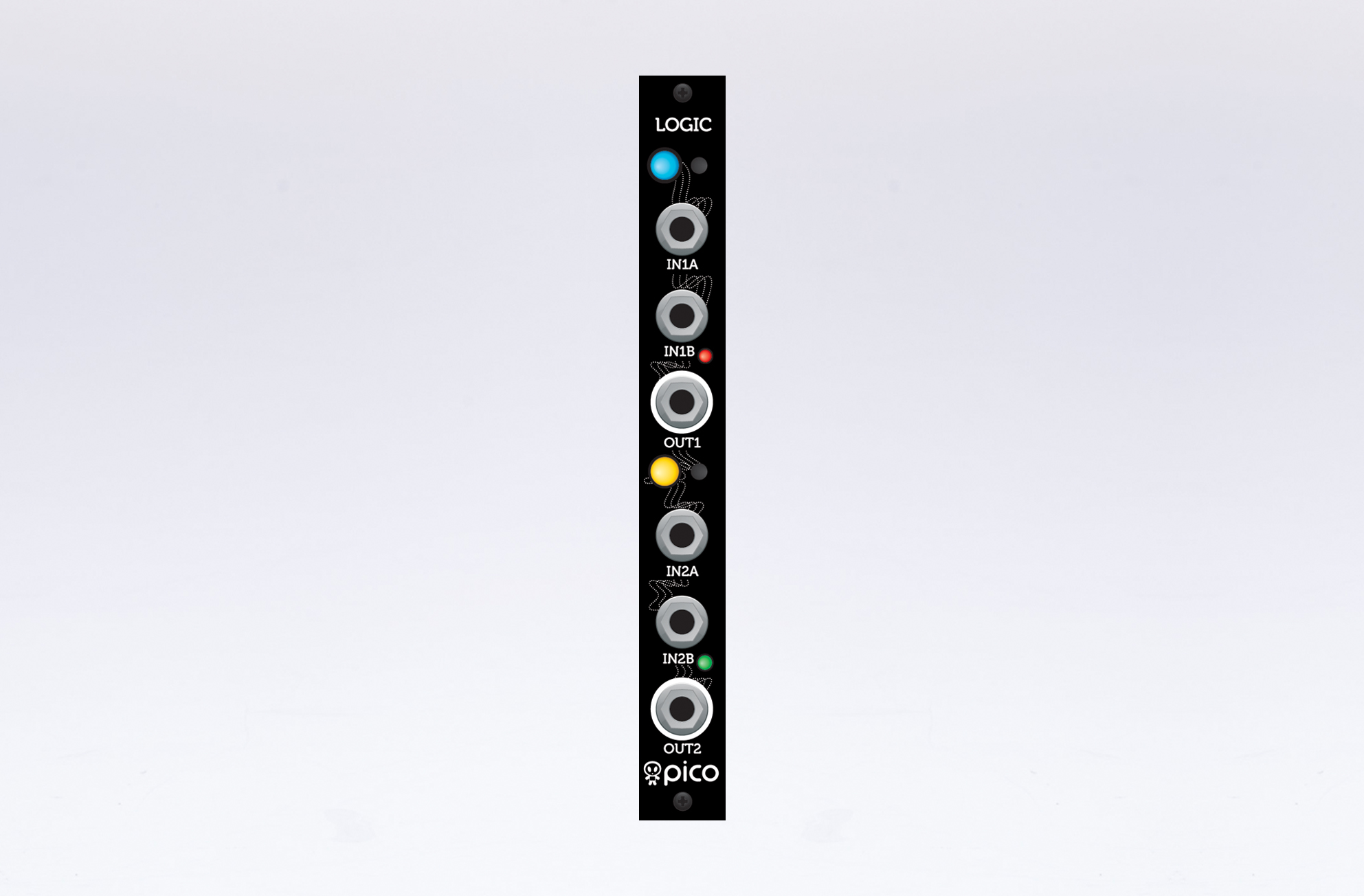

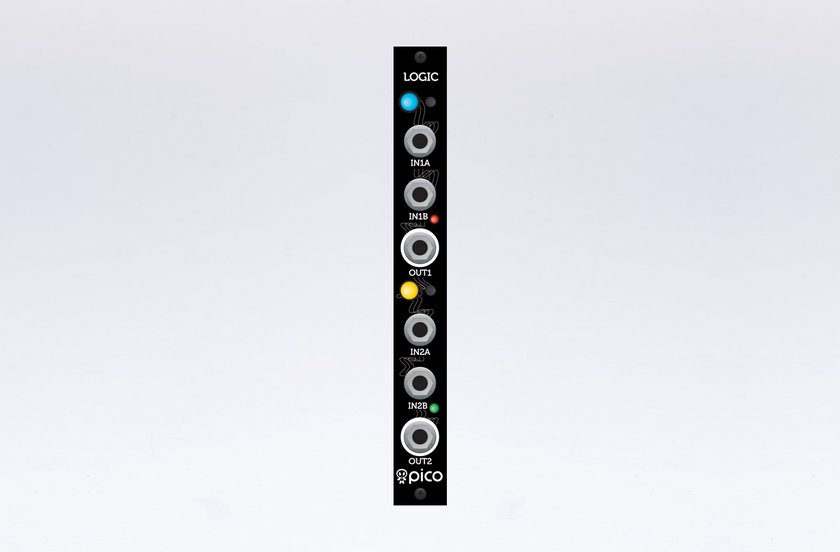

Erica Synths Pico LOGIC is a Boolean logic module that allows yout to manage several Gate signals in advanced ways.
Features
- 2 independent sections of 2xIN and OUT
- 8 logic algorithms in each sections
- Internal connection of inputs of both sections
- Mode indication via RGB LEDs
- Output signal status LEDs
As usual with Pico design concept, we managed to squeeze 2x8 logic algorithms in just 3HP module!
With Pico Series we challenged ourselves – can we make ANY superior functionality synth module 3HP wide and affordable? Yes, we can.
NB! Inputs does not work with stack-able cables.
Technical specification:
Max input signal
level |
10V |
Min input signal
level |
2.5V |
Output signal level |
0 or 5V |
Power consumption |
+22mA, -5mA |
Module width |
3HP |
Module depth |
35mm |
Erica Pico Logic on Modulargrid
Manuals book
-
User manual — July 10, 2018English
-
User manual — April 23, 2018Japanese
