DISCONTINUED PRODUCTS
Pico T→G
EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
- local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
- account_balance_wallet Pay securely with Credit Card or PayPal
- beach_access 24 month warranty

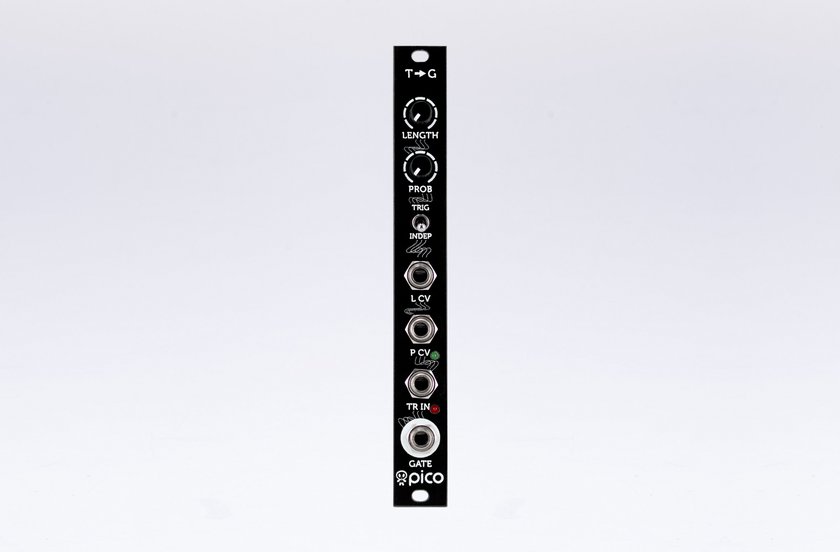

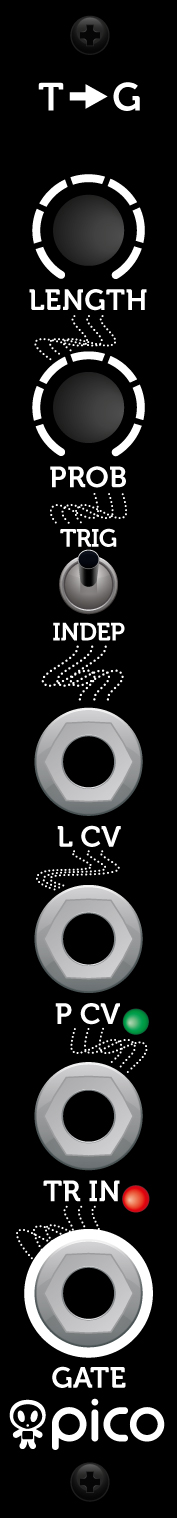

Erica Synths Pico Trigger to Gate module is one of the few modules around that converts triggers to gates using smart algorithms that enhance your musical compositions and rhythm patterns.
Features
- Manually and CV controlled gate length
- Manually and CV controlled gate skipping probability
- Triggered and Independent modes
- Incoming trigger in and output gate control LEDs
This module can turn a simple trigger sequencer into powerful musical pattern generator. The creation of this module was inspired by Ryoji Ikeda compositions.
With Pico Series we challenged ourselves – can we make ANY superior functionality synth module 3HP wide and affordable? Yes, we can.
Technical specification:
Incoming trigger
amplitude |
0V - +5V (max +10V) |
Min incoming trigger
length |
1ms |
Output gate amplitude |
0V - +5V |
Power consumption |
+14mA, -9mA |
Module width |
3HP |
Module depth |
35mm |
Erica Pico TG on Modulargrid
Manuals book
-
User manual — April 23, 2018English
-
User manual — April 23, 2018Japanese
