DISCONTINUED PRODUCTS

Sequential Switch V2

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty

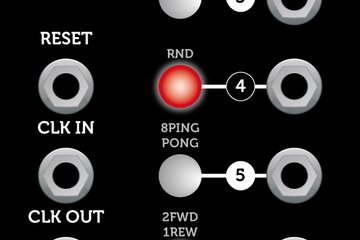

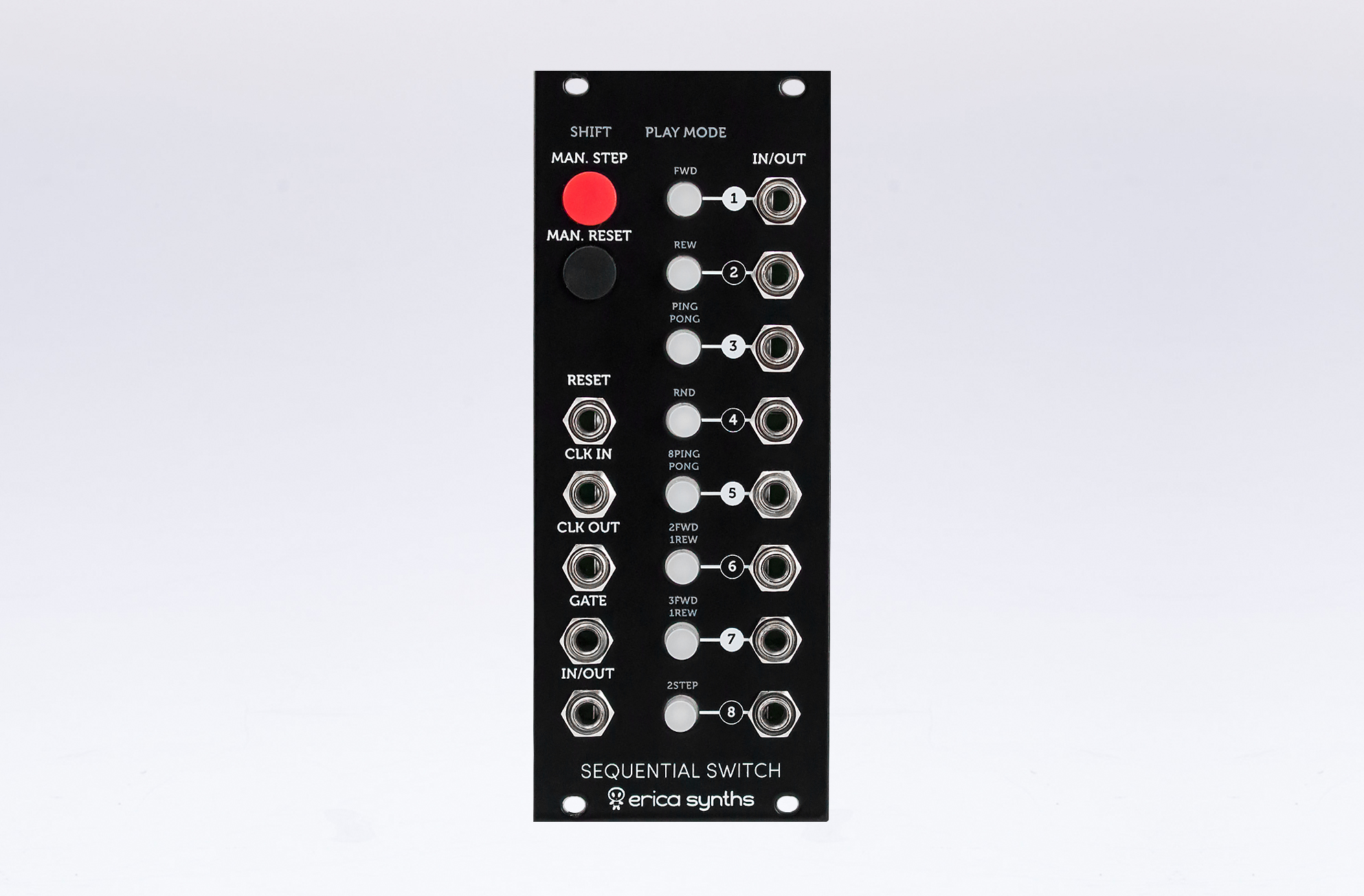

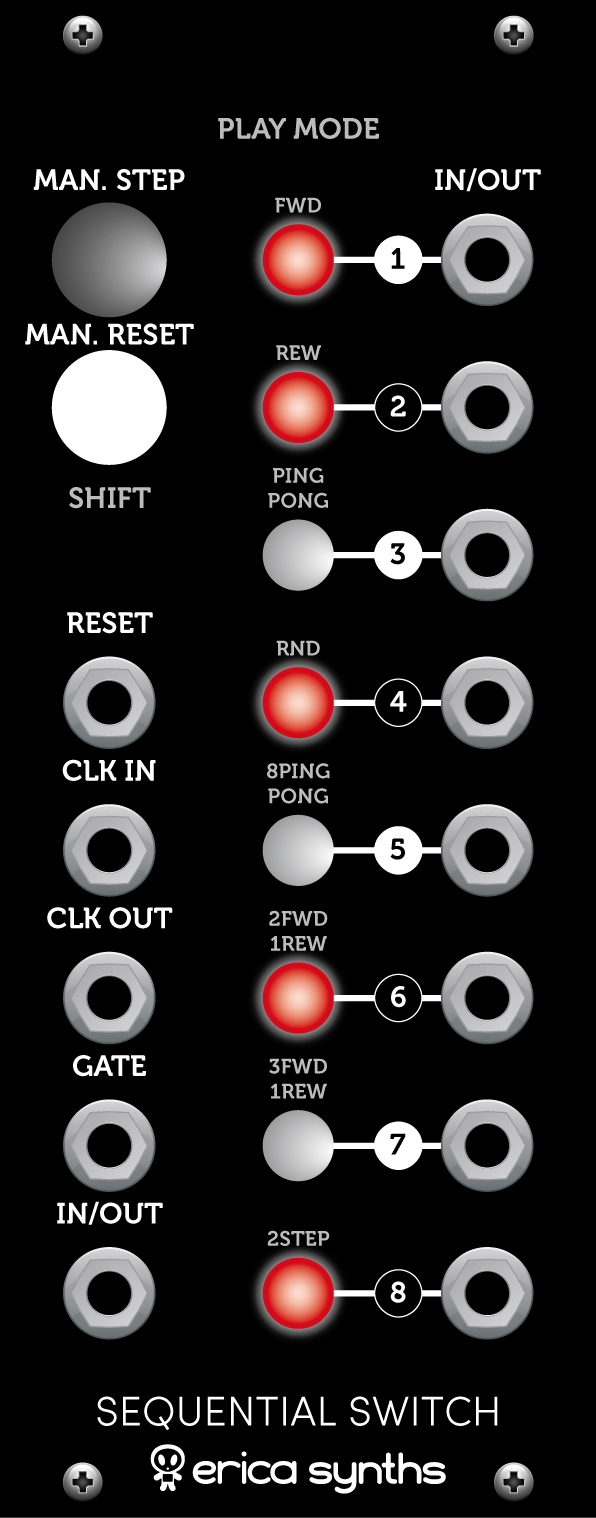

Erica Synths 8 channel Sequential Switch is a unique module that allows you to sequence up to eight sound sources in advanced ways or route one sound source sequentially to eight different sound modifiers – VCFs, waveshapers, VCAs, etc.

Features

  • 8 inputs/outputs sequentially routed to one input/output
  • Manual Step and Reset
  • Gate output (reacts on merged and paused steps)
  • 8 different play modes
  • Piano mode

Erica Synths Sequential Switch (SS) has unique control interface that allows you to pause, skip and merge steps and set sequence length, but what really sets it apart from other sequential switches is Gate output – when used with ADSR and VCA, you get a really powerful sequencer with real time control over each sound source in the sequence. Use Sequential Switch with random clock source and you get a heart of insane random, selfgenerating patches!

NB! Input signal level for SS should not exceed 20Vptp (that is a rare occasion in modular synths). Nothing bad will happen, but you will hear some unwanted signal on unused outputs.

Technical specifications:

Max input level

-10V - +10V

Power consumption

+50mA (all LEDs on), -13mA

Module width

10HP

Module depth

20mm


Sequential Switch v2 on Modulargrid

Demo by Danny Kim

Manuals book

You may also like

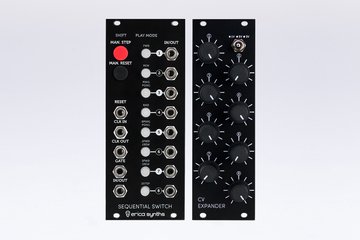

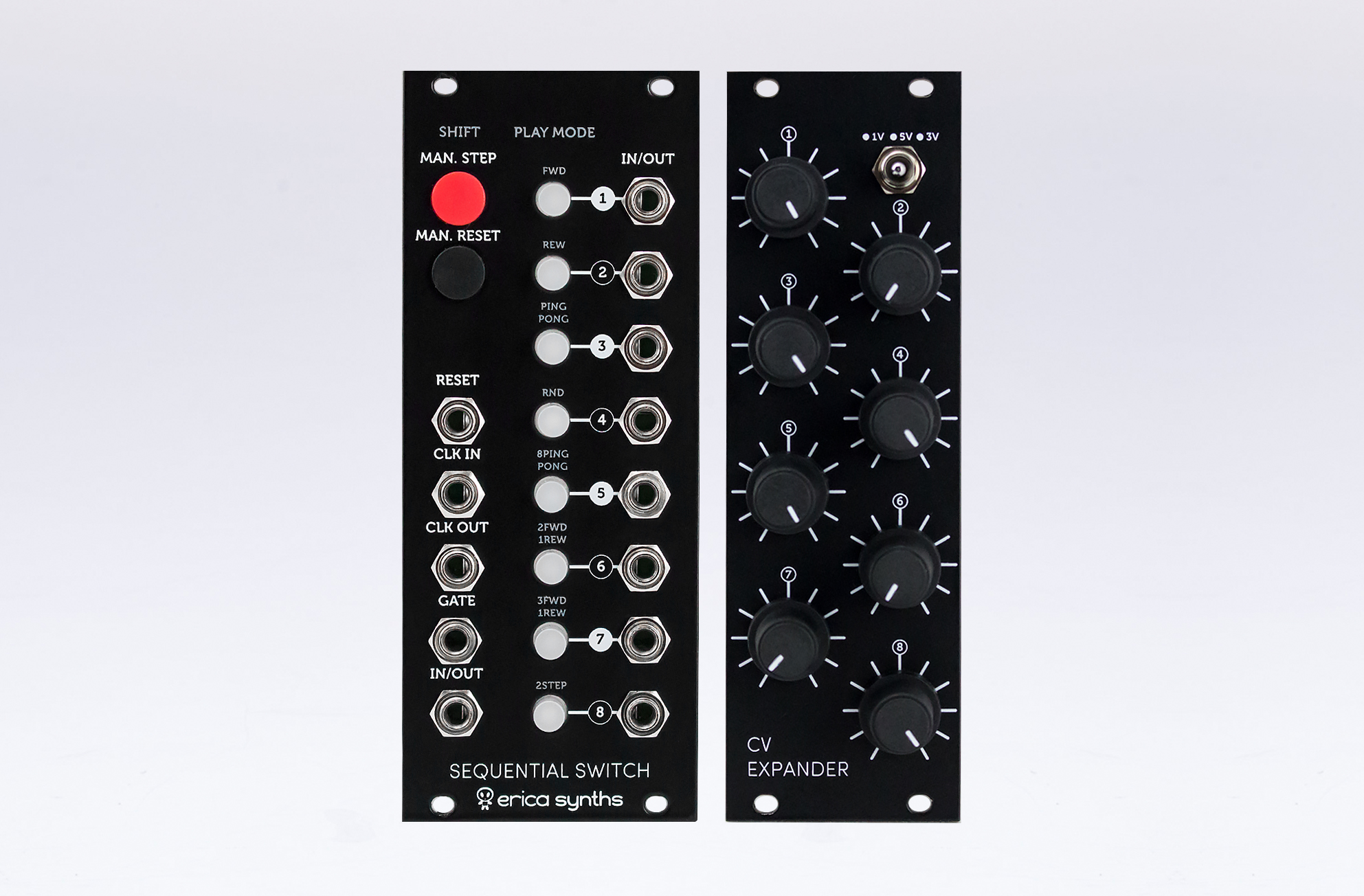

Sequential Switch CV Expander V2
Sequential Switch CV Expander V2

Erica Synths Sequential Switch CV Expander turns the Sequential Switch into a powerful CV/Gate sequencer, it connects to the Sequential Switch via ribbon cable supplied with a module.

€ 0.00
out of stock
