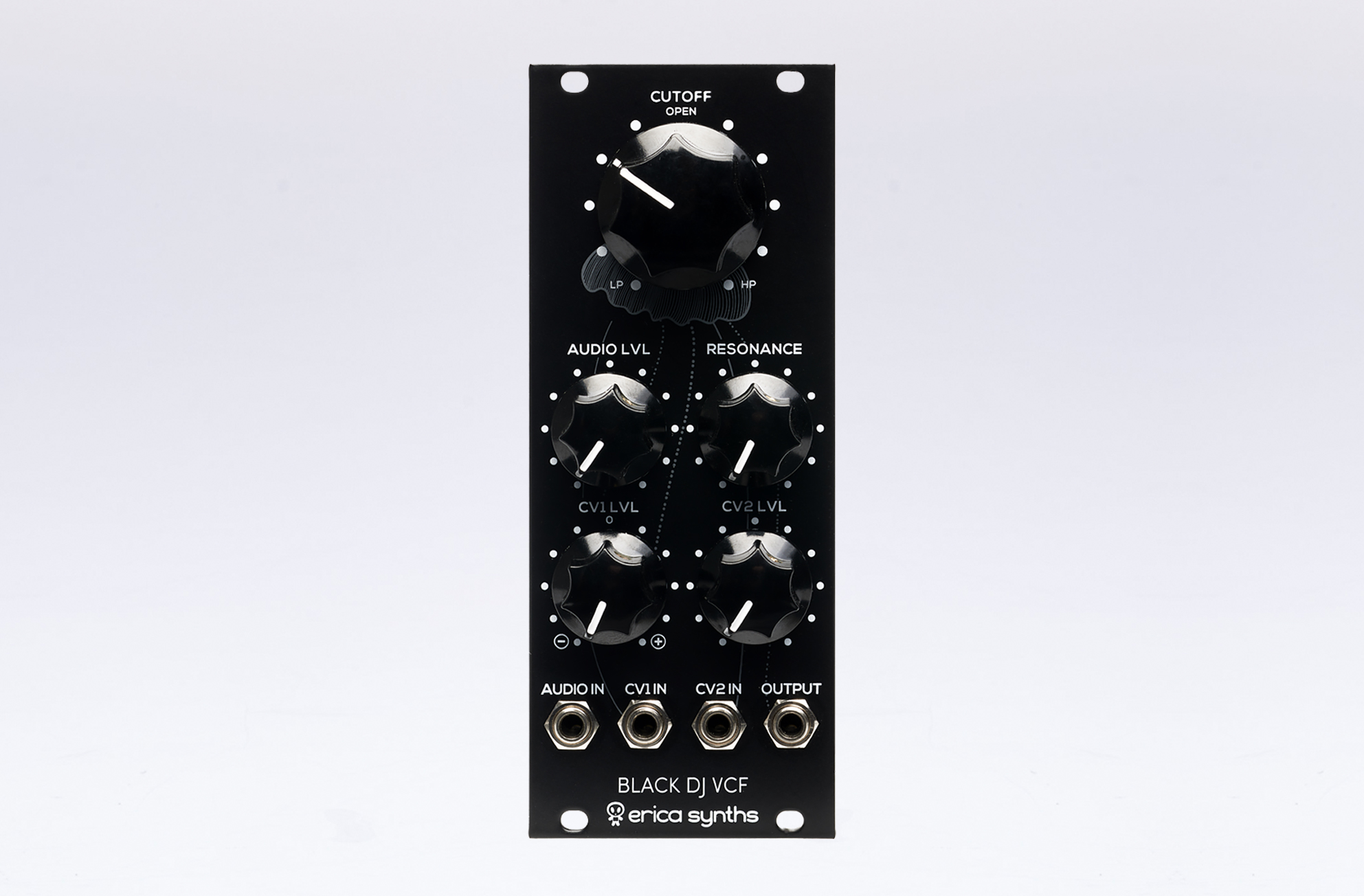

Black DJ VCF
EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
- local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
- account_balance_wallet Pay securely with Credit Card or PayPal
- beach_access 24 month warranty
As its name suggests, the Erica Synths Black DJ VCF provides sound treatment functionality typically found on DJ decks â it is fully open when the cutoff knob is set to 12:00. When turned counter-clockwise, lowpass filtering is applied and when turned clockwise, highpass filtering is applied. The filter also has a nice-sounding resonance parameter. This module provides hands-on control over the sound during the performance, as well as unconventional timbre modulations that are hard to achieve with conventional state variable filters. The Black DJ VCF is a fully analogue design and consists of two VCFs â highpass and lowpass in series and the filter management is done by complex CV routing.
Features
- Fully analogue DJ-style VCF
- Manual resonance control
- Cutoff CV attenuverter and attenuator
- Input and output
- Protection against undesired overvoltage
Black DJ VCF on Modulargrid
Technical specifications:
Audio level | 10Vptp |
CV level | -10V - +10V |
Filter slope | 24dB/oct |
Power consumption | +55mA, -58mA |
Module width | 10HP |
Module depth | 35mm |
