Black series

Black Hole DSP 2
new

+21% VAT for individual customers in EU without EU VAT registration number + shipping
  • local_shipping Worldwide delivery with Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty

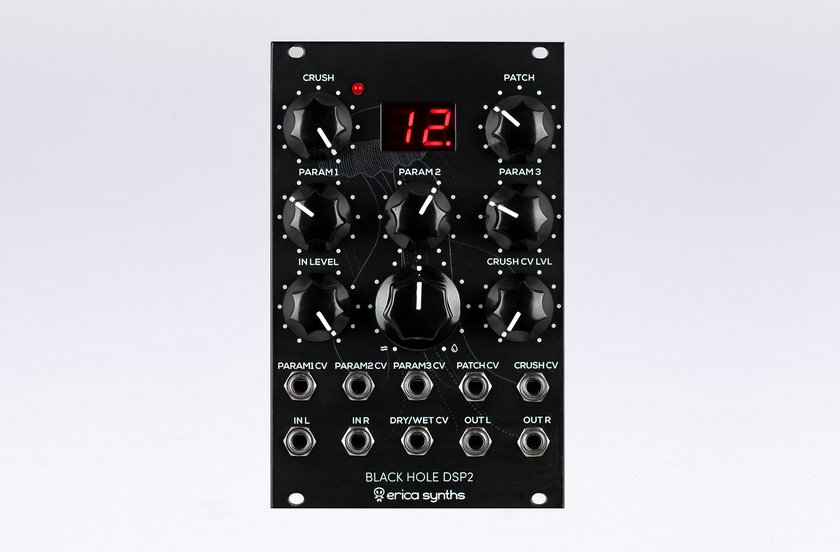

Erica Synths Black Hole DSP 2, an updated version of Black Hole DSP features 24 custom effects, designed in close co-operation of Erica Synths team rider KODEK and creator of SpinCAD software Gary Worsham. Each effect has 3 manually and CV controllable parameters, manual and CV control over sampling frequency for spanning from 48kHz to really Lo-Fi crunchy sound and full analogue dry/wet control. All effect parameter settings can be saved to the memory and instantly recalled with the effect, which makes Black Hole DSP II ideal for live performances.

Features

  • 24 custom FV-1 effects
  • Stereo INs and OUTs
  • 3 manually and CV controllable parameters
  • CV controlled effect selection
  • Manually and CV controllable DSP CPU clock rate
  • Effect settings memory
  • Full analogue Dry/Wet control
  • Clipping LED


Input signal amplitude-5…+5V (or 0…+10V)
Output signal amplitude-10V - +10V
Max sampling rate48kHz
CV level (full span)-5V - +5V
Power consumption+70mA, -56mA
Module width16HP
Module depth35mm

Manuals book
