Black series

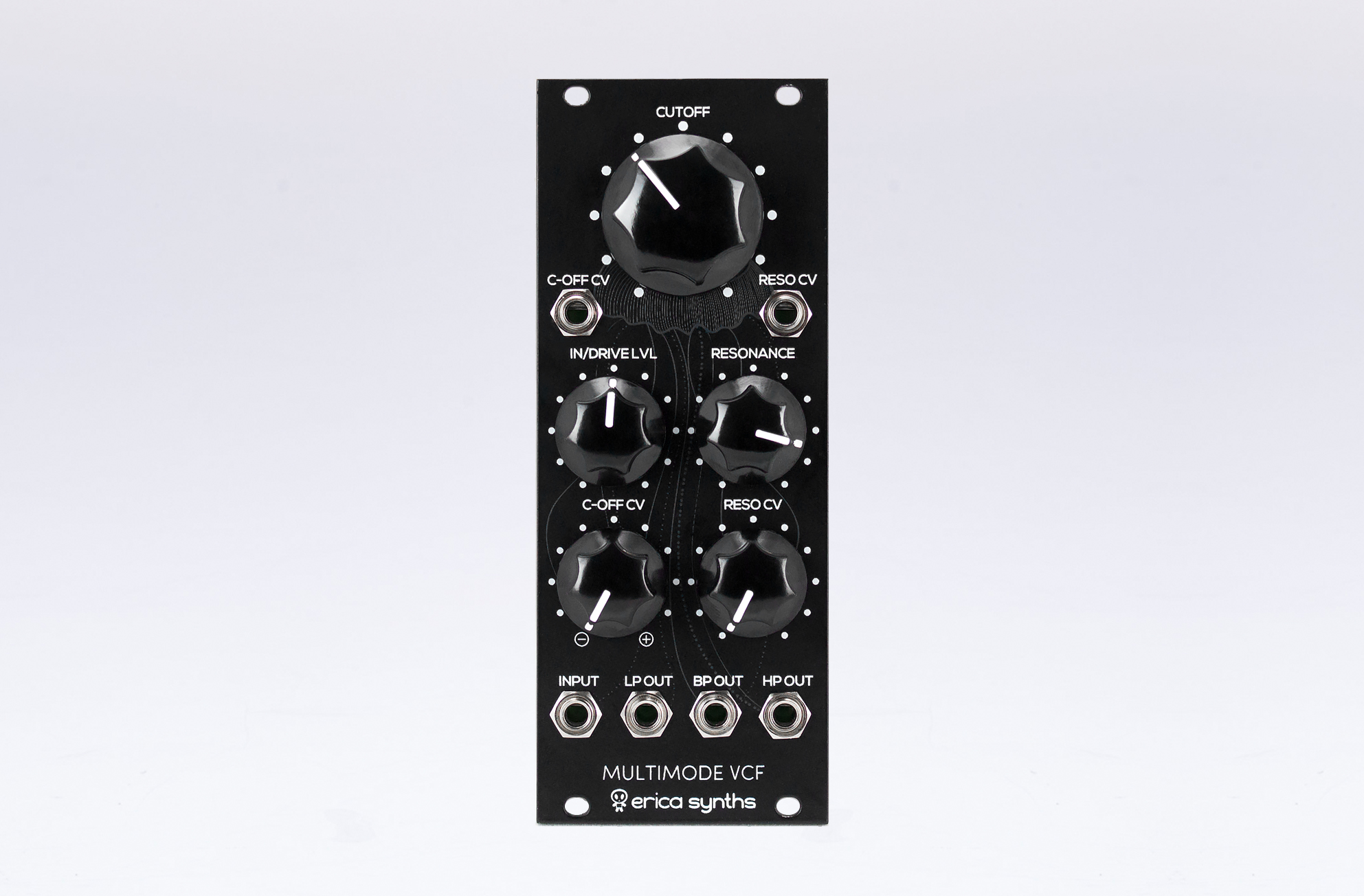

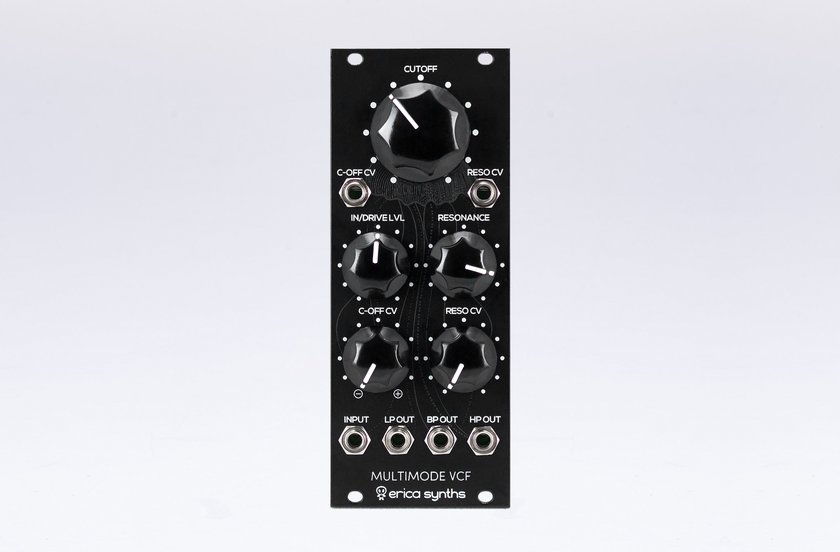

Black Multimode VCF

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty
Erica Synths Black Multimode VCF has simultaneous HP, BP and LP outputs and CV control over cutoff and resonance for serious modular patches.

Features

  • Simultaneous HP, BP and LP outputs
  • CV control over Cutoff and Resonance
  • Self-oscillation
  • Cutoff CV level attenuverter
  • Adjustable germanium diode overdrive
  • Skiff-friendly design

At the core of this VCF is a highly stable, custom multimode VCF chip AS3320 (produced in Riga, btw) and there's a bonus feature – a unique, adjustable germanium diode overdrive circuit on the VCF input.

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.

Technical specifications:

Audio output amplitude

10 Vptp

CV input (full sweep)

10 Vptp

Panel width

10HP

Module depth

35mm

Power consumption

27mA@+12V,


 29mA@-12V


Erica Black Multimode VCF on Modulargrid

Manuals book
