Black Quad VCA2

EAN:

4751030826721

Manufacturer:

Erica Synths

€200

VAT is not included

Worldwide delivery with UPS and Fedex

Pay securely with Credit Card or PayPal

24 month warranty

Short Description

Quadrople VCA in compact size. Read More

Shipping & Taxes

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping

Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping

Manual

Returns Policy

Warranty

Got questions? Guides and answers to frequently asked questions. Go To Support

Product Description

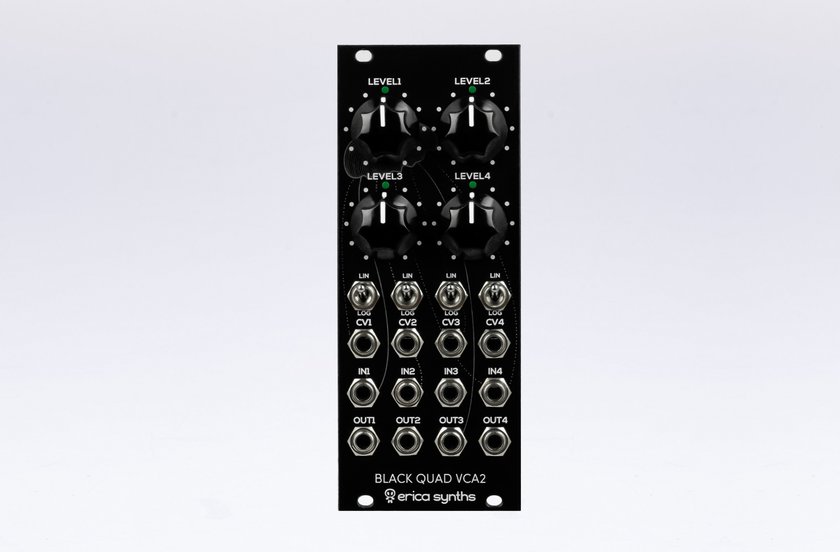

Erica Synths Black Quad VCA, despite its compact size, is designed in line with the Black Series Hi-Fi philosophy, our custom pre-emphasis – de-emphasis circuits preserve all the nuances of the original signal.

Erica Synths Black Quad VCA2 is a versatile four channel voltage controlled amplifier and mixer module for use in complex modular systems. Each channel has linear/logarithmic response selector and signal level indicator LED. All outputs are sequentially mixed and CV inputs are normalized to each other, so you can use the module in various configurations. If no CV is applied, the Black Quad VCA2 performs as a signal mixer, and the 4th channel is DC coupled for controlling CV sources, as well.

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.

Technical specifications:

CV level	-10V – +10V
Attenuation level: CV = 0V (max attenuation) CV = +10V (unity gain)	-80dB +3dB
Response	lin/log
Power consumption	+64mA, -62mA
Module width	10HP
Module depth	35mm
