Black series

Black Spring Reverb

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty

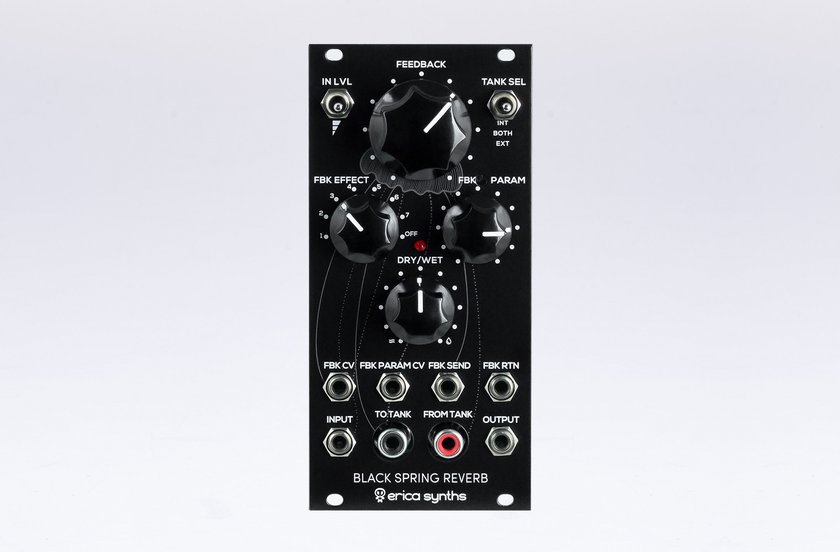

Erica Synths Black Spring Reverb is a different take on spring reverberation units. Firstly, it has built in vactrol based audio compressor, secondly, it can operate an external tank and combination of both internal and external ones for effects unheard before, thirdly, in order to animate reverb effect, the module has built-in feedback effects – pitch shifters, delay, ring-modulator, etc; feedback amount and effect parameters can be controlled manually and via CV, making the module an experimental instrument on its own. Module comes with compact spring reverberation tank which can be easily installed in most eurorack cases.

Features

  • Compact spring reverberation tank to install in a skiff case
  • Manually and CV controlled feedback amount
  • Vactrol-based compressor
  • 7 distinct feedback effects
  • Selection between internal, external reverberation tanks or combination of both
  • Feedback Send and Return jack sockets

The module is designed to be used with wide variety of spring tanks, but the best results will be using tanks with low input impendance - 8-200ohm

Technical specifications:

Audio input level-5V - +5V
CV level (full span)-5V - +5V
Power consumption43mA, -71mA
Module width12HP
Module depth30mm
Internal reverb tank dimensions190mmx67mmx24mm (30mm with spacers)

Manuals book

FAQ question_answer

  • Looking to get an external reverb tank with a Black Spring Reverb. Could you please recommend an external reverb thank that is a good match?
    You should use tanks with low input impedance - 8-200ohm. The second letter of the tank A,B,C ( input impedance) should work well. The best results should be with B as this is also the impedance of the internal tank. Some examples : http://www.banzaimusic.com/accutronics-4ab3c1a.html http://www.banzaimusic.com/accutronics-1bb2d1b.html http://www.banzaimusic.com/accutronics-4bb2c1b.html
