Drum series

Cymbals

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty

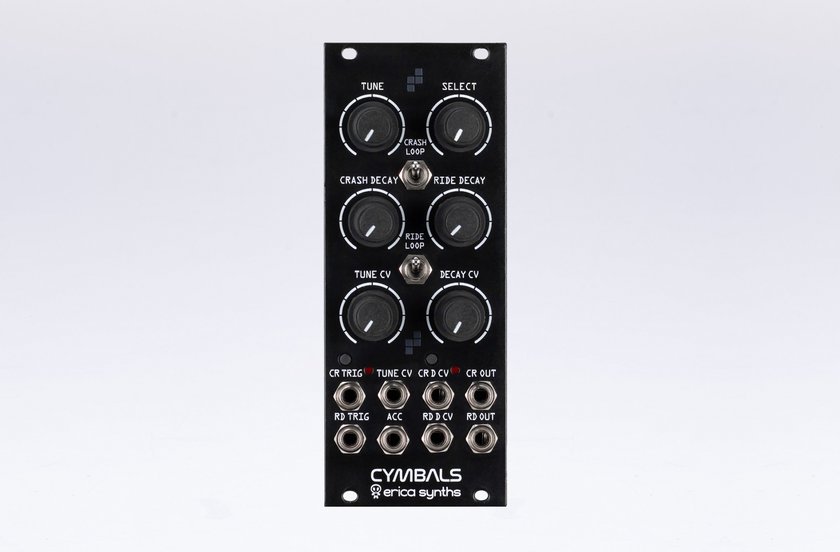

Erica Synths Cymbals is a distinct topology digital/analogue module, where cymbal samples are passed thru AS3330 based VCA and controlled via envelope generators of unique design. The module features 10 sets of custom Crash and Ride cymbal samples with Tune control and individual Decay control. Accent and CV control over Tone and Decay allow you to create lot of variations in the Cymbals track. An extra feature is sample looping – when it’s on, a certain part of the sample is looped while the envelope decay is on, thus creating a distinct, delay-like effect. Cymbal samples are developed by producer and musician Nero Bellum.

Features

  • 10 sets of custom cymbal samples
  • Analogue VCA and EG
  • Tune and Decay controls
  • CV control with an attenuators over Tune and Decay
  • Sample loop for Crash and Ride
  • Manual triggers
  • Accent for better expression

Audio output level-5…+5V
CV level (full span)-5V - +5V
Accent CV level10V
Tigger level5V
Trigger time1ms
Power consumption95mA @ +12V, 36mA @ -12V
Module width10HP
Module depth45mm

Manuals book

You may also like

TECHNO SYSTEM
TECHNO SYSTEM

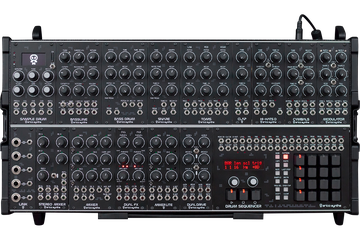

Erica Synths Techno System is the ultimate tool for rhythm based music production, live performances and sound design. The drum modules are internally patched to the sequencer, so they receive trigger and accent signals even without patching relevant patch cables therefore allowing you to fully focus on the audio signal patching. With a bit of imagination you’ll find that it’s not limited to specific music genres — it just depends on your creativity in patching and settings of modules. The potential is unlimited!

from € 3990.00
Dual FX
Dual FX

To add some space to your compositions and nuances in sound design Erica Synths Dual FX module brings you two identical sections of 8 custom effects with two adjustable and CV controllable parameters.

€ 250.00
Hi-Hats D
Hi-Hats D

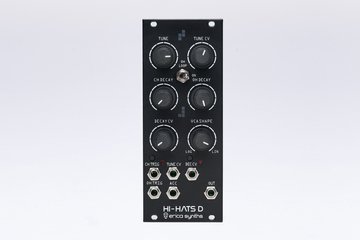

Hi-Hats D is Erica Synths take on classical digital hi-hats. Instead of using an integrated circuit DAC chip Hi-Hats D are using 6-bit discrete DAC for that unmistakable crunchy sound. For amplitude shaping samples are passed trough AS3330 based VCA and are controlled with an analog envelope generator for versatile and snappy sound. Extra feature is Open Hi-Hat looping – when it’s on, a certain part of the sample is looped while the envelope decay is on, thus creating distinct, delay-like effect.
