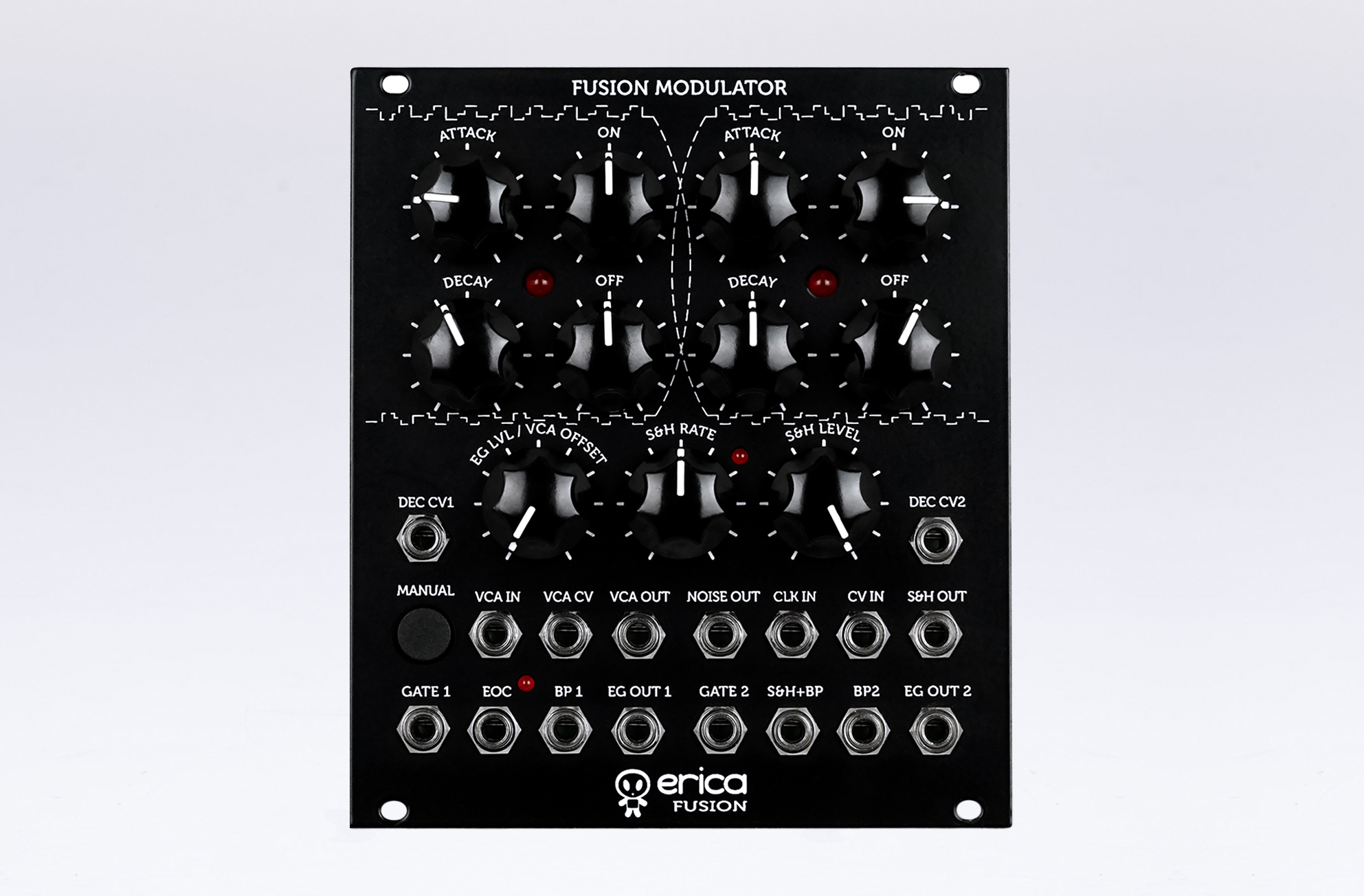

Fusion Modulator

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty
Fusion Modulator is complex, all analogue modulation source with lots of distinct features. It consists of several blocks – two EMS Synthi functionality inspired looping envelope generators with simultaneous unipolar (0V-10V) and bipolar (-5V-+5V), VCA, Noise generator and Sample&Hold. This makes Fusion Modulator a versatile modulation source for advanced modular setups, especially drone music oriented ones. Set lopping envelope generators to high frequencies and have two sub bass sound sources, use VCA to control the amplitude of the envelope signal, modulate the decay time by random voltages from S&H circuit and get ever evolving sonic awesomeness!

Features

  • Full analogue design
  • Two looping envelope generators with Attack, On, Decay and Off time control
  • CV control over Decay time
  • Simultaneous unipolar (0V-10V) and bipolar (-5V - +5V) envelope outputs
  • Manual trigger button
  • End of Cycle output
  • VCA with the offset control
  • Zener diode based white noise source
  • Sample&Hold circuit with internal and external clock source

Technical Specifications:

Attack time6ms – 850ms
On time0-1,5s
Decay time16ms – 2s
Off time14ms – 1,3s
Sustain level+10V
Panel width22HP
Module depth:36mm
Power consumption125mA@+12V, 74mA@-12V

Manuals book

You may also like

Fusion Delay/Flanger/Vintage Ensemble
Fusion Delay/Flanger/Vintage Ensemble

Erica Synths Fusion Delay/Flanger/Vintage Ensemble module is a distinct multifunctional analogue effects module that combines BBD chip based effects with an adjustable tube overdrive in the delay output and a feedback path for extra thickness of the sound.

€ 350.00
Fusion VCO V2
Fusion VCO V2

Fusion VCO2 is a full analogue sound source with lots of distinct features.

€ 300.00
Fusion VCF3
special offer warning

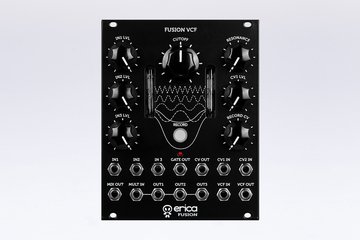

Fusion VCF3
