Fusion series

Fusion Ring Modulator V2

+21% VAT for individual customers in EU without EU VAT registration number + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty

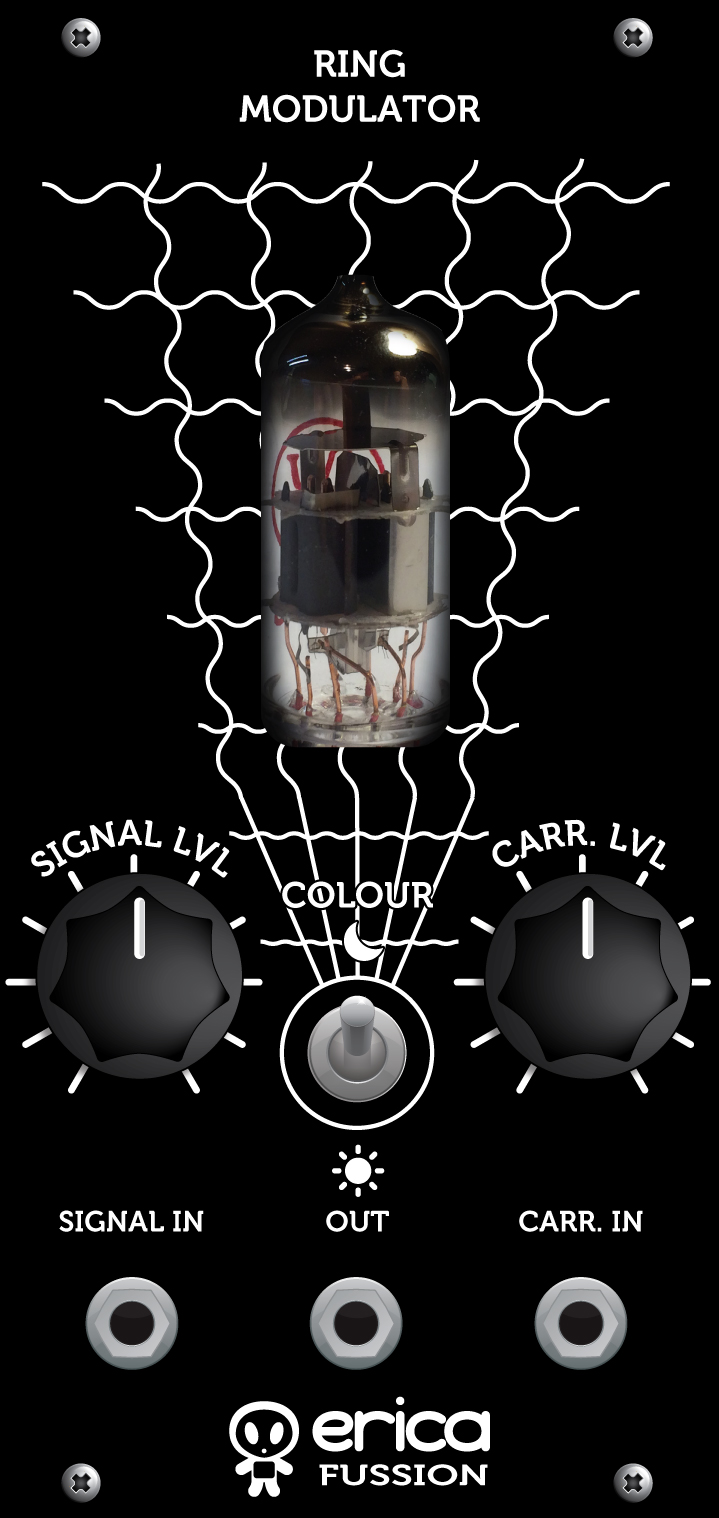

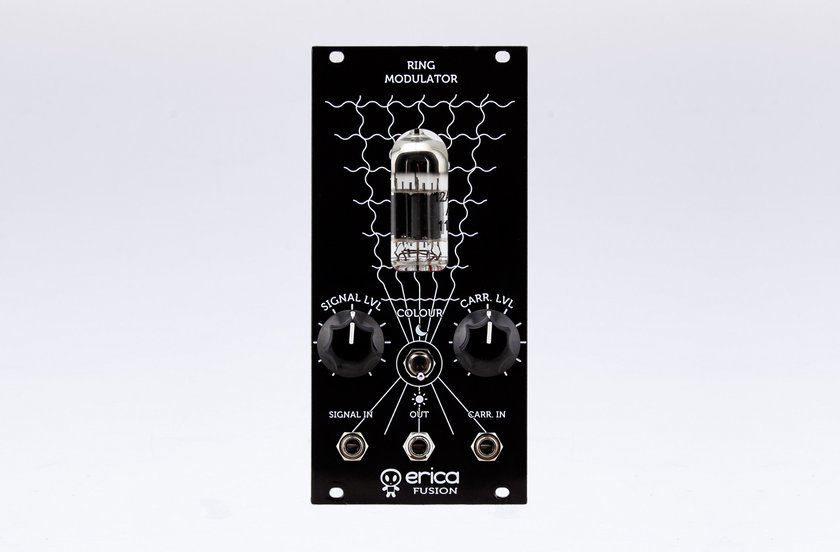

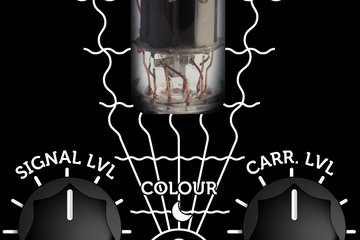

Erica Synths Fusion Ring Modulator – a classic design ring modulator with germanium diode ring + vacuum tube to boost and shape audio and carrier signals.

Features

  • Germanium diode ring
  • Audio transformers
  • Adjustable tube overdrive on both audio and carrier inputs
  • Colour switch to select between brighter and darker sound

Germanium diodes enrich the sound by adding extra harmonic content meanwhile vacuum tube adds evilish overdrive to audio and carrier signals. As a result you get one of the most versatile ringmodulators around!

All Fusion modules by default are configured to work with regular eurorack PSU.

Configurable power supply – standart eurorack +-12V conection OR eurorack +-12V plus Erica Synths Tube heater PSU

Due to the fact that cold tube heaters have lower resistance, Fusion modules have significant power consumption peak at startup, when power consumption almost doubles for 1-2 seconds. This is not a problem with linear PSUs that have power inertia, but may cause switching PSU internal protection turn off the power supply. Please make sure your PSU has some headroom before installing multiple Fusion modules.

Would I build a setup around valve modules? I was expecting to say no, but having spent time with the Fusion setup I’m surprised to say I actually would. It’s distinctive, it’s versatile, but more importantly it’s fun. Music has always been about philosophies and aesthetic choices; Erica understand that and offer something fantastically different with the Fusion series. These are not sterile, surgical tools. Far from it. And they’re all the better for that. - Attack Magazine

Technical specifications:


Input signal levelup to 20V ptp
Output signal level10V ptp
Mixer GAIN1
Power supplybipolar +-12V , eurorack standard
Power consumptionEurorack PSU configuration: 160mA@+12V, 10mA@-12V
Module width14HP
Module depth25mm

Please, refer to the user manual below for all possible power supply configurations!
