Fusion VCA/Waveshaper/Ringmodulator

+21% VAT for individual customers in EU without EU VAT registration number + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty

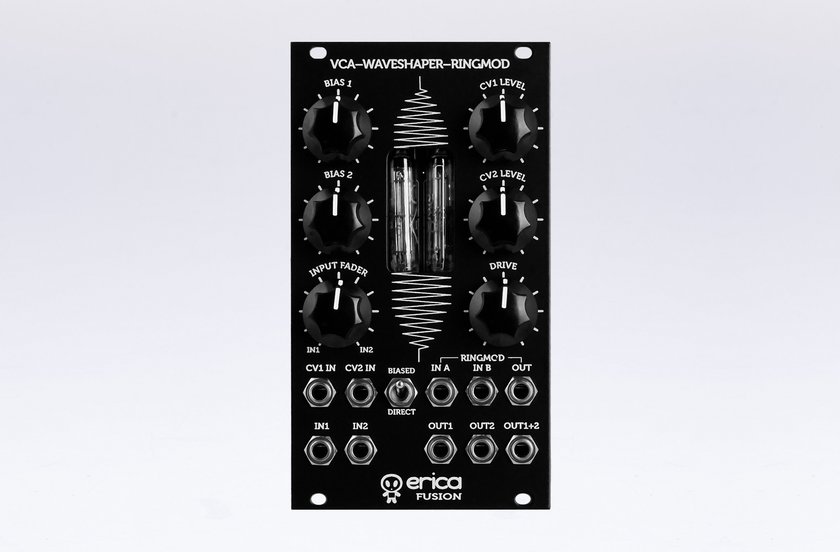

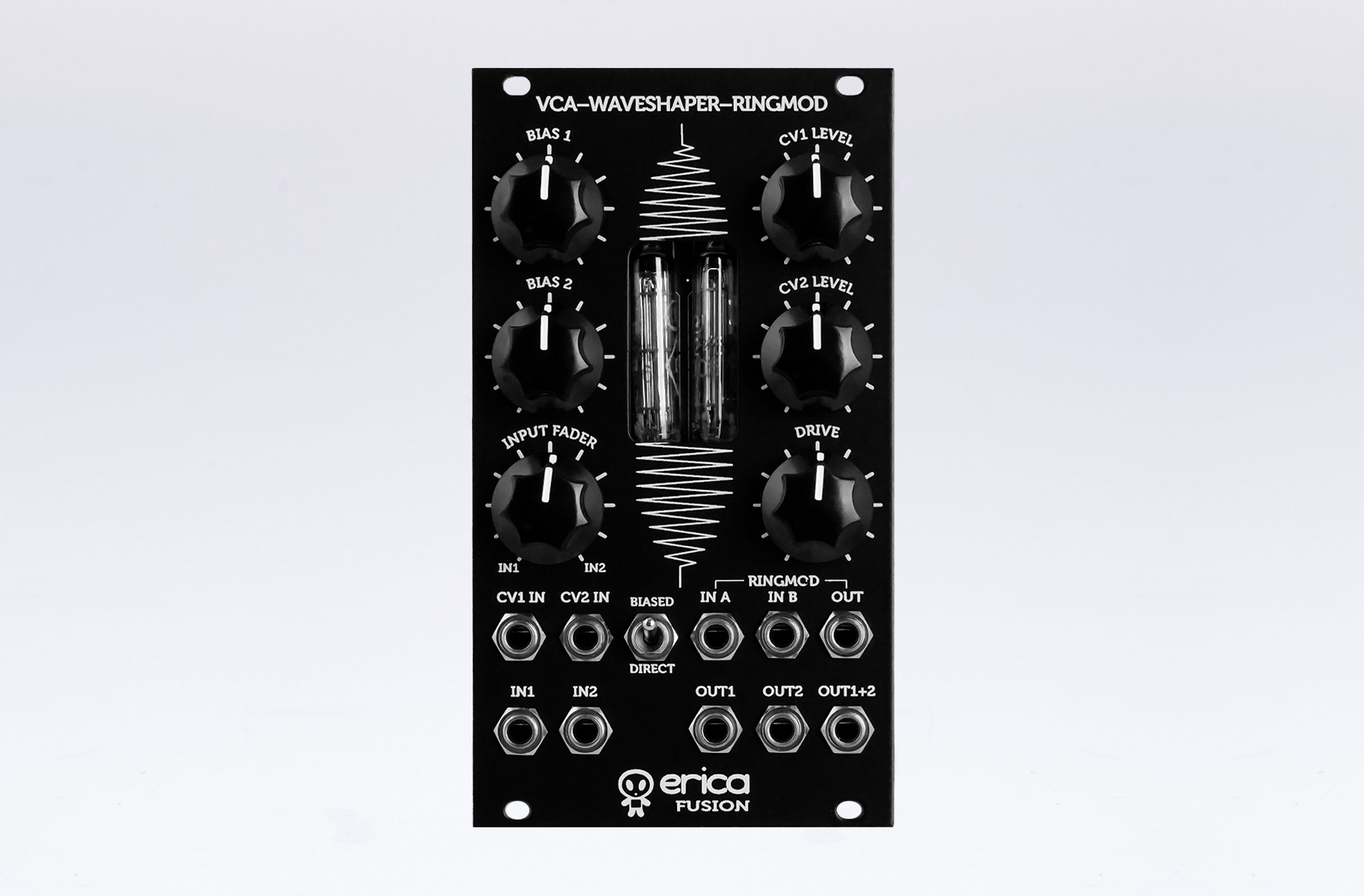

The Fusion VCA/Waveshaper/Ringmodulator is a complex sound processor that combines VCA, waveshaper and ringmodulator. It’s not a regular VCA; it can operate as one, but most of the power of the module is in advanced modulations – with two CVs applied simultaneously to different stages of the VCA, audio rate modulations, using ringmodulator as a waveshaper – your imagination is the limit!

Features

  • Full analogue design
  • Vacuum tube based VCA – two miniature pentodes for better gain reduction
  • Two unconventional CV controls – CVs are not mixed, but they control  different grid voltages of the tubes
  • Manual VCA bias control
  • Manual overdrive
  • Input corossfader
  • Built-in ringmodulator
  • Direct switch for conventional VCA mode
  • Low power consumption due to miniature vacuum tubes



Technical specifications:

Audio Input level10Vptp
CV input level (full swing)-10V - +10V
Panel width14HP
Module depth36mm
Power consumption48mA@+12V, 69mA@-12V
