Pico series
Pico EF
EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
- local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
- account_balance_wallet Pay securely with Credit Card or PayPal
- beach_access 24 month warranty

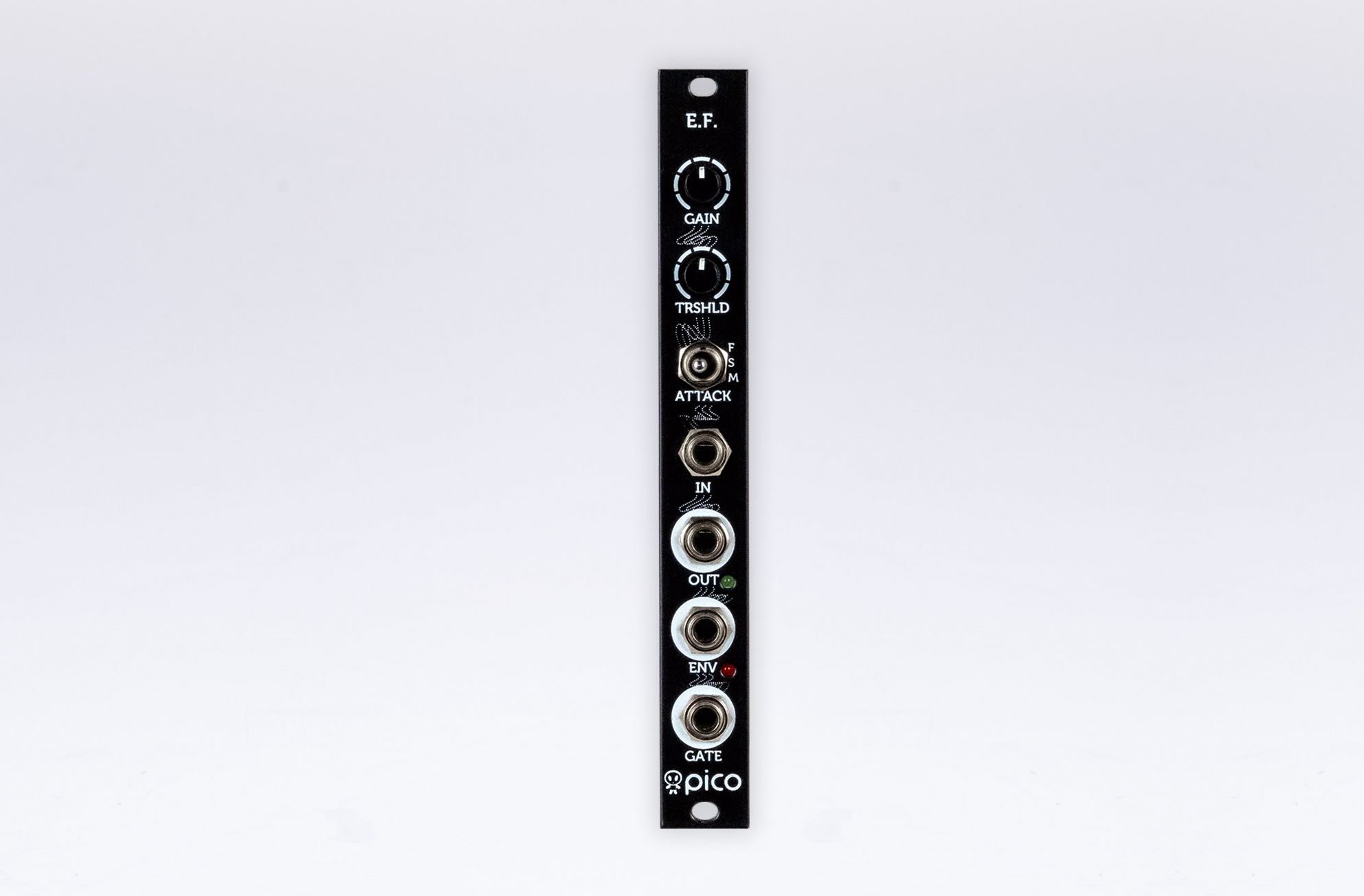

Pico EF is Erica Synths take on envelope follower module in 3hp! Pico EF features a preamp with +40dB gain (enough to boost even guitar and dynamic microphone signals for use in a modular system), envelope output with adjustable attack time and a gate output with adjustable threshold. The Pico EF can be used as a preamp, overdrive unit or for controlling VCFs with audio signal, or to use with external instruments to control your modular system in other creative and experimental applications.
Features
- Preamp with adjustable gain
- Audio overdrive possibility
- Envelope follower with adjustable attack time
- Gate extractor with adjustable threshold
- Input protection against overvoltage
- Protection against reverse PSU connection
Technical specifications:
Preamp boost | up to +40dB |
Audio output level | 10Vptp |
Envelope output level | 0 - +10V |
Gate level | +5V |
Power consumption | 25mA, -15mA |
Module width | 3HP |
Module depth | 35mm |
Manuals book
-
User manual — Jan. 12, 2021
