Pico series
Pico VCO2
EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
- local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
- account_balance_wallet Pay securely with Credit Card or PayPal
- beach_access 24 month warranty

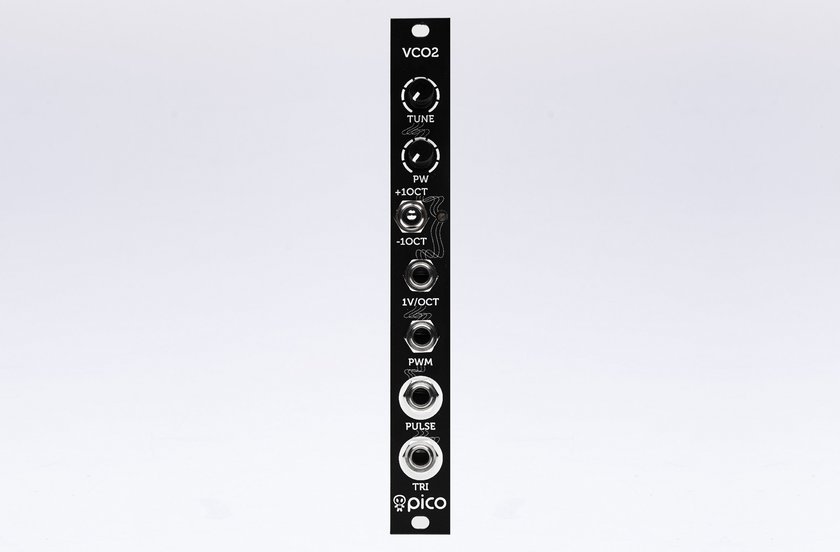

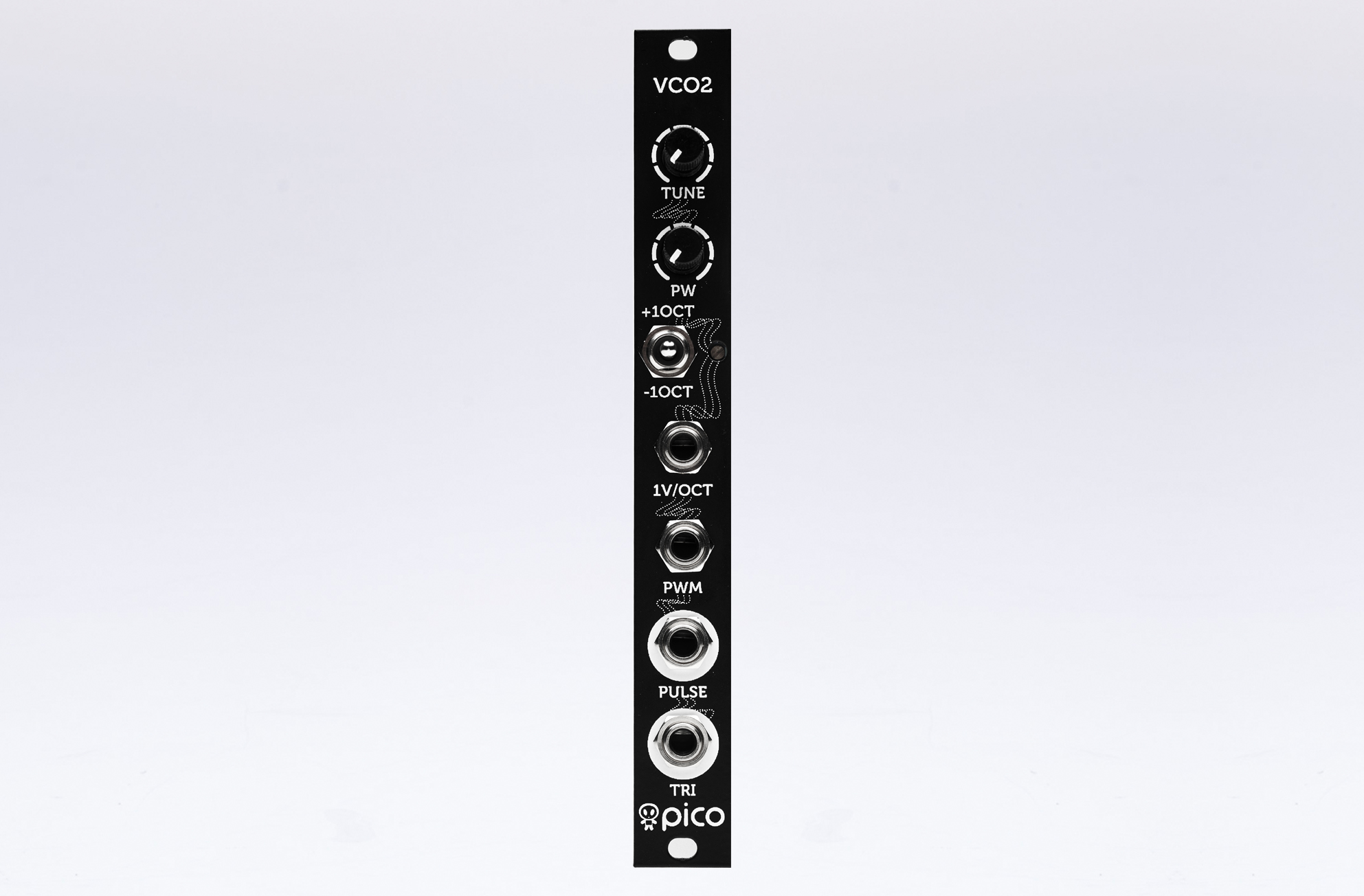

Erica Synths Pico VCO2 – powerful, full analogue VCO with great tracking over 8 octaves just in 3HP! Combine two of those, add some PWM and have a sound of real analogue beast!
Features
- Manual TUNE and PWM controls
- +-1 octave switch
- 1V/oct input with good tracking across 8 octaves
- PWM CV input
- Pulse and triangle waveform outputs
- Input protection against overvoltage
- Protection against reverse PSU connection
Technical specification:
Output signal amplitude | -5V - +5 |
PWM CV input (full span) | -5V - +5V |
Power consumption | +21mA, -19mA |
Module width | 3HP |
Module depth | 35mm |
Manuals book
-
Pico VCO2 manual — May 7, 2019None
