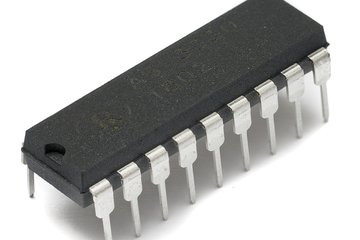

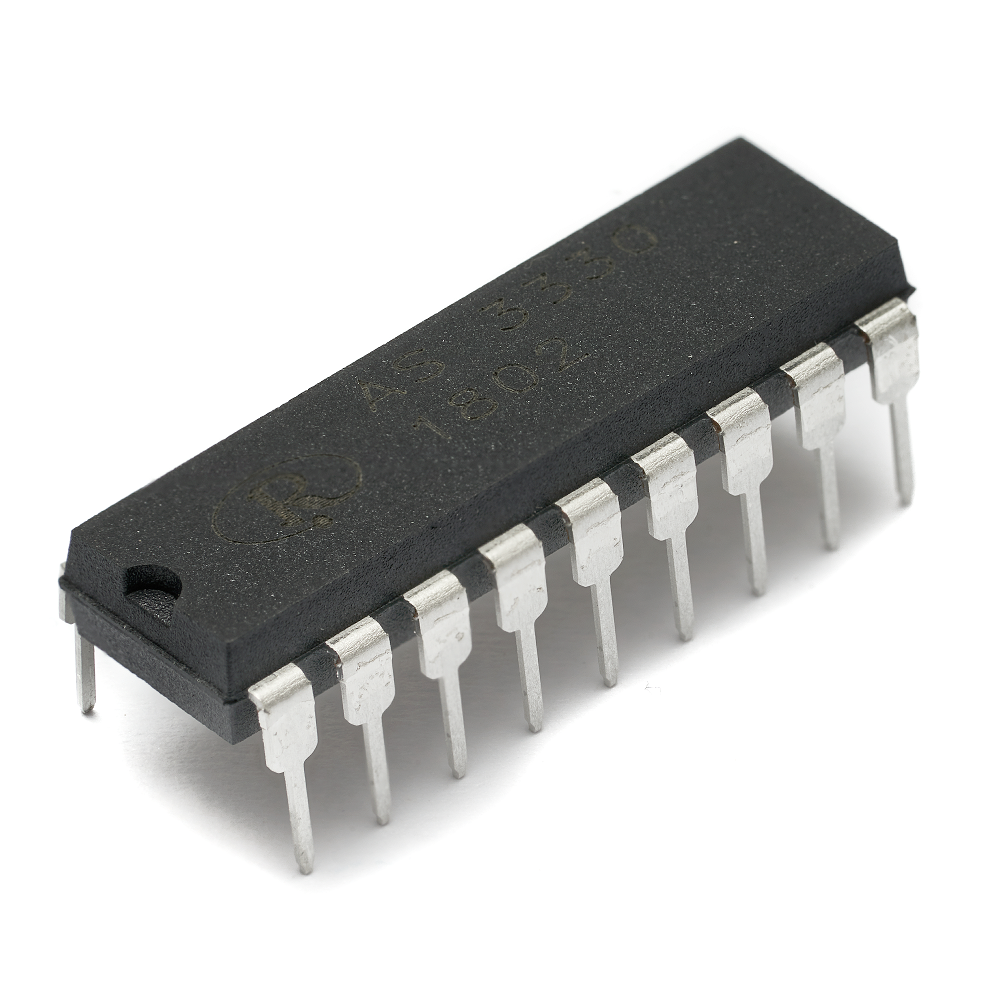

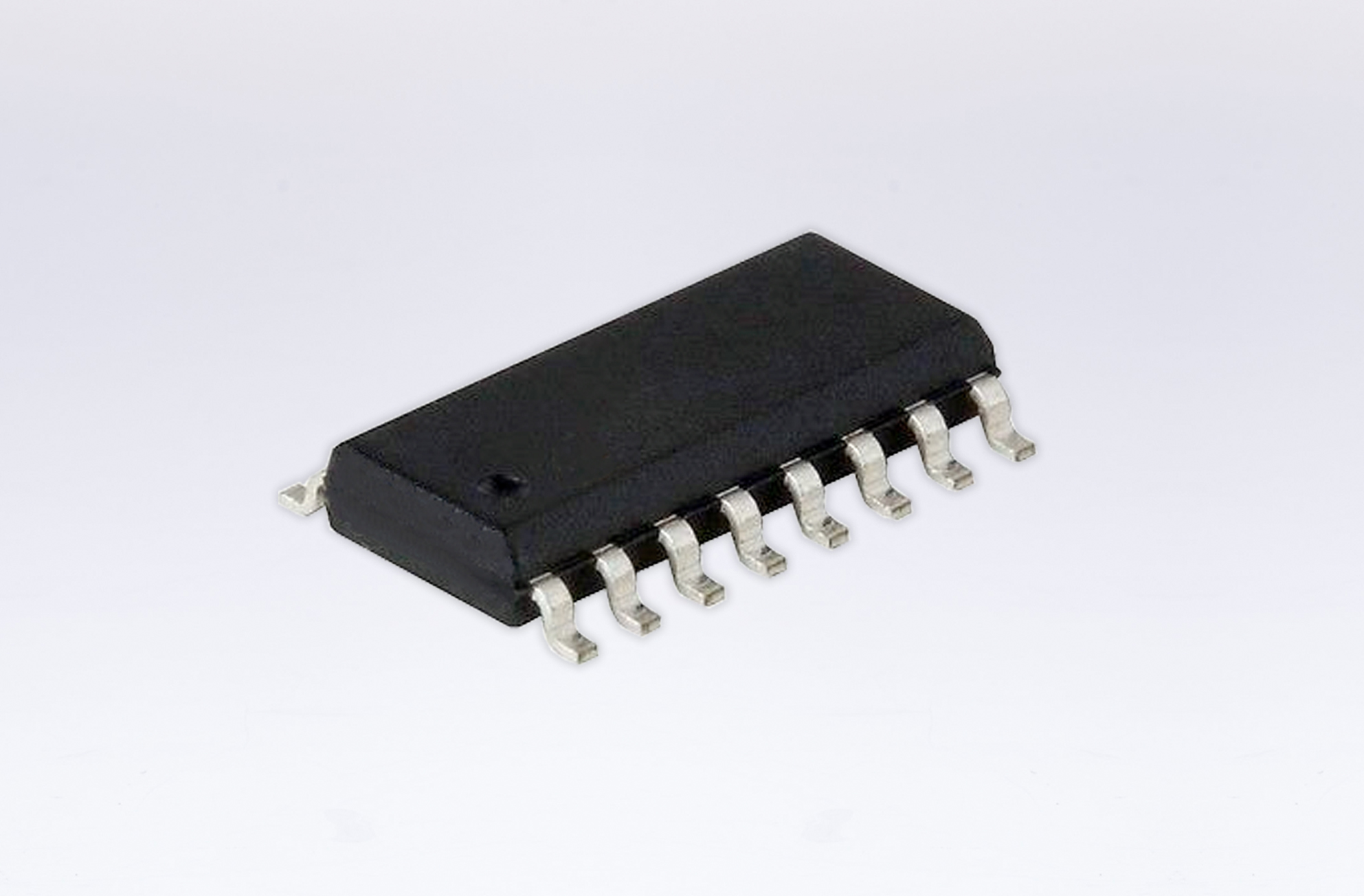

Quad Linear VCA AS 3364

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty
The AS3364 is a quad linear voltage controlled amplifier intended for such applications as voltage controlled amplifiers, filters, and waveform generators with very few external components. AS3364 pinout allows simple replacement of AS2164 witch simplify circuit design with linear control.

Features

  • “Linear replacement” – “pin compatible” to AS2164
  • Exceptionally low control feedthrough without trimming: 10mV maximum out of 10 V.P.P. output
  • Low noise: -110dB typical
  • Summing node signal Inputs
  • Current outputs capable of swinging to within 1,5V of each supply
  • Control voltages referenced to ground
  • Wide supply range: ±3 to ±12V or +15, - 3 to - 9V
