DESKTOP INSTRUMENTS
SYNTRX II
- local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
- account_balance_wallet Pay securely with Credit Card or PayPal
- beach_access 24 month warranty
Features
- Two perfectly stable main oscillators with CV-controlled waveforms
- Modulation oscillator with variable waveforms
- Highpass and Lowpass filters in series
- Free running or gate synced sample and hold circuit
- Multi-color noise generator
- DC coupled instrument inputs with signal inversion and envelope follower
- Ring modulator of unique design
- Looping trapezoid envelope generator and VCA
- Two output VCAs
- Signal meter with a dedicated audio/CV output
- FX section with great sounding Delay and Reverb developed in collaboration with 112db.com
- Recordable Joystick
- Analogue patch matrix with 3 attenuation levels in each patch point
- 254 patch memory
- Piano roll sequencer and two stepper modulation sources

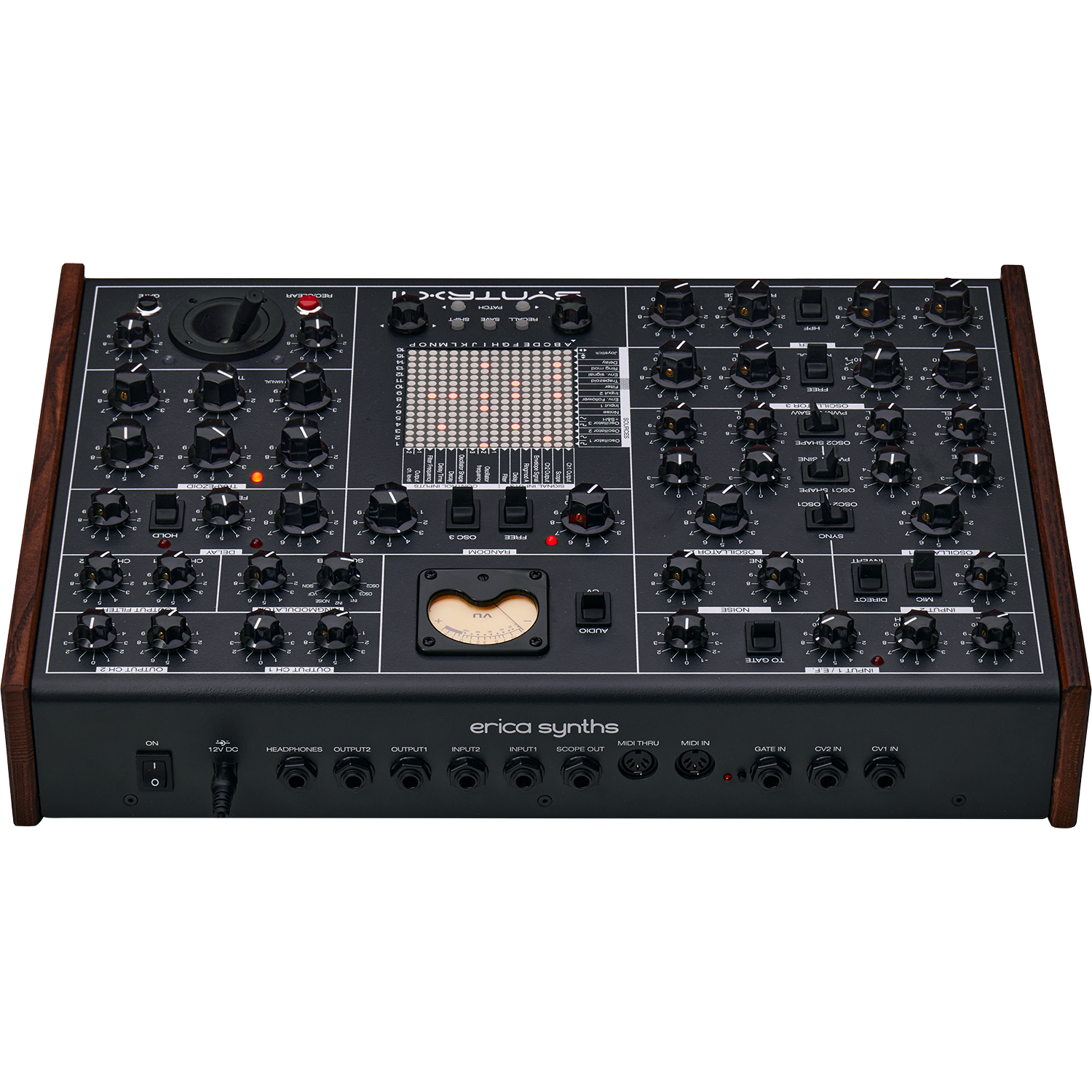

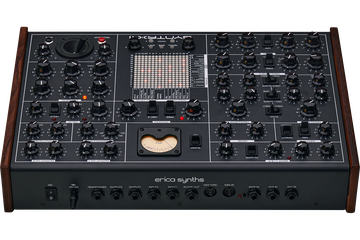

- DIN5 MIDI Input and MIDI Thru
- Two assignable outputs
- Headphone output
- Dimensions: 309mm x 457mm x 115mm (with the joystick in centre position)
- Weight: 3.9 kg

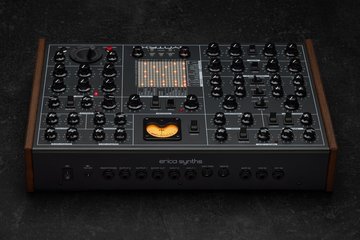

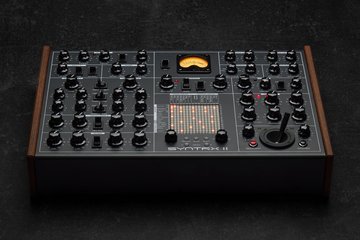

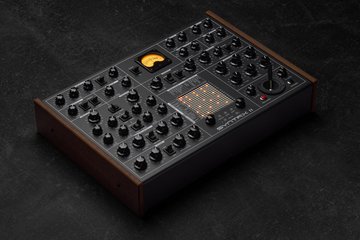

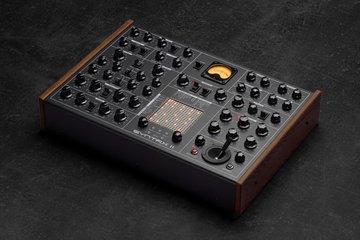

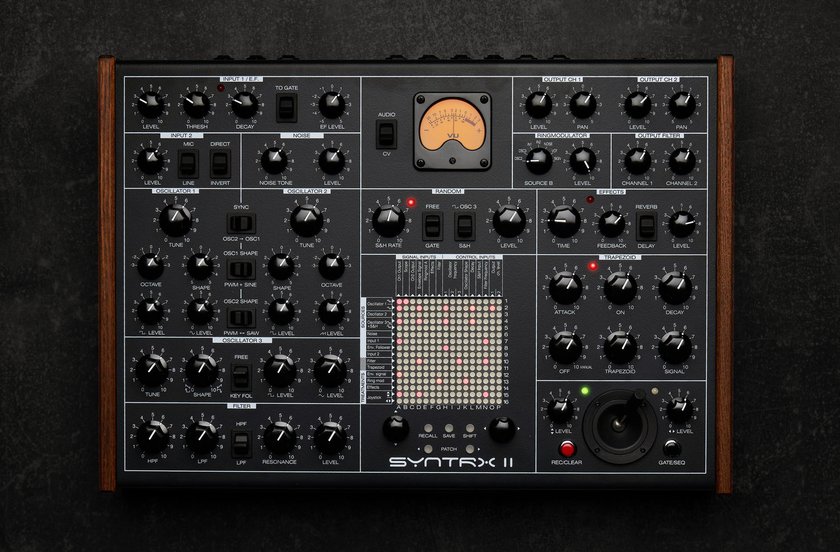

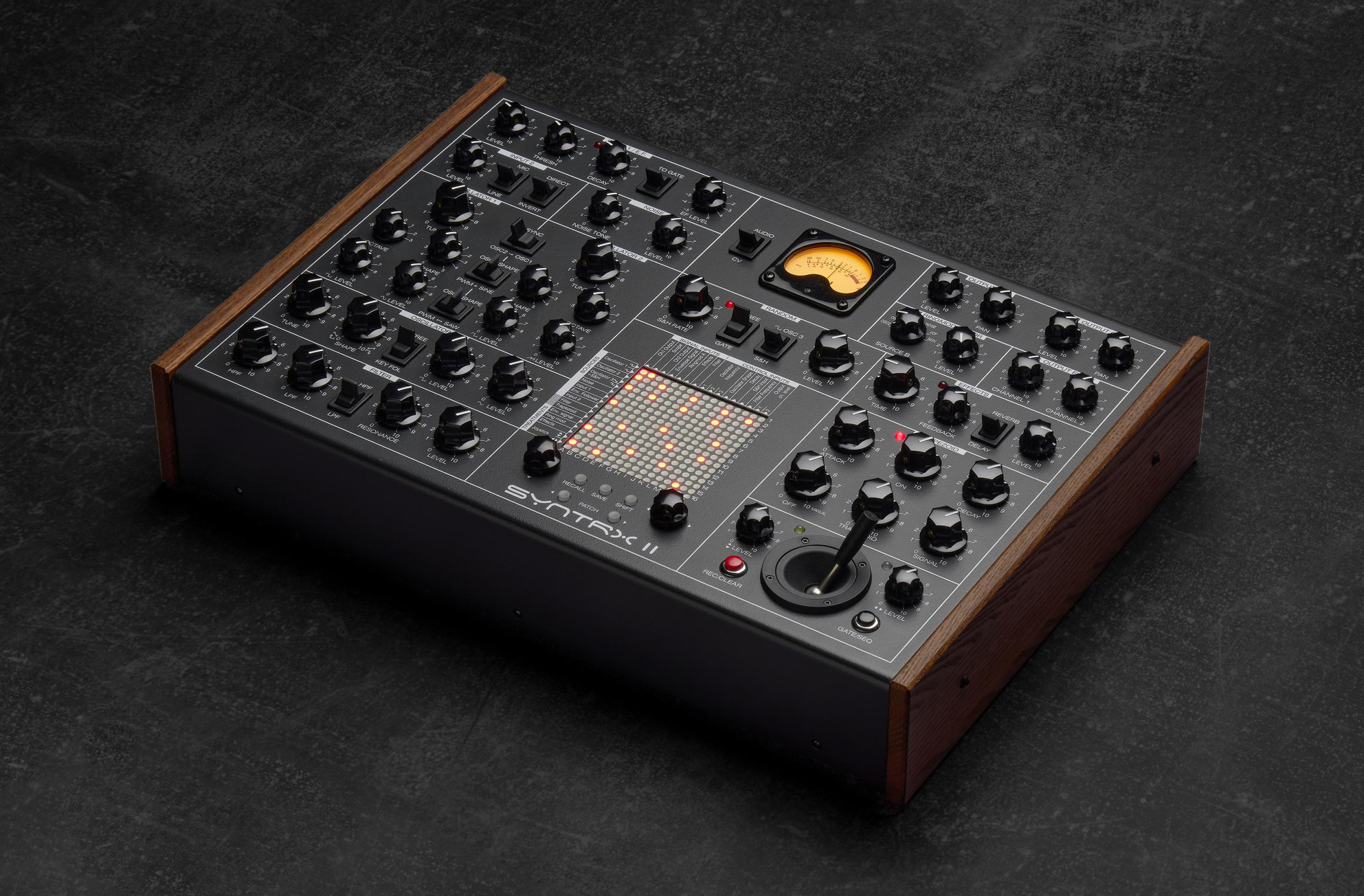

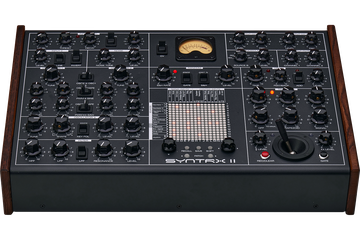

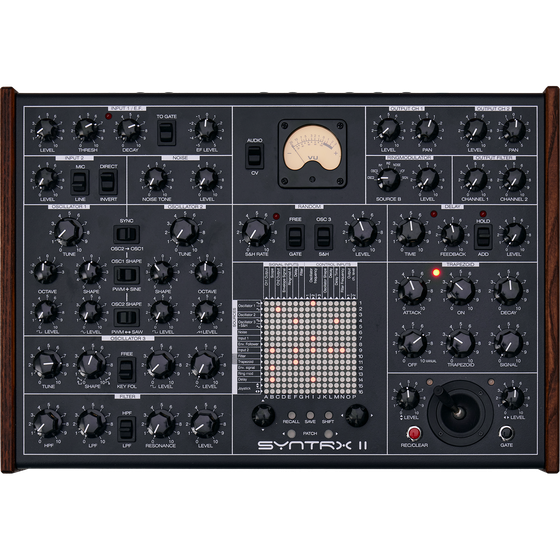

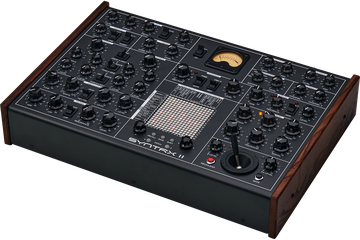

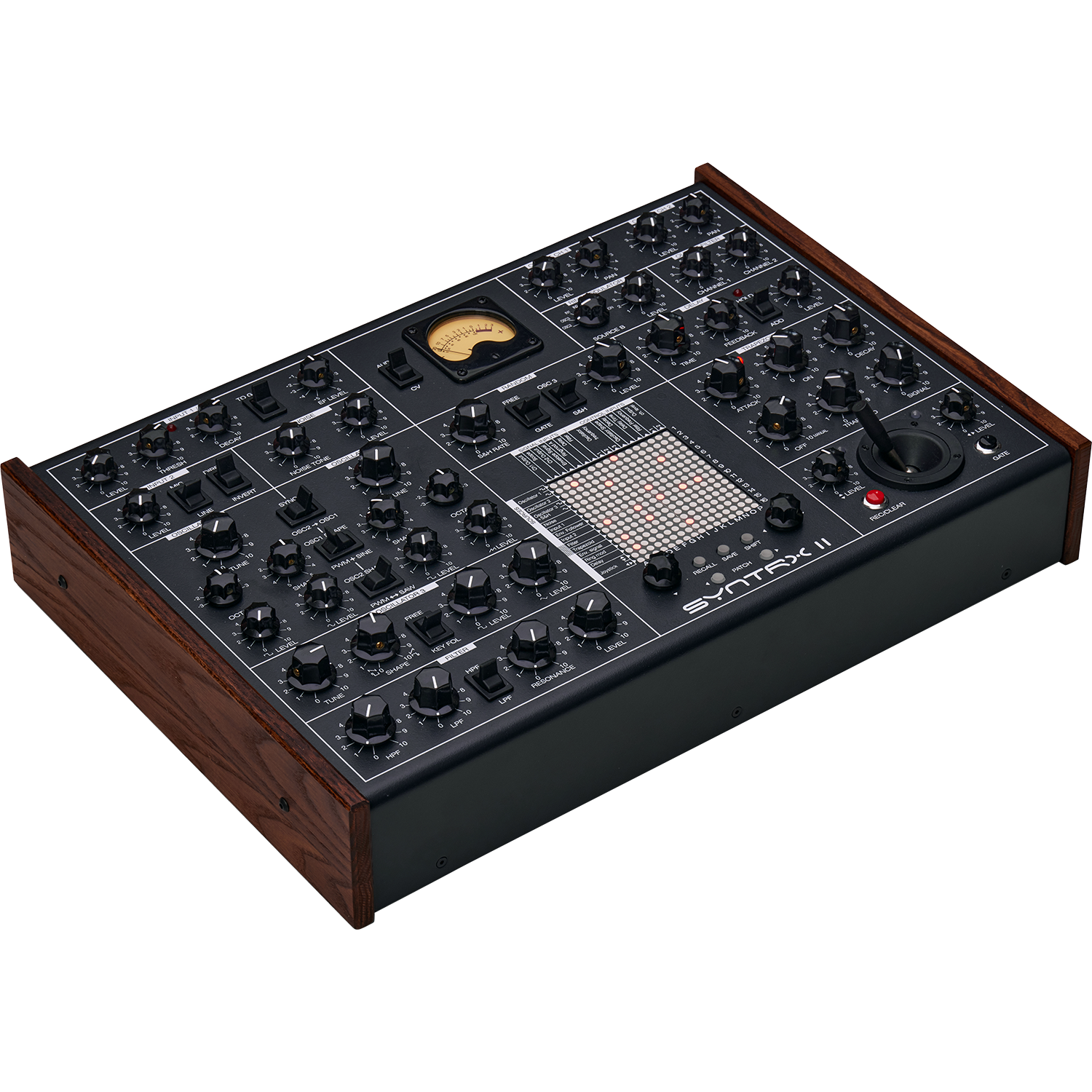

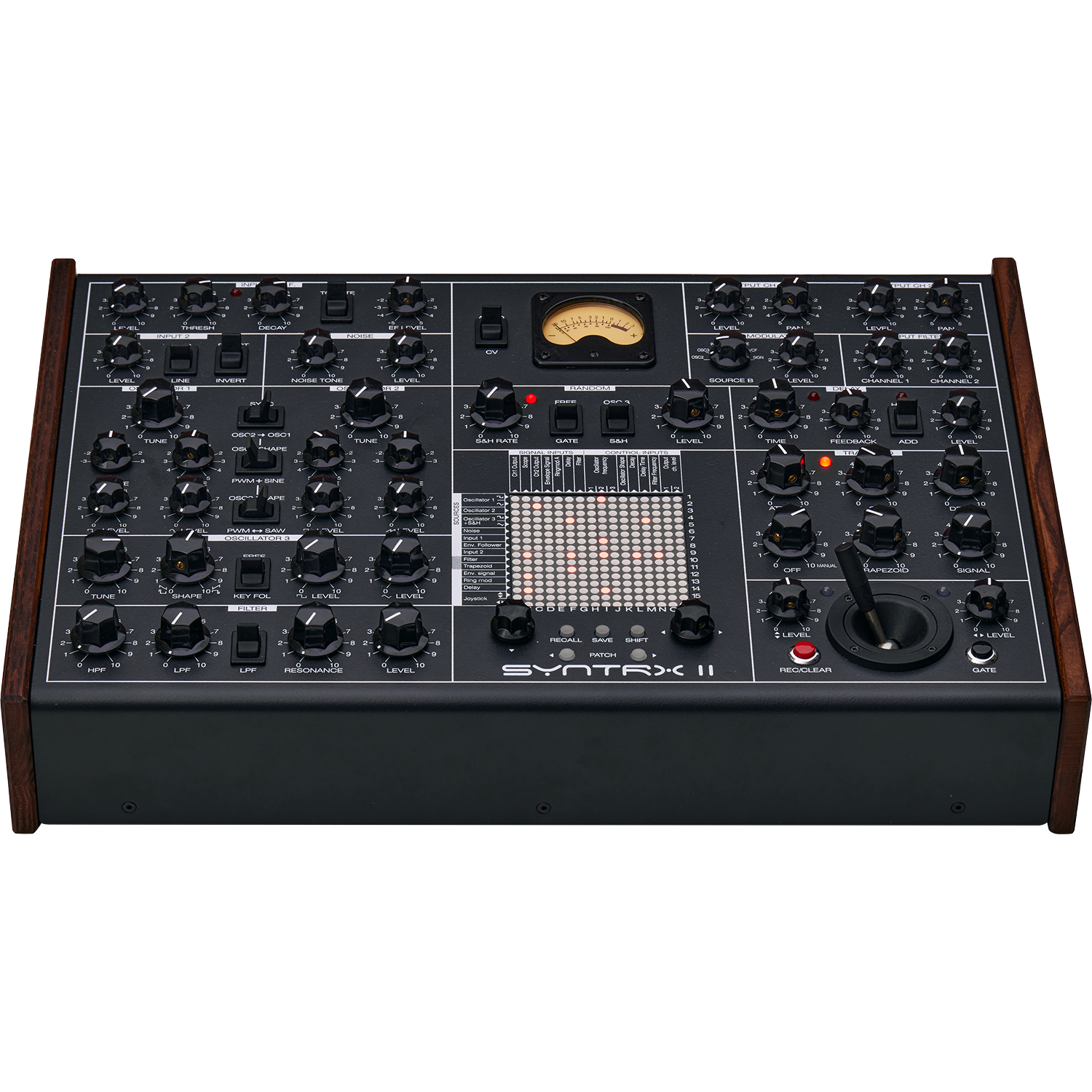

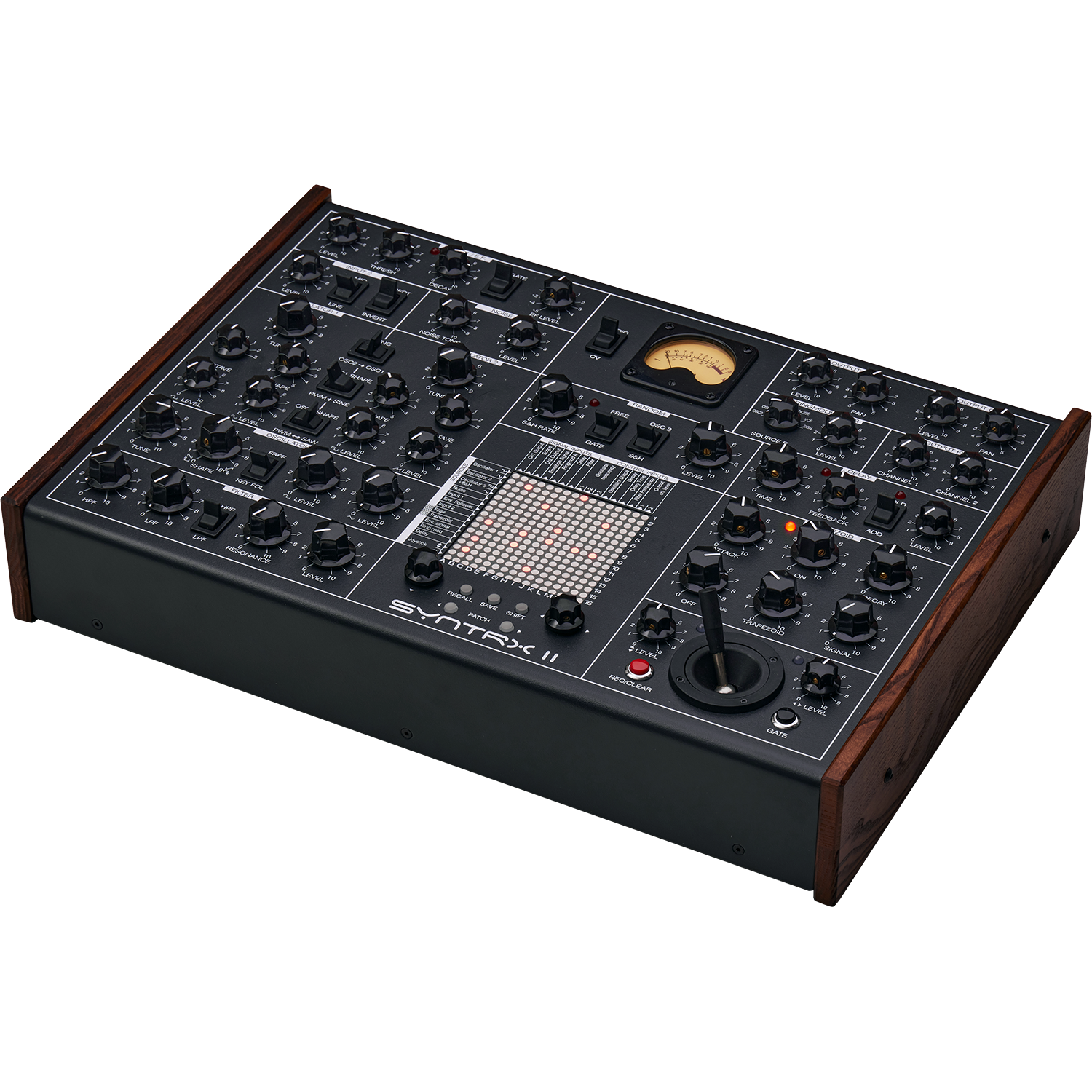

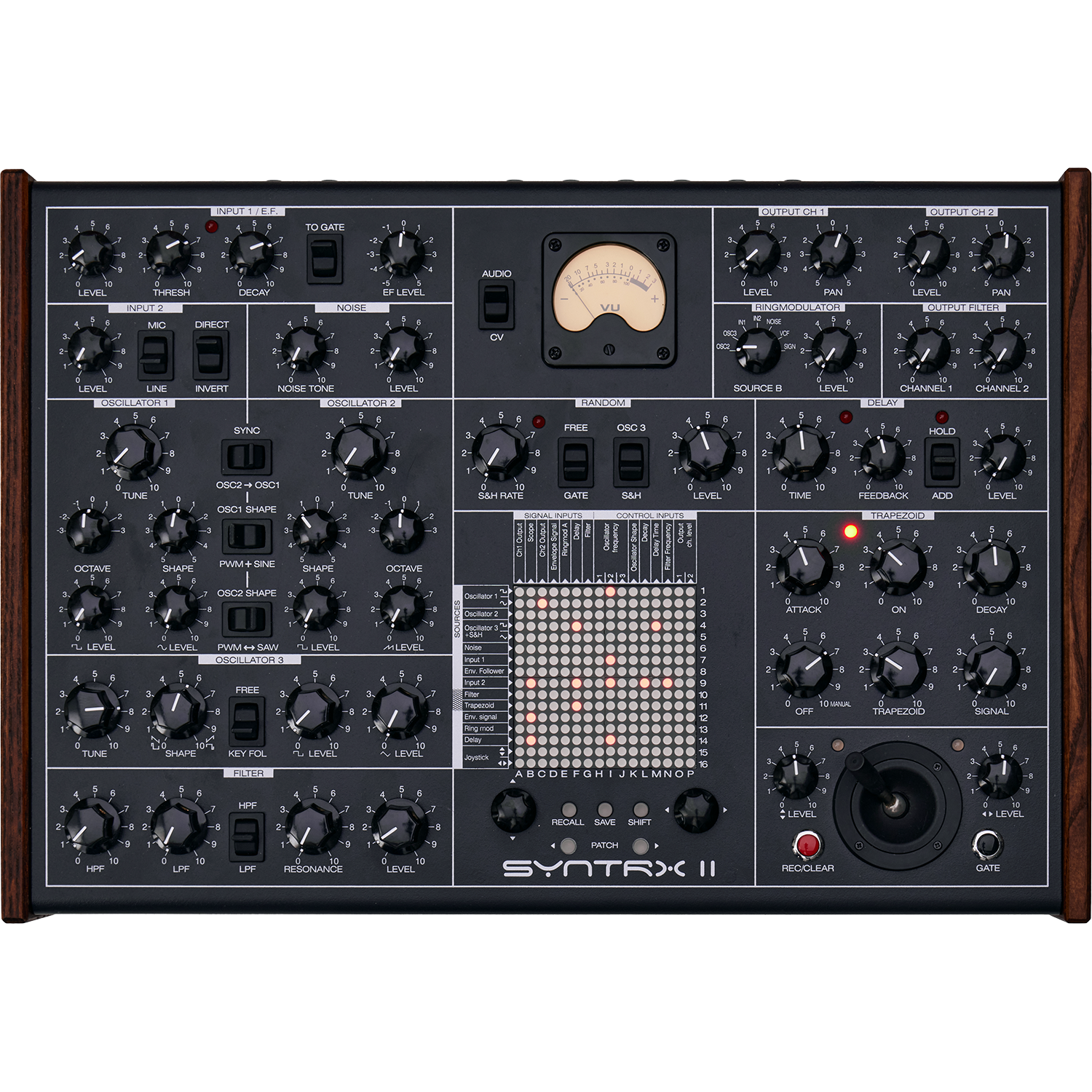

The SYNTRX II is the culmination of our analogue sound design circuits – two perfectly stable main oscillators with waveshapers, a modulation oscillator with 1V/oct tracking, a versatile multimode filter, supercharged external instrument inputs with an envelope follower, a unique, great-sounding ring modulator, a recordable joystick, built-in piano roll sequencer and stepped modulation sources, all arranged around our signature matrix mixer and topped off with powerful FX on our new DSP platform.
The SYNTRX 2 is awesome, a very different instrument from V1. My first synths were the VCS3 and the AKS and are still among my favorites today. The Syntrx 2 is pushing the boundaries of possibilities & experimentations much beyond the original analog version. The Syntrx 2 is an instant classic. - Jean Michel Jarre
Manuals book
-
User manual — May 3, 2023English
Updates refresh
-
Firmware 1.05 — Jan. 16, 2024Firmware update 1.05
Downloads cloud_download
-
Blank patch notes — Aug. 1, 2023None
FAQ question_answer
-
My SYNTRX shows 0.05 after updating instead of 1.05 - has my unit been updated correctly?Yes - your SYNTRX is updated - while we named the update 1.05 on the web in order to emphasize it as the first firmware update, the displayed version on the unit itself is 0.05
