Bassline

EAN:

4751030821726

Manufacturer:

Erica Synths

€290

VAT is not included

Worldwide delivery with UPS and Fedex

Pay securely with Credit Card or PayPal

24 month warranty

Short Description

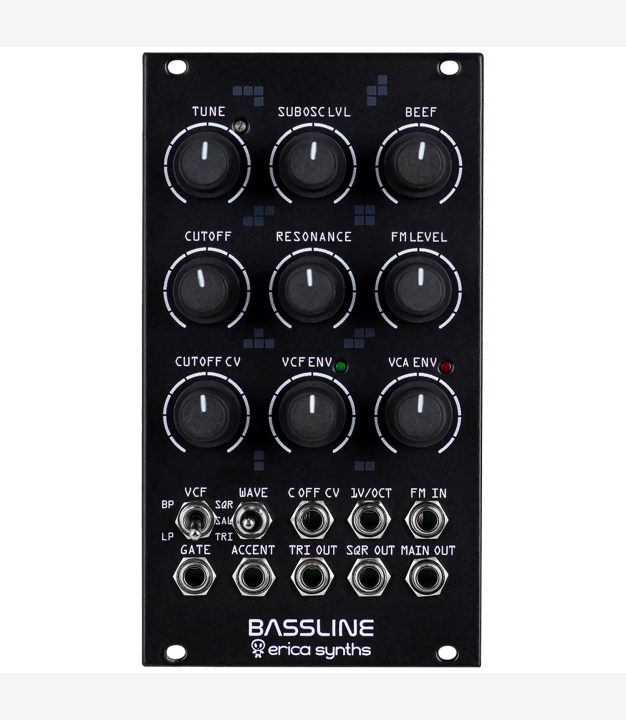

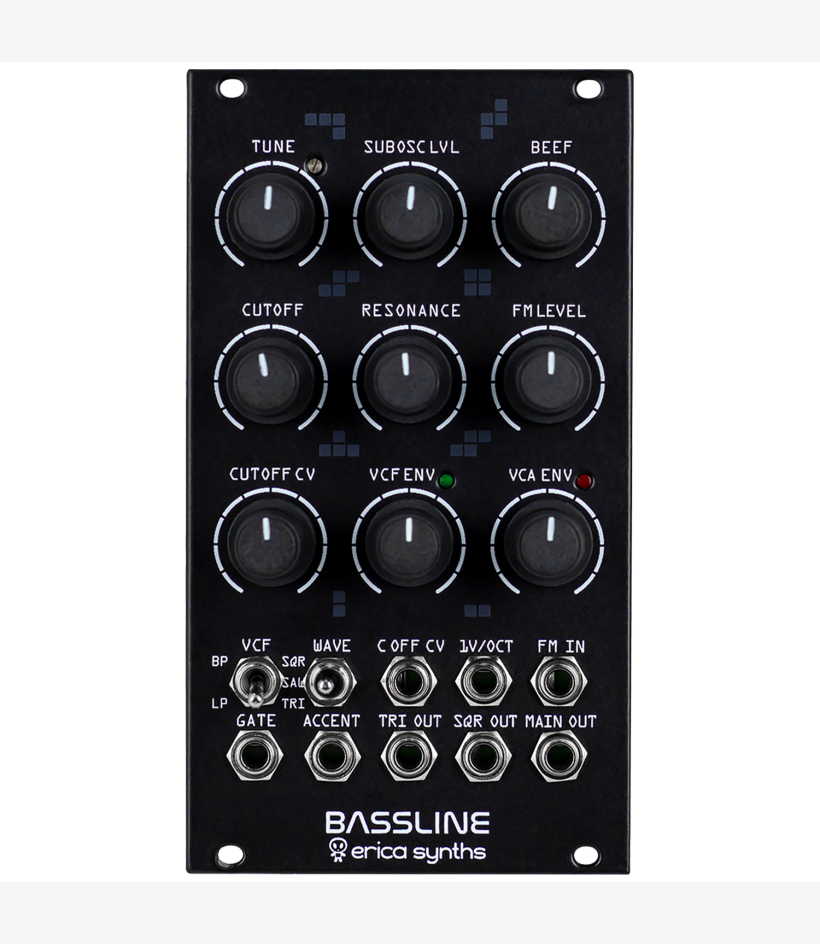

Erica Synths Bassline is fully analogue synth voice module for ultimate basslines and leads. It features AS3340 VCO with three waveforms, a filter inspired by Erica Synths Acidbox and unique features - transistor based suboscillator and two BBD lines that emulate VCO detune creating a sound of massive polysynth from one oscillator. Accent provides more expression to the bassline, by adding volume and opening the VCF slightly. Read More

Shipping & Taxes

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping

Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping

Manual

Returns Policy

Warranty

Got questions? Guides and answers to frequently asked questions. Go To Support

Product Description

Pitch range	C0-C8
Audio output level	-5...+5V
CV level (full span)	-5V-+5V
Power consumption	+110mA, -70mA
Module width	14HP
Module depth	35mm

Product Highlights

Product Features

Fully analogue circuit
Great 1V/oct tracking
Simultaneous Triangle, Square and Master outputs
Accent input
Transistor-based suboscillator
BBD-based VCO detune emulation
Integrated VCF and VCA decay envelopes
LP/BP VCF
External VCO FM and VCF cutoff CV inputs

This module to me is the star. Erica’s stroke of genius here is combining that three-waveform oscillator with a transitor-based sub-oscillator for more bass, plus their ultra-violent Acidbox-style filter, plus a detune that’s actually not a detune but two bucket brigade delays acting like one. What you get from that potent brew is leads and basslines that can go full spectrum from melody to noise, and a filter/detune combination that makes it absolutely punch people in the gut. And it makes perfect sense in a modular, because all that insanity lends itself to patching, from the frequency modulation input to modulating the filter. - CDM

As a partner to the Erica drum modules, the Bassline module is a neat, self-enclosed synth voice with its own character and a few worthwhile extras. If you don't mind the limitations, it could add a fresh acidic layer to any system.- Sound On Sound
