Black 3109 VCF/VCA

EAN:
4751030828848
Manufacturer:
Erica Synths
€160

VAT is not included

Worldwide delivery with UPS and Fedex
Pay securely with Credit Card or PayPal
24 month warranty
Short Description
VCF and VCA combo with that classic sound. Read More
Shipping & Taxes

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping

Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping

Returns Policy
Warranty
Got questions? Guides and answers to frequently asked questions. Go To Support

Product Description

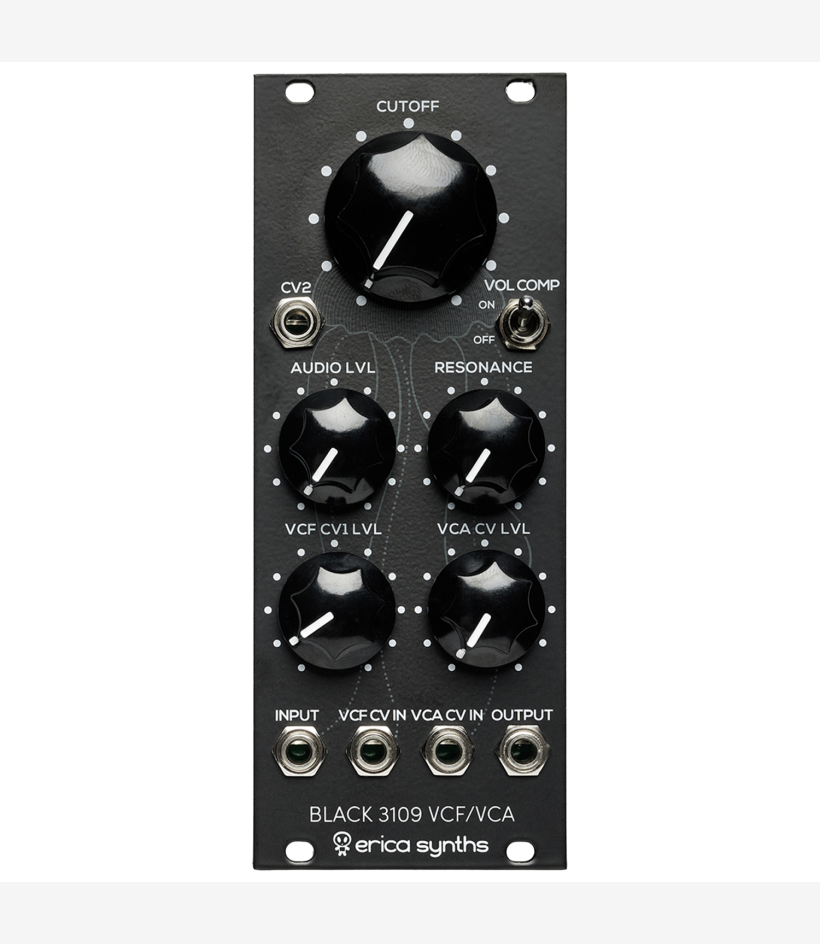

The Erica Synths Black 3109 VCF/VCA is a lowpass filter and voltage-controlled amplifier combo built around the AS3109 VCF integrated circuit, a contemporary version of the IR3109 chip, found on vintage Roland synths such as the Jupiter series, Juno series and the SH-101.

The 3109 VCF/VCA is our attempt to recreate the iconic sound of these synths, but we also aim to improve upon it. Filters based on IR3109 had several drawbacks, including a volume drop when the resonance is increased so we added a volume drop compensation as well as a built-in VCA for more versatility in compact setups. Additionally, 1V/oct tuning is implemented so you can use this module for perfect VCF keyboard tracking and also as a VCO.

Black 3109 VCF/VCA on Modulargrid

Audio level10Vptp
Cutoff CV level (full span)-5V - +5V
VCA CV level0 - +10V
Max power consumption25mA@+12V, 25mA@-12V
Module width10HP
Module depth35mm

Product Highlights

Product Features

  • 24dB/oct lowpass VCF
  • Volume drop compensation
  • Built-in VCA
  • Cutofflevel attenuverter
  • 1V/oct tracking
