Black Dual ASR EG

EAN:
4751030828756
Manufacturer:
Erica Synths
€132
€165

VAT is not included

Worldwide delivery with UPS and Fedex
Pay securely with Credit Card or PayPal
24 month warranty
Short Description
Voltage controlled dual ASR envelope. Read More
Shipping & Taxes

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping

Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping

Returns Policy
Warranty
Got questions? Guides and answers to frequently asked questions. Go To Support

Product Description

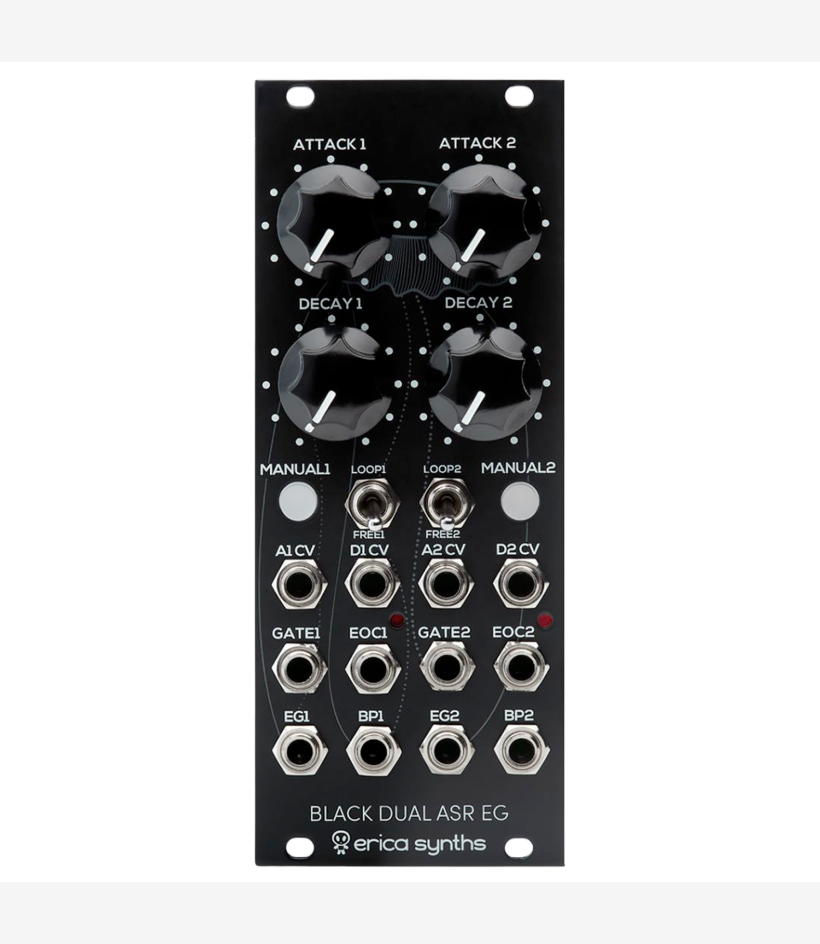

The Black Dual ASR EG is a versatile, full analogue looping AD/ASR envelope generator with voltege control over attack and release times, that can also be used as low frequency oscillator with manually and voltage controlled shape and rate. It has two identical parts, each featuring all typical envelope generator controls and bonus features – the end of the cycle output and bi-polar LFO output. When in loop mode the shortest attack and decay settings turn the module into voltage controlled drone oscillator with adjustable waveform (it will not track 1V/oct, though).

Technical specifications:

Attack time0-1” (3”)
Decay/Release time0,01” – 3” (9”)
EG level0 – 10V
Bi-polar LFO level-5V - +5V
EOC trigger level+5V
CV level (full span)-5V - +5V
Power consumption+38mA, -32mA
Module width10HP
Module depth35mm

Product Highlights

Product Features

  • Dual voltage controlled envelope generator and LFO
  • Manual and voltage control over Attack and Decay/Release
  • Adjustable LFO shape
  • Manual gate button
  • Loop/Free running switch
  • End of the cycle output
  • Bipolar LFO output
  • A jumper for the EG/LFO time configuration
