All inputs are buffered and we used stereo potentiometers (found in high quality studio mixers) for panning, IN3 has a CV controlled autopan function. You will find 6.3mm jacks for balanced outputs and headphone out with dedicated preamp.
Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.
Technical specifications:
Input signal level | -10V – +10V |
Pan CV Input signal level | -10V - +10V |
Phone amp out power | 100mW |
Power consumption | +65mA, -45mA |
Module width | 14HP |
Module depth | 30mm |
Erica Black Output module on Modulargrid
Product Highlights
Product Features
- 3 separately buffered inputs
- Balanced outputs
- High quality headphone preamp
- Separate volume controls for master out and headphones
- Stereo potentiometers for pan control
- CV controllable pan for IN 3
- Diode protection on reversed power supply
Black Output module V1
EAN:
4751030821436
Manufacturer:
Erica Synths
Worldwide delivery with UPS and Fedex
Pay securely with Credit Card or PayPal
24 month warranty
Short Description

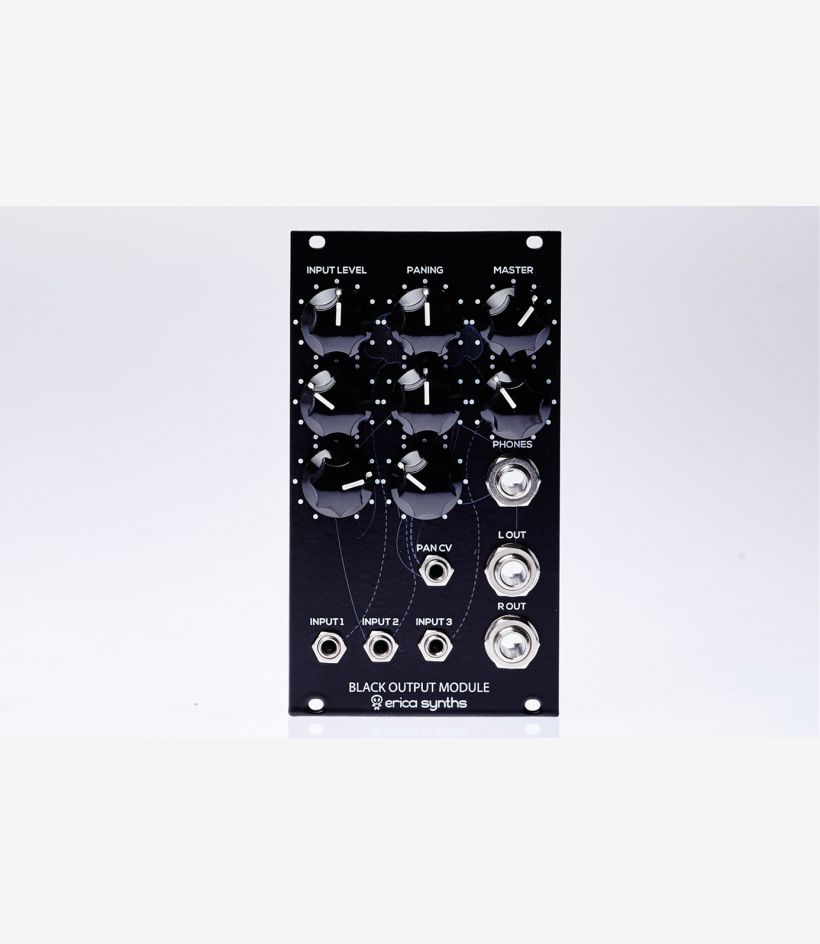

Erica Synths Black Output Module is high quality output mixer and stereo panner with balanced outputs and a headphone amplifier for monitoring your modular masterpieces.
