Product Description

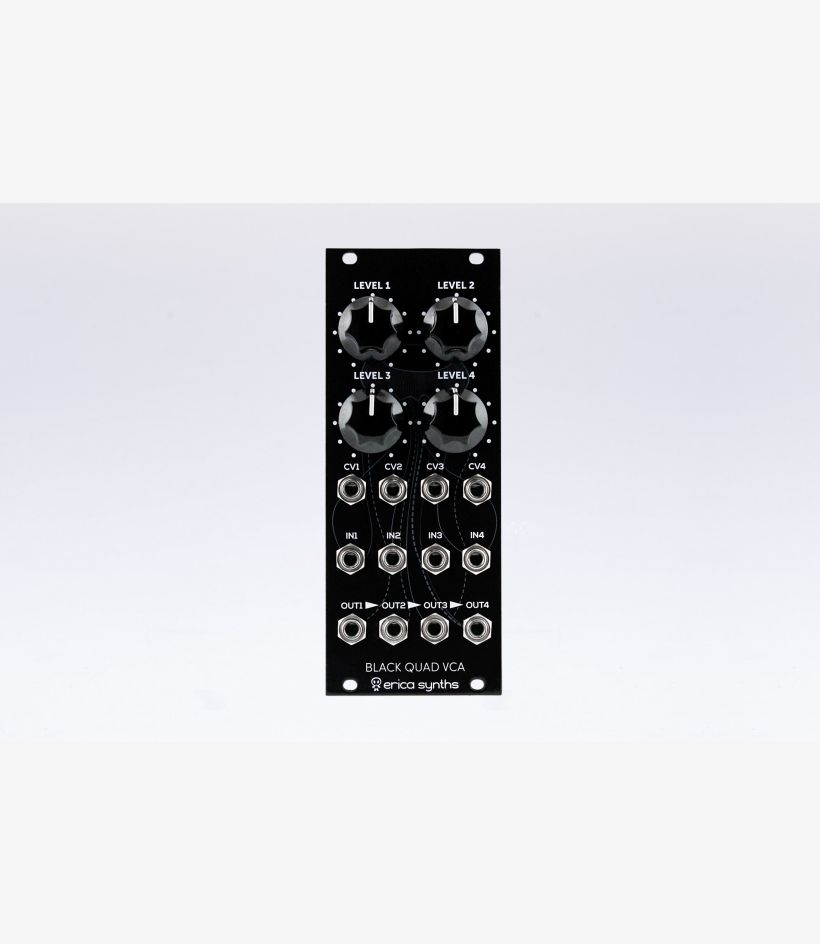

If you wish to shape the sound in advanced ways, but you also want to save some rack space then the Black Quad VCA is what you need. We have introduced a unique automatic mixing of outputs and configurable CV addressing. If no CV is applied Black Quad VCA performs as a signal mixer as well. Use it with Erica Black Dual EG/LFO and you have a compact, top quality setup!
Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.
Technical specifications:
|
CV level |
-10V – +10V |
|
Attenuation level: CV = 0V (max attenuation) CV = +10V (unity gain) |
-80dB 0dB |
|
Response |
log |
|
Power consumption |
+62mA, -60mA |
|
Module width |
10HP |
|
Module depth |
25mm |
Black Quad VCA on Modulargrid
Demo by Ben_Hex
Product Highlights
Product Features
- 4 independent VCAs
- Manual signal and CV level adjustment
- Pre-emphasis – de-emphasis circuits on all 4 channels
- Automatic output mixing
- Configurable CV addressing
Black Quad VCA
EAN:
4751030820309
Manufacturer:
Erica Synths
Worldwide delivery with UPS and Fedex
Pay securely with Credit Card or PayPal
24 month warranty
Short Description
Erica Synths Black Quad VCA, despite its compact size, is designed in line with the Black Series Hi-Fi philosophy, our custom pre-emphasis – de-emphasis circuits preserve all the nuances of the original signal.
