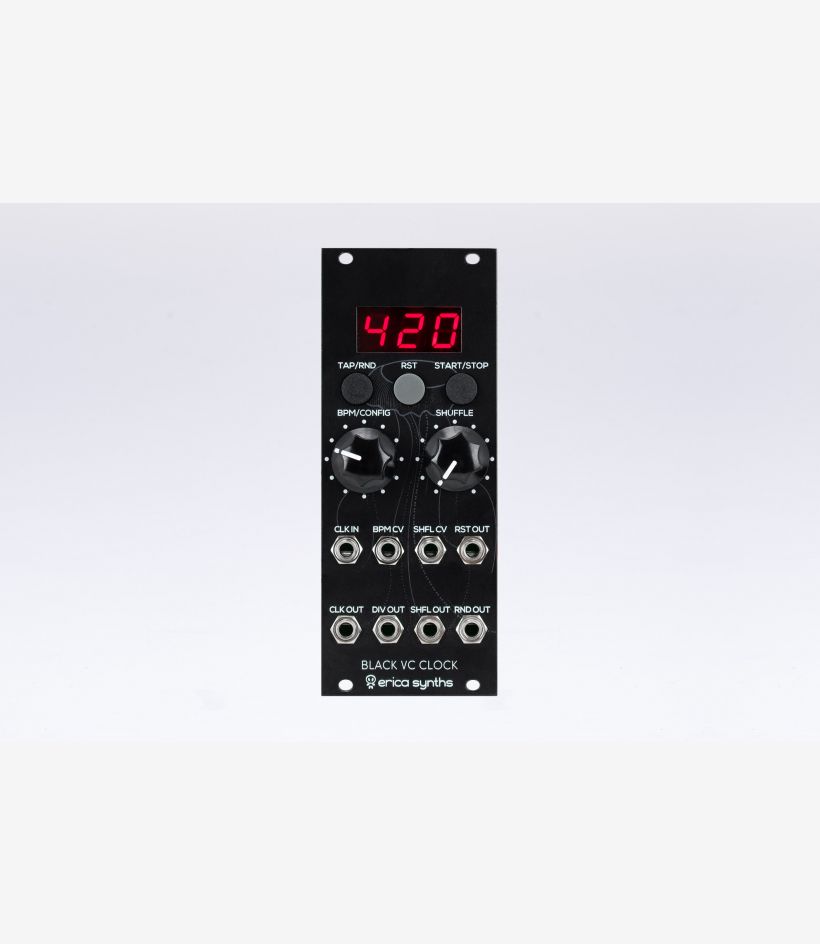

Black VC Clock V2
EAN:
4751030820118
Manufacturer:
Erica Synths
Worldwide delivery with UPS and Fedex
Pay securely with Credit Card or PayPal
24 month warranty
Short Description
Erica Synths Black VC Clock is the beating heart of your modular system.
Read More
Shipping & Taxes
EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
Manual
Returns Policy
Warranty
Got questions?
Guides and answers to frequently asked questions.
Go To Support
Product Description
This module generates several clock signals simultaneously and has some more advanced features like tap tempo, shuffle and divide, both for controlled rhythmic music production and for experiments with high level of uncertainty. You may also find the adjustable and even random duty circle of shuffling and random clock outputs interesting. Bonus feature – the module can be used as a performance time stopwatch.
Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.
Technical specifications:
Max input level | -10V - +10V |
Clock signal level | 0 - +5V |
Clock rate | 30 – 400BPM |
CV input level (full sweep) | -5V - +5V |
Power consumption | 40mA@+12V, 5mA@-12V |
Module width | 10HP |
Module depth | 25mm |
Erica Black VC Clock on Modulargrid
Demo video by John L Rice
Product Highlights
Product Features
- Manually and CV adjustable BPM
- Clock division and multiplication
- External clock input
- 3 digit BPM indicator
- Manually and CV controllable shuffle amount
- Manual and programmable sequencer reset output
- Sequencer reset output
- Adjustable duty circle of shuffling and random clock
- Performance time stopwatch
