Product Description

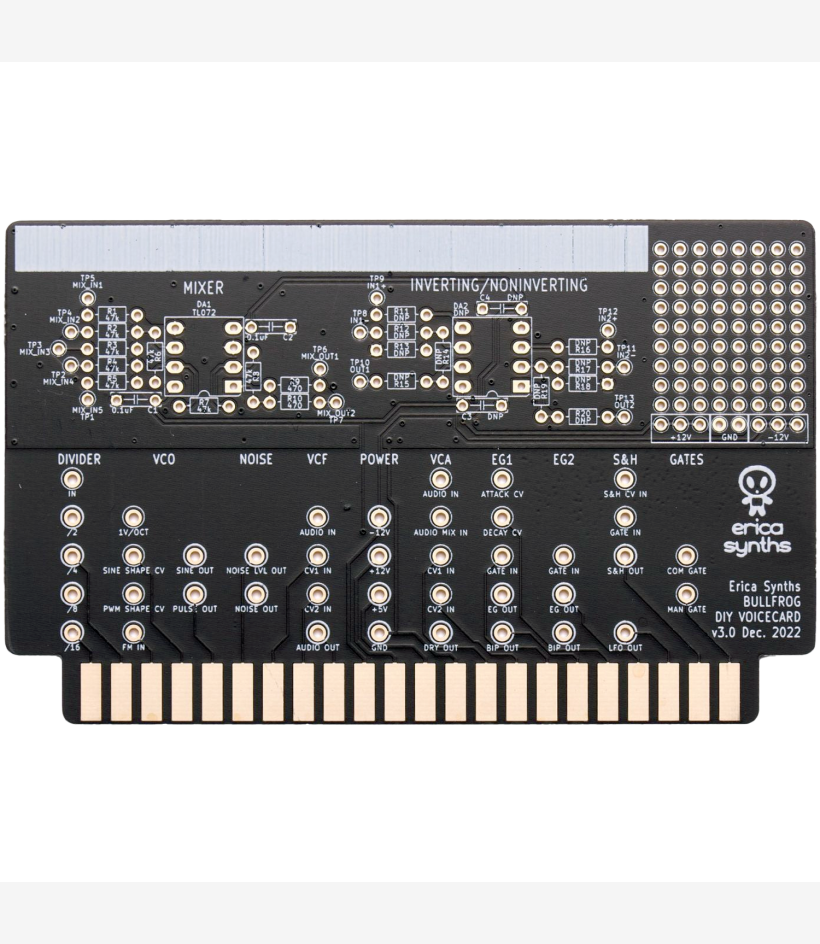

The DIY VOICECARD allows you to create custom
connections of the Bullfrog “modules”. The
voicecard mimics the connection points of the
Bullforg. In order to make connections, you need a
wire and a soldering iron (and bit of soldering
skills). Use pieces of a wire to connect the points on
the voicecard and solder the wire. We recommend
first to make connections with a patchcables
directly on the Bullfrog, and, if you find that
specific patch nice, make a DIY voicecard.
An example above shows the basic audio patch –
the pulsewave goes into the VCF, the VCF –
into VCA. The MANUAL GATE triggers both
ENVELOPE GENERATORS, and they control
VCA and VCF respectively.
For more advanced DIYers the power connections
are provided on the voicecard
Product Highlights
Product Features
- Cable free patching
- Unlimited patch points
Bullfrog DIY Voice Card 3pcs
VAT is not included
EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
