Product Description

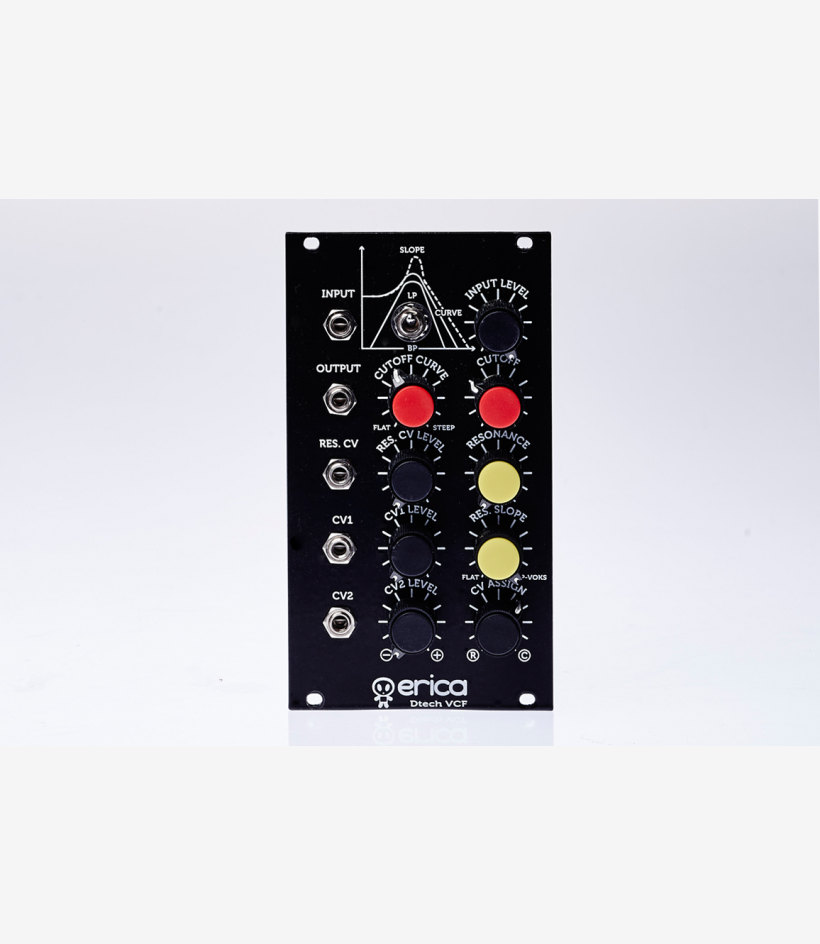

Skiff format Dtech VCF sound circuit uses the original Russian ICs K140UD12 found in Polivoks VCF, and has one of most advanced control features found in VCFs around, including resonance CV, filter curve and resonance slope adjustment and unique CV assign function. It's sound ranges from deep, bassy sounds to something even more extreme than famous Polivoks resonant screams.
Technical specifications:
| Filter Mode | LP/BP |
| LPF | approx 12dB/oct @max slope setting, approx 6dB/oct @ min slope setting |
| BPF | 6dB/oct; slope varies bandwidth (BPF lower end frequency) |
| Input signal level | 10V ptp |
| CV signal level | 10V ptp |
| Power supply | eurorack standard +-12V |
| Power consumption | 62mA (+12V), 56mA (-12V) |
| Module width | 14HP |
| Module depth | 45mm |
For those who purchasing partial kits know that sizes are:
Small Knobs 19 mm
Medium Knobs 24 mm
Large Knobs 28 mm
Disclaimer: please, if you have any questions on missing parts or similar issues, contact us within 1 month after receiving the kit!
Erica Synths Dtech VCF on Modulargrid
See the build thread @ Muffwigglers
DIY Dtech VCF (assembled)
