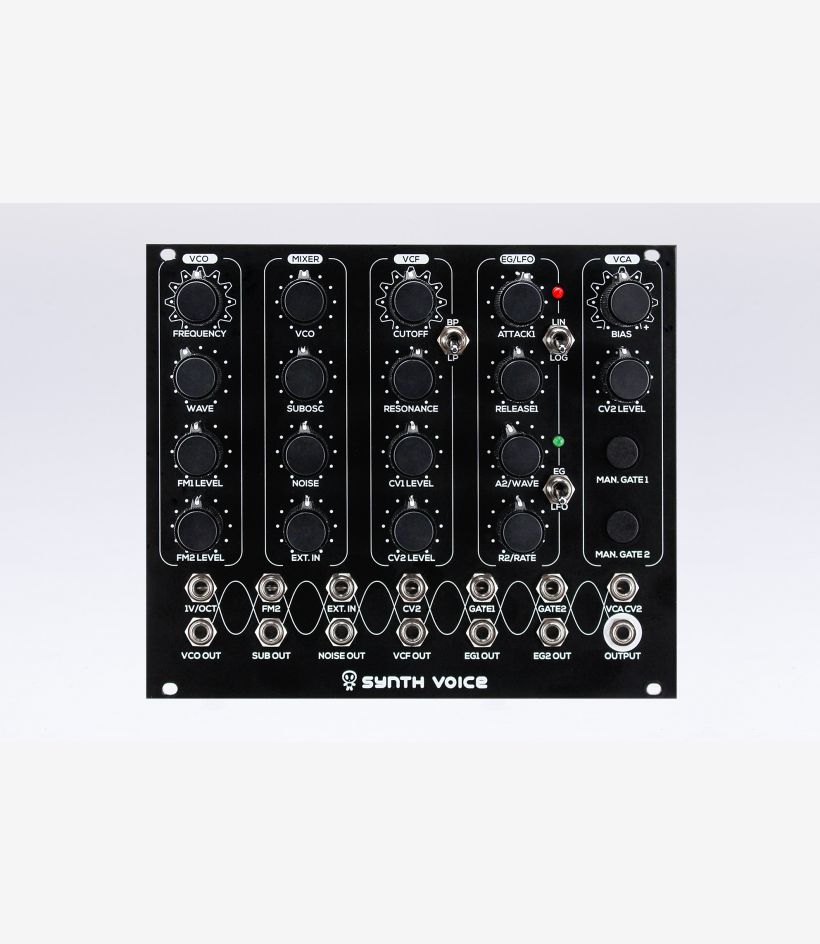

DIY Synth Voice Full kit
EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
Product Description
When developing Erica Black Series and Pico Series modules, we accumulated quite a lot of know-how on compact and great sounding designs, so we decided to share some of it with the DIY community, therefore Erica Synths proudly presents – DIY Synth Voice module! In order to make the module more compact and reliable in tuning, it has digital/analogue design. VCO and envelope generators/LFOs are digital, other parts are analogue. Digital parts are designed arround pre-programmed MCU board, which comes with a kit presoldered on a small contoller board. Chain up several Erica Synths DIY Synth Voice modules and you have a versatile polysynth!
Technical specifications:
| VCO range | C1 – C8 |
| Audio output signal level | 10V ptp |
| LFO Ouput signal level | -5V – +5V |
| EG Ouput signal level | 0V – +10V |
| EG1 attack time | 0 – 500ms |
| EG1 release time | 0 – 2" |
| EG2 attack time | 0 – 500ms |
| EG2 release time | 0 – 1" |
| LFO Frequency | 0.1Hz – 70Hz |
| VCA attenuation level | 80dB |
| Power consumption | 82mA@+12V, 50mA@-12V |
| Module width | 30HP |
| Module depth | 35mm |
Effective January 1 2021 Erica Synths will not provide technical support for DIY projects. As all Erica Synths DIY Kits are now sold out, we offer them as opensource build projects on Github. If you have trouble with building any of Erica Synths DIY projects, please, for advice & support refer to forums & DIY community. All the rare components are available at largest DIY retailers or here.
Product Highlights
Product Features
- VCO with 16 waves and manual wave morphing
- -1 oct suboscillator
- White noise generator
- External audio input
- Audio Mixer
- LP/BP VCF inspired by Black Polivoks VCF
- Lin/log ASR envelope generator with looping function
- Lin ASR EG/LFO with looping function
- 9 LFO waves with wave morphing
- Tap tempo and LFO sync
- LFO frequency multiplication (x2, x4) and division (/2, /4) in sync mode
- VCA with bias control
- Auto callibration for better 1V/oct tuning
