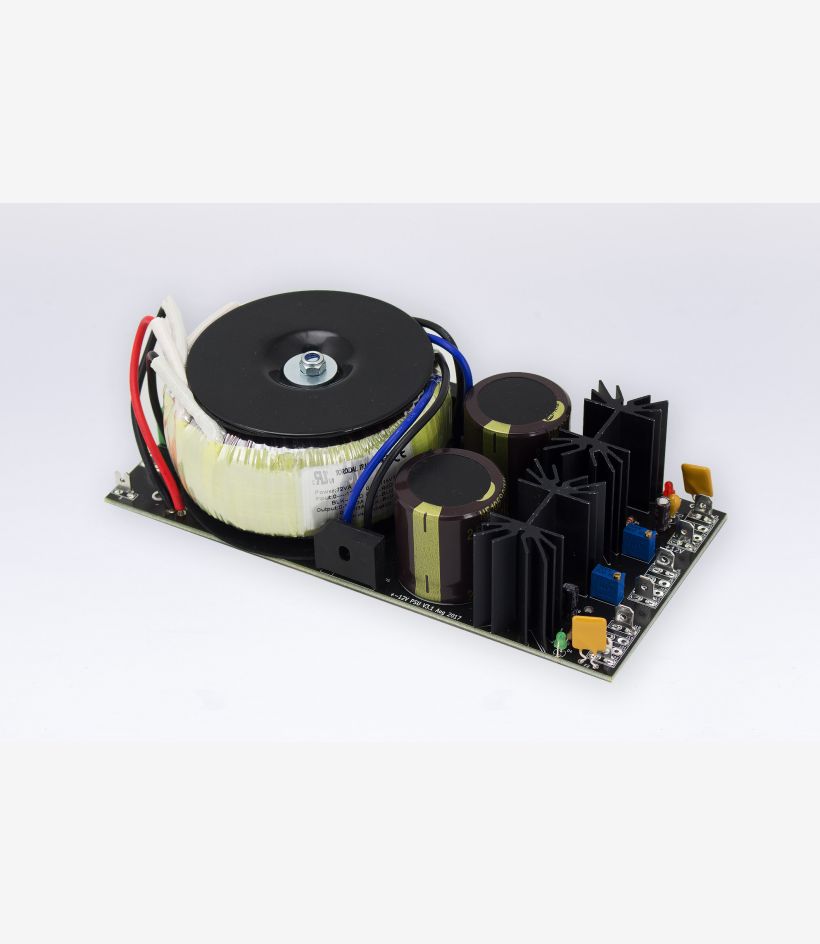

Product Description
It comes in two versions:
1) 1,25A on each +12V and -12V rail. This version uses highly popular LM317 and LM337 voltage regulators
2) 2,5A on each +12V and -12V rail. This version uses more contemporary and powerful voltage regulators and it can be used in really large modular setups.
Both versions can be built on the same PCB, just check the schematics on components that need to be used for each configuration.
NB! Installation of this module require skills to work with high voltages! It's at your own risk!
Shopping cart:
DIY PSU 1,25A @Mouser
DIY PSU 2,5A @Mouser
+LT1085CT @Farnell
+LT1185CT @Farnell
Effective January 1 2021 Erica Synths will not provide technical support for DIY projects. As all Erica Synths DIY Kits are now sold out, we offer them as opensource build projects on Github. If you have trouble with building any of Erica Synths DIY projects, please, for advice & support refer to forums & DIY community. All the rare components are available at largest DIY retailers or here.
