Product Description

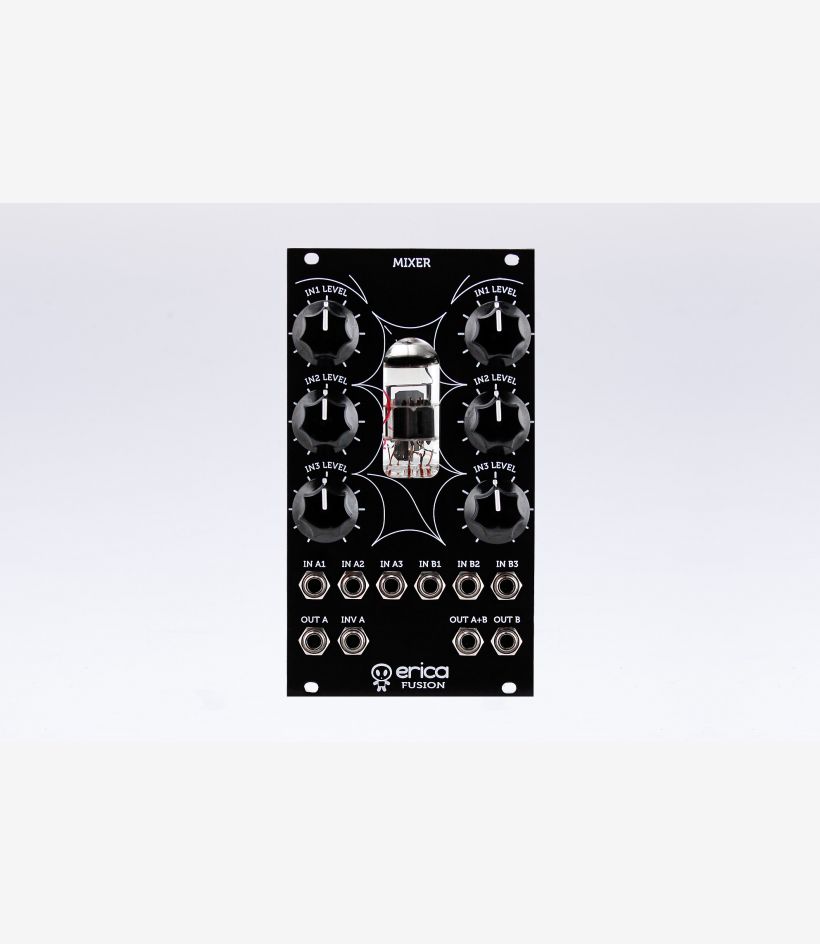

Use the Fusion Mixer as two independent 3-input mixers (also for stereo signal mixing) or a 6-input mixer. Special feature of the Fusion Mixer – great tube overdrive effects when level knobs are set to 3 o’clock or above. When used with drum machines, it even emulates sidechain compressors. When used to mix signals from VCOs Fusion Mixer it works as waveshaper, especially, if pulse width modulated pulse signals is used in one of inputs.
All Fusion modules by default are configured to work with regular eurorack PSU.
Due to the fact that cold tube heaters have lower resistance, Fusion modules have significant power consumption peak at startup, when power consumption almost doubles for 1-2 seconds. This is not a problem with linear PSUs that have power inertia, but may cause switching PSU internal protection to turn off power supply. Please make sure your PSU has some headroom before installing multiple Fusion modules.
If you need a 6 to 6 pin power cable included to your order (suitable for 6VAC PSU), please write that in the comment section during checkout process.
Would I build a setup around valve modules? I was expecting to say no, but having spent time with the Fusion setup I’m surprised to say I actually would. It’s distinctive, it’s versatile, but more importantly it’s fun. Music has always been about philosophies and aesthetic choices; Erica understand that and offer something fantastically different with the Fusion series. These are not sterile, surgical tools. Far from it. And they’re all the better for that. - Attack Magazine
Technical specifications:
| Input signal level | up to 20V ptp |
| Output signal level | 10V ptp |
| Mixer GAIN | 1 |
| Power supply | bipolar +-12V , eurorack standard |
| Power consumption | Eurorack PSU configuration: 160mA@+12V, 10mA@-12V |
| Module width | 14HP |
| Module depth | 25mm |
Please, refer to the user manual below for all possible power supply configurations!
Erica Fusion Mixer on Modulargrid
Demo by Ben_Hex
Product Highlights
Product Features
- 6 audio inputs
- Two independent 3-input mixer
- Sum of all 6-inputs
- Soft tube overdrive
Fusion Mixer V3
EAN:
4751030820408
Manufacturer:
Erica Synths
Worldwide delivery with UPS and Fedex
Pay securely with Credit Card or PayPal
24 month warranty
Short Description
Erica Synths Fusion dual Mixer is designed to mix and overdrive audio signals on the vacuum tube.
