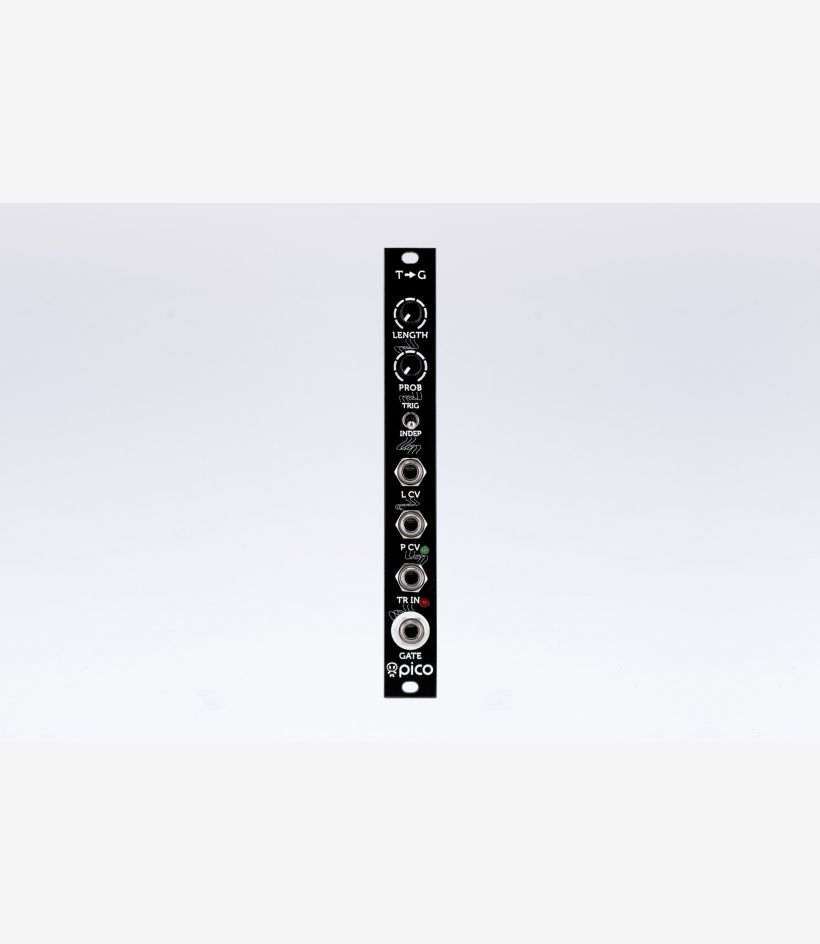

Pico T→G
EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
Product Description
This module can turn a simple trigger sequencer into powerful musical pattern generator. The creation of this module was inspired by Ryoji Ikeda compositions.
With Pico Series we challenged ourselves – can we make ANY superior functionality synth module 3HP wide and affordable? Yes, we can.
Technical specification:
|
Incoming trigger
amplitude |
0V - +5V (max +10V) |
|
Min incoming trigger
length |
1ms |
|
Output gate amplitude |
0V - +5V |
|
Power consumption |
+14mA, -9mA |
|
Module width |
3HP |
|
Module depth |
35mm |
Erica Pico TG on Modulargrid
Product Highlights
Product Features
- Manually and CV controlled gate length
- Manually and CV controlled gate skipping probability
- Triggered and Independent modes
- Incoming trigger in and output gate control LEDs
