Resonant Filterbank

EAN:
4752275000952
Manufacturer:
Erica Synths
€660

VAT is not included

Worldwide delivery with UPS and Fedex
Pay securely with Credit Card or PayPal
24 month warranty
Short Description
Performance and studio-ready analog stereo filterbank. Read More
Shipping & Taxes

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping

Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping

Returns Policy
Warranty
Got questions? Guides and answers to frequently asked questions. Go To Support

Product Description

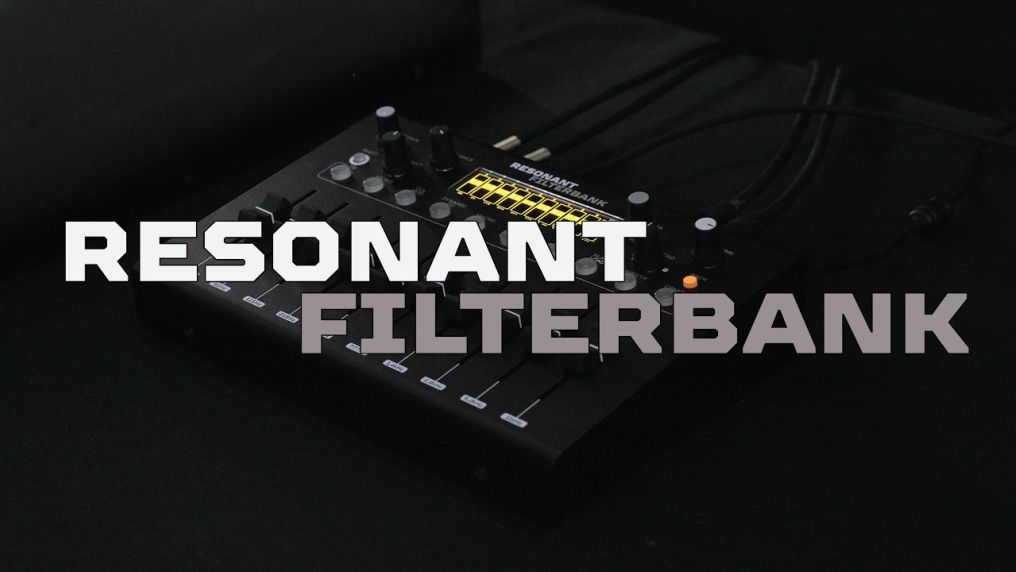

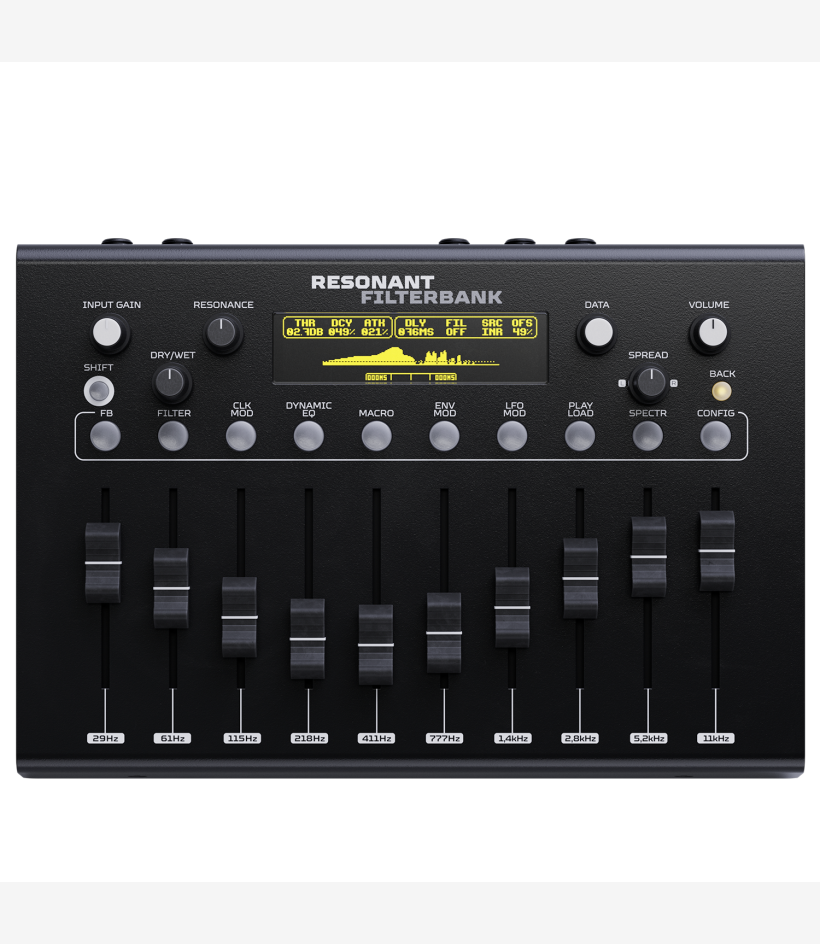

Desktop Resonant Filterbank is a performance and studio production-friendly FX unit - an analog stereo filterbank. It has a set of ten bandpass filters with hands-on control over each bands’ boost or cut and complex control configurations that can turn it into an unconventional multimode filter with an envelope follower and an instrument on its own when played with various resonance settings or even an experimental sound generator for no-input mixer-like setups.

You can use it with synthesizers, drum machines, modular setups and thanks to an analogue GAIN STAGE that boosts incoming signals up to +24dB, with guitars and pretty much any other instrument. This is a tool that can let you discover entirely new sounds from the instruments you thought you knew inside-out.

User snapshots (presets), MIDI control over all parameters and a sleek aluminium case to match our lineup of compact desktop units will make the Resonant Filterbank and integral part of many studio and live performance setups.

Product Highlights

Product Features

  • Analog 10-band stereo filterbank
  • Filter frequencies: 29 Hz, 61 Hz, 115 Hz, 218 Hz, 411 Hz, 777
  • Hz, 1.5 kHz, 2.8 kHz, 5.2 kHz, 11 kHz
  • Filter slope: 17 db/decade
  • High quality film capacitors in the bandpass filters
  • Manual and MIDI CC controlled bands’ boost and cut
  • Configurable resonance feedback loops
  • Manual and MIDI CC controlled resonance
  • MIDI clock synchronization of events
  • Multimode filter mode
  • Spectral analyzer mode
  • Dynamic spectral compressor mode
  • 20 independent LFOs
  • 20 independent envelope followers
  • User snapshot (preset) memory with 128 slots
  • Discrete and morphing snapshot change
  • 6.3mm balanced stereo inputs and outputs
  • Configurable footswitch input
  • DIN 5 MIDI IN and MIDI OUT
  • Dimensions: 25,8 x 17,6 x 7 cm (including knobs)
  • Mass: 1,1 kg
