Black Modulator V2
special offer warning
EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
- local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
- account_balance_wallet Pay securely with Credit Card or PayPal
- beach_access 24 month warranty

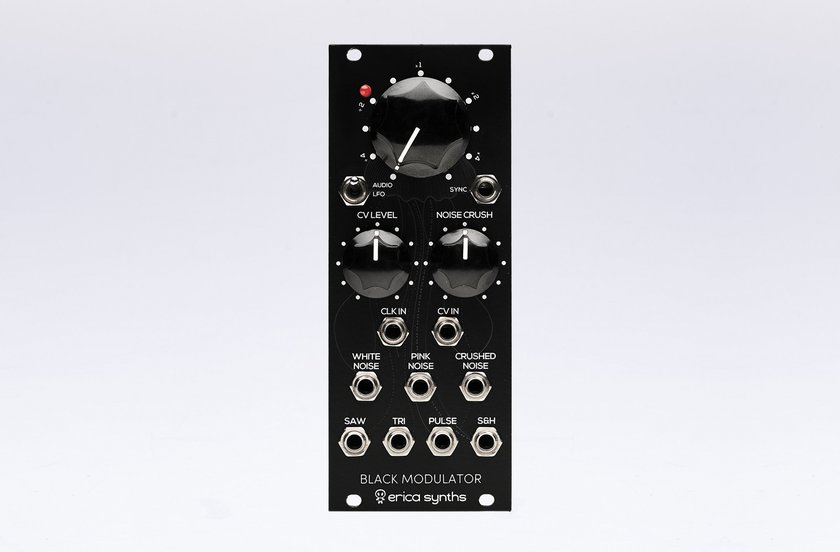

Erica Synths Black Modulator is a modulation and noise source
Features
- LFO with saw, triangle and pulse outputs
- LFO/Audio range switch, LFO synchronization to the external clock
- Zener diode-based noise generator for massive, full spectrum white noise
- Pink noise filter
- Noise crush knob and crushed noise output – fade from 1 bit noise to individual random trigger bursts
- Clockable sample and hold circuit
- S&H circuit based on rare, high quality S&H chip
- S&H CV and clock inputs
The module consists of LFO/audio frequency oscillator with three simultaneous waveform outputs, Zener diode-based noise generator with three noise flavors and clockable S&H circuit.
Technical specifications:
| LFO frequency | 0,2 Hz - 25 Hz |
| Audio rate frequency | 18 Hz - 750 Hz |
| LFO output level | -5 - +5 |
| Noise output level | 10Vptp |
| S&H CV input level | up to 20Vptp |
| Power consumption | 48 mA @ +12V 36 mA @ -12V |
| Module width | 10 HP |
| Module depth | 25 mm |
