Product Description
Waves, wavetables, FXes and other settings can be saved and recalled from the memory instantly. The module has two outputs – the main output and the output with configurable suboscillator.
NB! To have the module functionality up to date, we recommend you to check the Erica Synths home pageor our social media from time to timefor announcements about firmware updates for the Graphic VCO. You can update the firmware of the module via miniUSB cable. More detailed instructions of the firmware update can be found in the User Manual.
Firmware Updater standalone download links:
Windows Version - here
Mac version - here
The sound is clean, modern, punchy and detailed thanks to the unit running at 96kHz — quite different to some low bit-rate wavetable oscillators on the market. Wavetable interpolation is smooth as butter and with the built-in effects you can dirty things up in many different ways. The module scores highly on the sound front. The Graphic VCO is a very capable oscillator module with excellent sound quality and a lot of features that could make it the right choice, especially if live performance is your thing. - Sound On Sound
The bottom line is that the Graphic VCO is a joy to use. It’s a module that’s unashamedly digital, yet unmistakably eurorack. I think Erica showed a great deal of careful judgement and restraint in the design of this module. It would have been easy to have made it bloated and cumbersome trying to cram as many features as possible into it, but they kept it fairly simple which keeps the module fun and immediate in use. It’s capable of a huge tonal palette ranging from beautiful to brutal that is bound to fit in with a lot of different styles and systems. - Ask Audio
The ability to draw and then effortlessly jump between different custom digital waveforms in this way feels unique on the Eurorack stage, and allows for a wide range of tones and transitions between them. - Orb Mag
Technical specifications:
| Audio output amplitude | 10Vptp |
| Octave range | C0-C8 |
| Sample rate | 96kHz |
| Unipolar CV input range | 0 -+10V |
| Bipolar CV input range | -10V -+10V |
| Panel Width | 16 HP |
| Module depth | 30mm |
| Power consumption | 152mA@+12V, 20mA@-12V |
Erica Graphic VCO on Modulargrid
Firmware upgrader standalone (Windows): DOWNLOAD
Firmware upgrader standalone (Mac): DOWNLOAD
One of the greatest music producer of our times - Randall Dunn recently wrote a little piece about sounds he love. He says: “We were both pretty hungry in Michigan in the 80's looking for new sounds and music. [..] Mostly played on Synclavier and a Roland JD 800 I began a strange love affair with late era digital synths like those and the PPG wave and why sometimes I still prefer the brutality of a wavetable to a Minimoog.”
Of course, everybody loves sound of an analogue synth. It is a non-questionable core value of huge and influential tradition started in the second part of 20th century. However, if you are bored just for a minute to take part in that old collective ritual of millions, if you feel that rebel growing inside of you, if you are hungry to discover your own path, your own signature sound, if you really would love to jump into tomorrow now…, then Graphic VCO is your necessary ally. Draw your own waveforms. Sculpt your own voice. Master your own musical gesture. And you may find yourself in a new beautiful world. Indeed.
As Leonardo once said: “If I had a Graphic VCO I would have never wasted so much time with those noiseless paintings…”
Product Highlights
Product Features
- Versatile waveform designer
- Morphing between two selected waves
- Wavetable design
- Wavetable matrix design
- Versatile waveform alteration – FM, phase
- distortion, ring modulation, wavefold,
- wavewrap, bitcrush
- 32 classic wavetables included
- Module state saving (Snapshots)
- Configurable suboscillator output
- Suboscillator tuning from -1 to -24 semitones
- Suboscilator detuning (+/- 50 cents)
- Skiff-friendly design
- Firmware upgrade via USB
Graphic VCO
EAN:
4751030821580
Manufacturer:
Erica Synths
€230
VAT is not included
Worldwide delivery with UPS and Fedex
Pay securely with Credit Card or PayPal
24 month warranty
Short Description

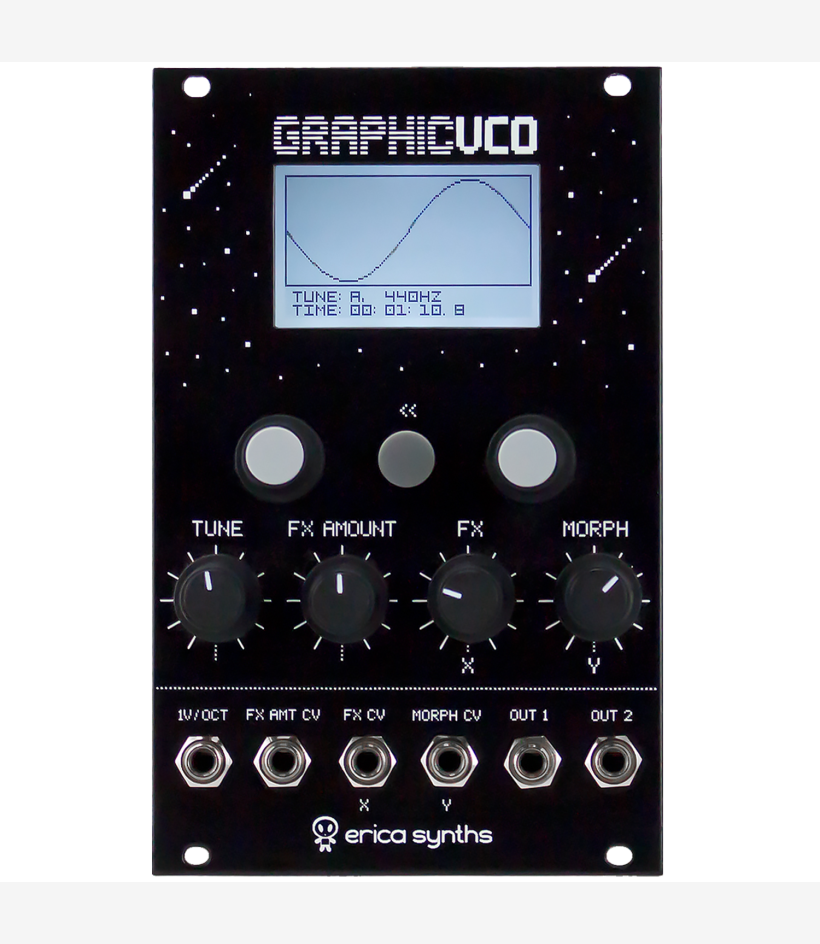

Erica Synths Graphic VCO allows you to draw your own waveforms, arrange them in wavetables and wavetable banks, morph between two selected waves and alter the resulting wave in advanced ways (FXes) – apply FM, phase distortion, ring modulation, wavefold/wavewrap, bitcrush.
Read More
Shipping & Taxes
EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
Manual
Returns Policy
Warranty
FAQ
The Google Chrome firmware upgrader doesn't work - how do I update my module?
You can download the standalone version of the firmware upgrader for Windows/Mac from this very page - scroll up and you will find download links.
My Graphic VCO’s 1V/Oct input is not tracking incoming CV signals correctly, it tracks only the highest notes from the sequencer/keyboard, but sounds which come from the VCO are pretty low. What should I do?
Please, make sure if your device’s output signal is unipolar (from 0V to +10V) because the Graphic VCO’s 1V/Oct input is intended to track only positive CV signals.
In case your device has a bipolar output signal (from -5V to +5V), we recommend you to use the Pico MScale: the upper part of this module adds +5V offset, so the signal from sequencer, which gives values from -5V to +5V for 1V/Oct, transforms into a signal which is compatible to the Graphic VCO.
In case your device has a bipolar output signal (from -5V to +5V), we recommend you to use the Pico MScale: the upper part of this module adds +5V offset, so the signal from sequencer, which gives values from -5V to +5V for 1V/Oct, transforms into a signal which is compatible to the Graphic VCO.
My Graphic VCO’s 1V/Oct input is not tracking incoming CV signals correctly, it tracks only the highest notes from the sequencer/keyboard. What should I do?
If the VCO tracks notes only above C4 or higher, please, make sure that the TUNE knob is all way counter-clockwise, because this knob defines the lowest frequency you can get from the VCO.
