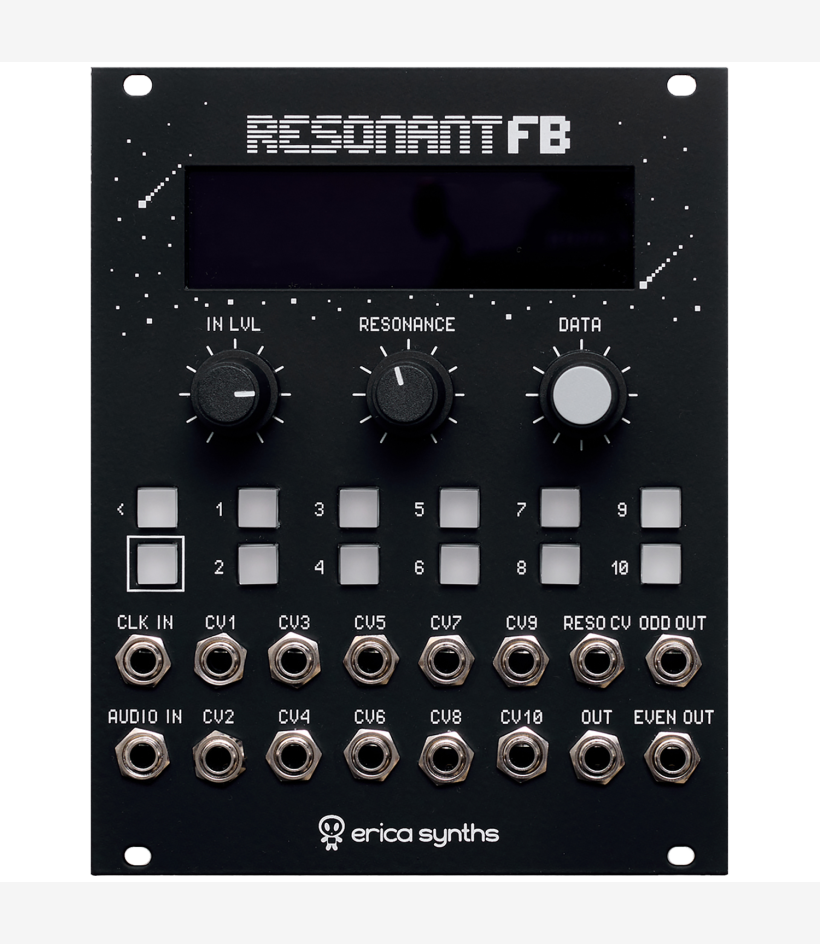

Graphic Resonant FB

EAN:

4752275000754

Manufacturer:

Erica Synths

€320

VAT is not included

Worldwide delivery with UPS and Fedex

Pay securely with Credit Card or PayPal

24 month warranty

Short Description

The Graphic Resonant Filterbank (FB) is a ten-band analogue filterbank with digital control over each bands’ boost or cut. Each band can be controlled individually via CV or manually, while complex control configurations turn the filterbank into an unconventional multimode filter and even an instrument in its own right when played with various resonance settings. The Expander module (works exclusively with the Graphic Resonant Filterbank and is available separately) provides hands-on adjustment of boost and cut for all bands. Read More

Shipping & Taxes

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping

Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping

Manual

Update

Returns Policy

Warranty

Got questions? Guides and answers to frequently asked questions. Go To Support

Product Description

SPECIFICATIONS:

Audio signal amplitude	10Vptp
Bandpass filter frequencies	29Hz,61Hz,115Hz,218Hz,411Hz,777Hz, 1,5kHz, 2,8kHz, 5,2kHz,11kHz +-10%
CV input amplitude (configurable)	-10V - +10V
Number of presets	128
Panel width	20HP
Module depth	30mm
Power consumption	(with EXP) 138(145)mA@+12V,50mA@-12V

"The new Erica Synths RESONANT FB is an unavoidable sonic masterpiece. After 40+ years of dealing with electronic music synthesis, it is rare for me to get sonically surprised... THIS DID! It is delightfully addictive, surprisingly fresh, powerfully gratifying, direct, and responsive, allowing for a plethora of unique sounds, in any of its different modes. (And yes, you can save your own presets too!)

So, Try it at your own peril: You will not come back sonically the same! (I know: sounds huber cliché: BUT IT IS DARN TRUE!) I plan to bring it to our "Hans Zimmer Live" US 2024 Fall tour!" - Pedro Eustache

Graphic Resonant FB on Modulargrid

Product Highlights

Product Features

Analogue 10 band filterbank
Saveable presets for filterbank, filter modes, dynamic EQ, and resonance settings
Main, even and odd outputs
Manual and voltage-controlled band boost/cut
Configurable resonance feedback loops
Manual and voltage-controlled resonance
Clock input for synchronization of events with a master clock source
Multimode filter mode
Spectral analyzer mode
Dynamic spectral compressor mode
Discrete and morphing pattern change
Configurable CV inputs
Expander module for immediate access to band levels
Skiff-friendly design
