Black series

Black Joystick 2

+21% VAT for individual customers in EU without EU VAT registration number + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty

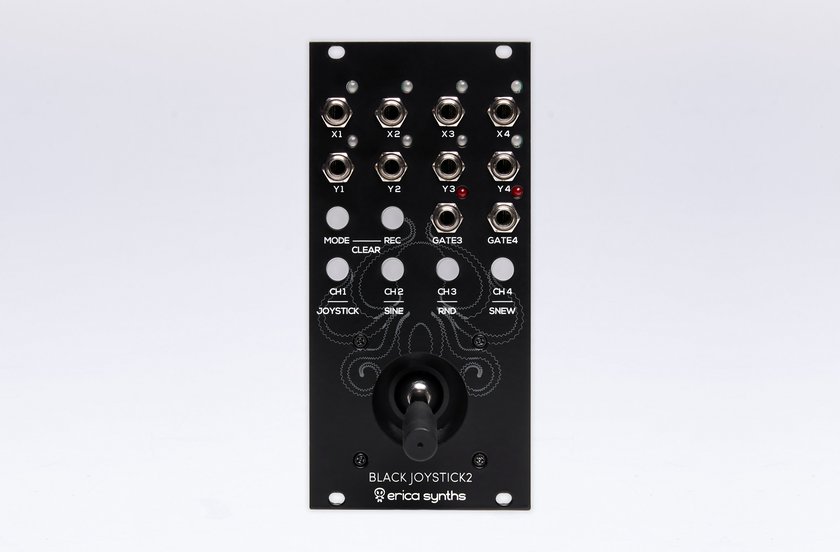

Erica Synths Black Joystick2 is 4 channel (2 axis on each channel) multi functional CV and sound source – joystick, movement recorder, distinct LFO and drone/noise oscillator. It provides great interaction with the modular system and allows to develop unconventional modulation patterns easily.

Features

  • 8 simultaneous CV outputs
  • 2 gate outputs
  • 4 motion record channels
  • Sine and Random LFOs with adjustable frequency and amplitude
  • Drone/noise oscillator
  • Gate record
  • Two 4-position CV panners
  • Skiff friendly design
  • An octopus

Erica Black Series include high-end, unique functionality and superior quality modules. Only the best, highest quality components are used, all inputs and outputs are protected against undesired overvoltage. Erica Black Series consist of range of modules that are needed to put together entire synth.

Technical specifications:

CV output amplitude-5V – +5V
LFO frequency range0.1Hz – 5Hz
Drone oscillator frequency range50Hz - 1kHz
Max motion record time8” per channel
Panel width12HP
Module depth30mm
Power consumption71mA@+12V, 20mA@-12V
