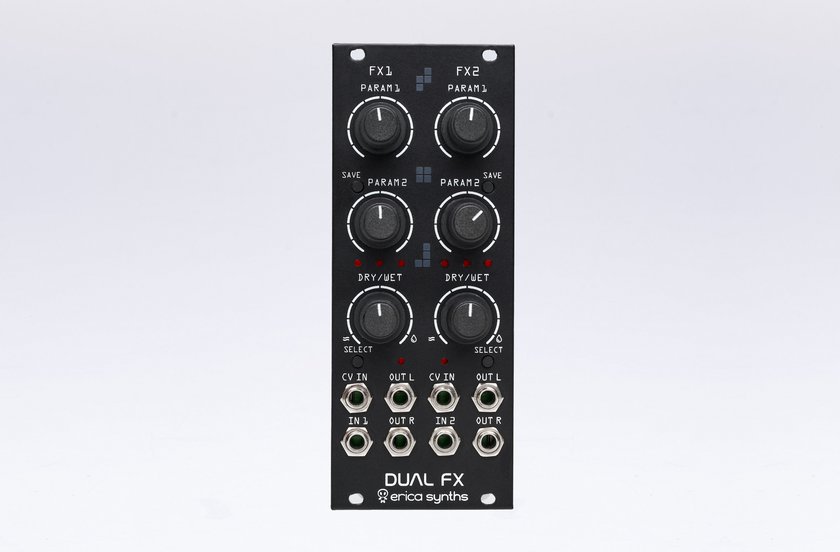

To add some space to your compositions and nuances in sound design Erica Synths Dual FX module brings you two identical sections of 8 custom effects with two adjustable and CV controllable parameters.

Dual FX combines two Spin FV-1 chips in one module, each filled with eight custom effect programs with two adjustable and CV controlled parameters per effect and analogue dry/wet circuit. All parameter settings can be saved with the effect and recalled instantly during the performance. Also the output of the first FX section is normalised to the second input so creating huge layers of effects is easy.

FX:

  • Mono delay
  • Stereo delay
  • Hi-pass delay
  • Big reverb
  • Saturated reverb
  • Stalker reverb
  • Ripper
  • Dual pitch shifter

The module is tailored so it's perfectly suitable for playing live; we have only three parameters in each section (two parameters apply the selected algorithm, and the third is Dry / Wet) but they are so finely chosen that actually nothing more is required to achieve happiness. Each section offers "only" eight algorithms, but again - it's a blessing, because thanks to that the user does not have to think what to choose for an hour : three delays, three reverb FX, double pitch shifter and the Ripper. - Estrada I Studio

Technical specs:

Audio output level-5...+5V
CV level (full span)-5...+5V
Power consumption118mA@+12V, 61mA@-12V
Module width10HP
Module depth45mm

Manuals book

Downloads cloud_download
