Pico series

Pico VCA2

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty

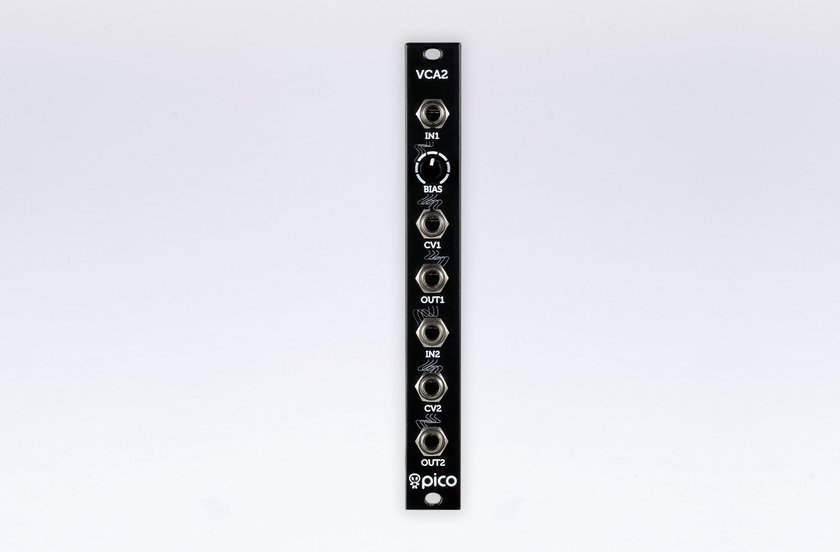

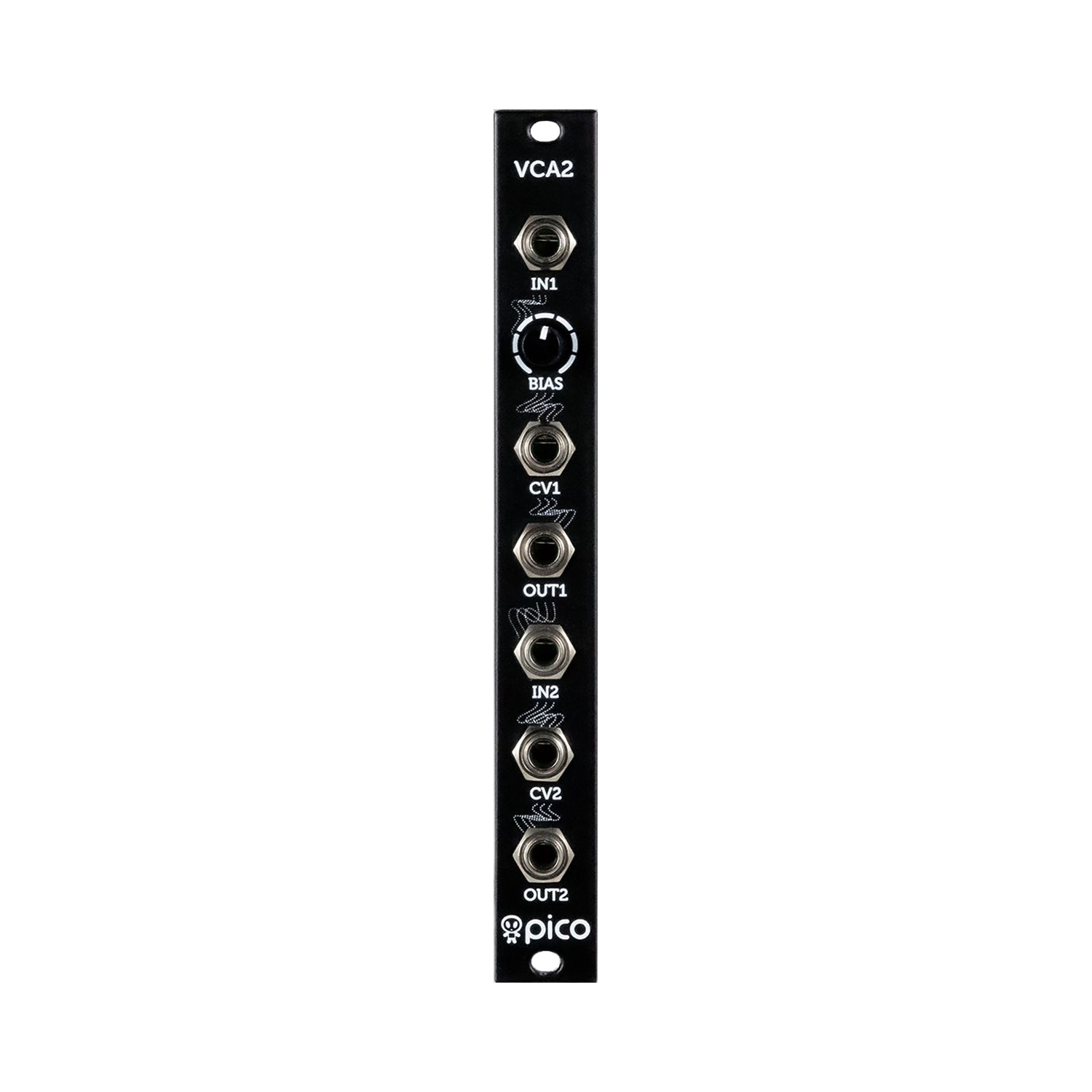

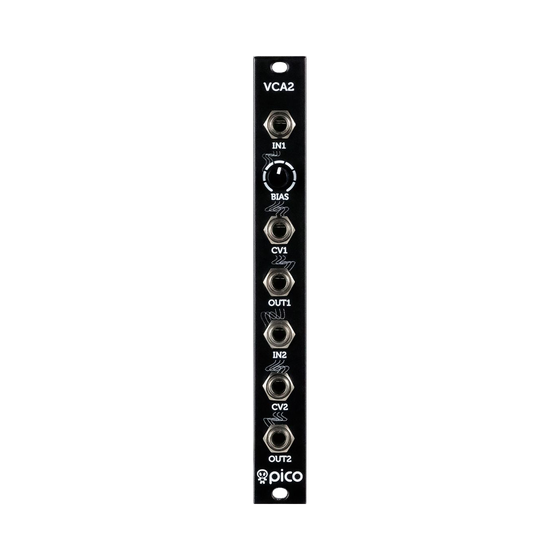

The Erica Synths Pico VCA2 is compact voltage controlled amplifier module, based on reliable AS3330 chip. It features two independent channels, and the first one comes with the manual offset adjustment, useful for full span vibrato effects. Audio and CV inputs of the first VCA are normalled to the second one, so the module can also be used as a buffered audio splitter. VCAs are DC coupled, and they can be used for controlling amplitude of control voltage signals.

Features

  • Two independent VCAs with a linear response
  • Manual bias adjustment on the top VCA
  • Input normalling
  • DC coupling
  • Input protection against overvoltage
  • Protection against reverse PSU connection

Technical specifications:

Nominal audio signal level0Vptp
CV level (full span)-5V - +10V
Max attenuation-110dB
Power consumption+20mA, -19mA
Module width3HP
Module depth35mm

Manuals book
