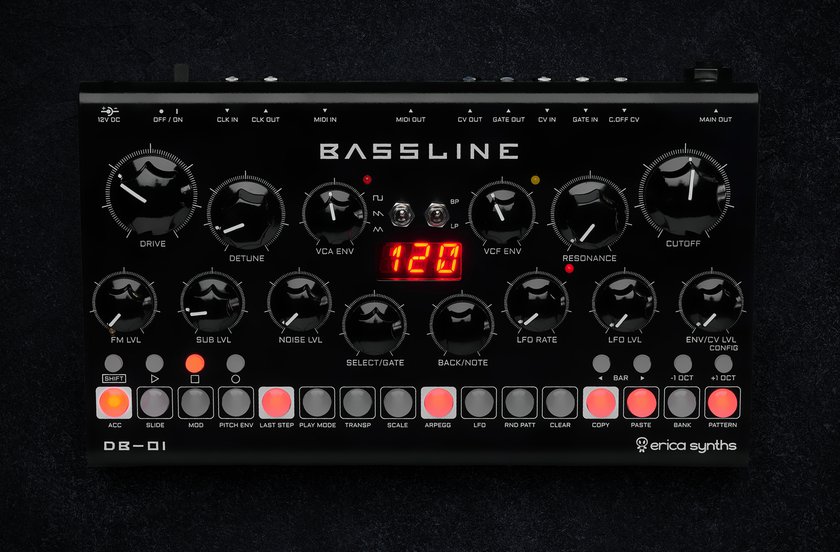

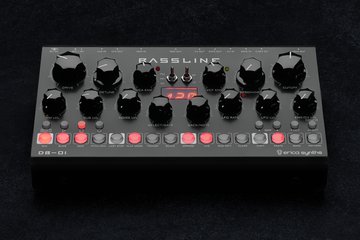

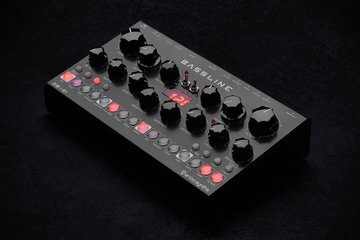

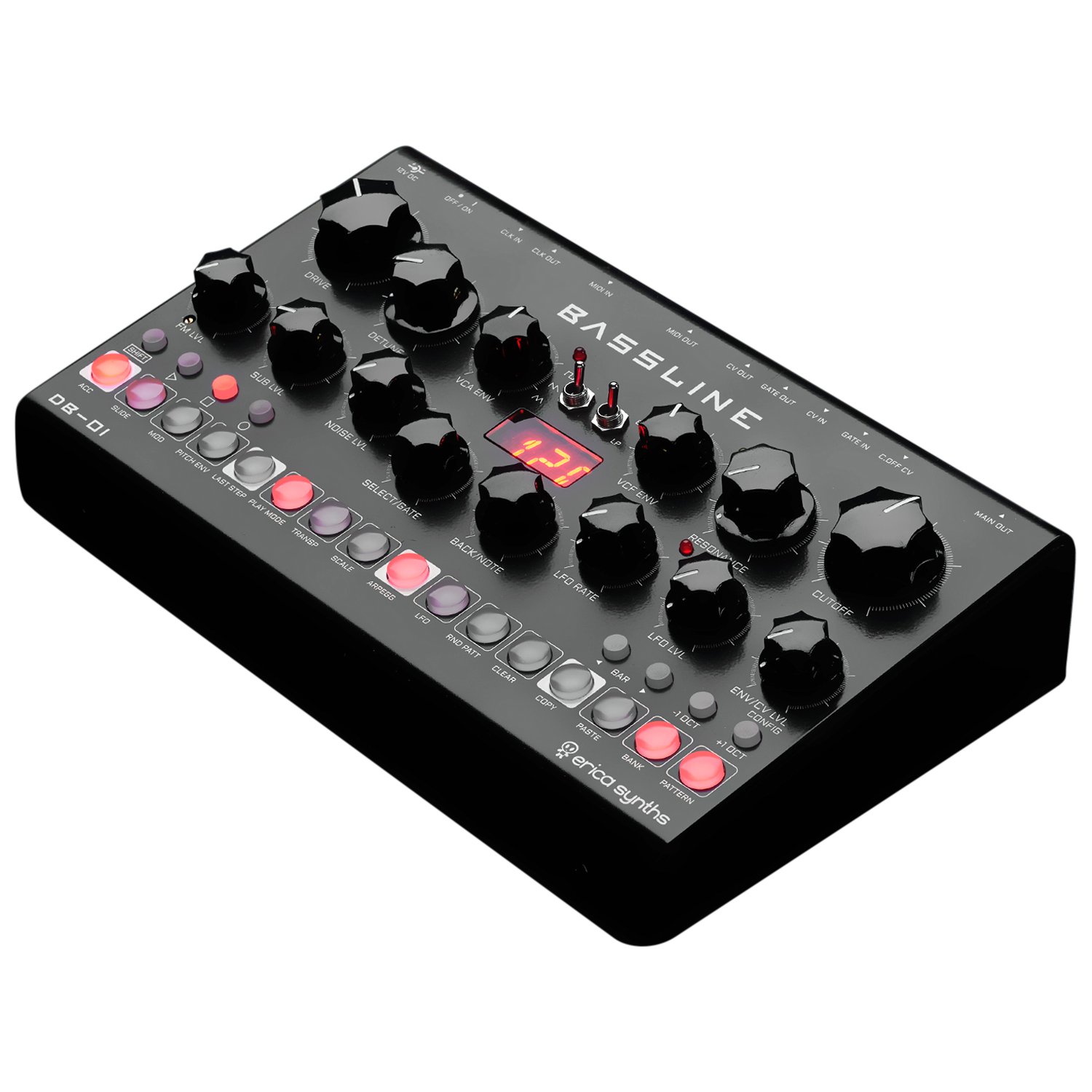

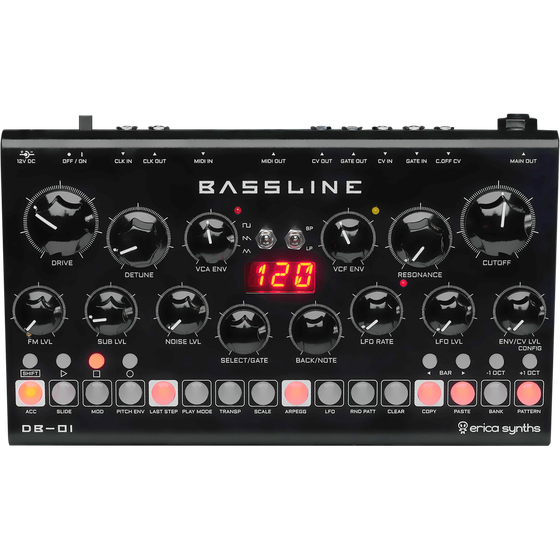

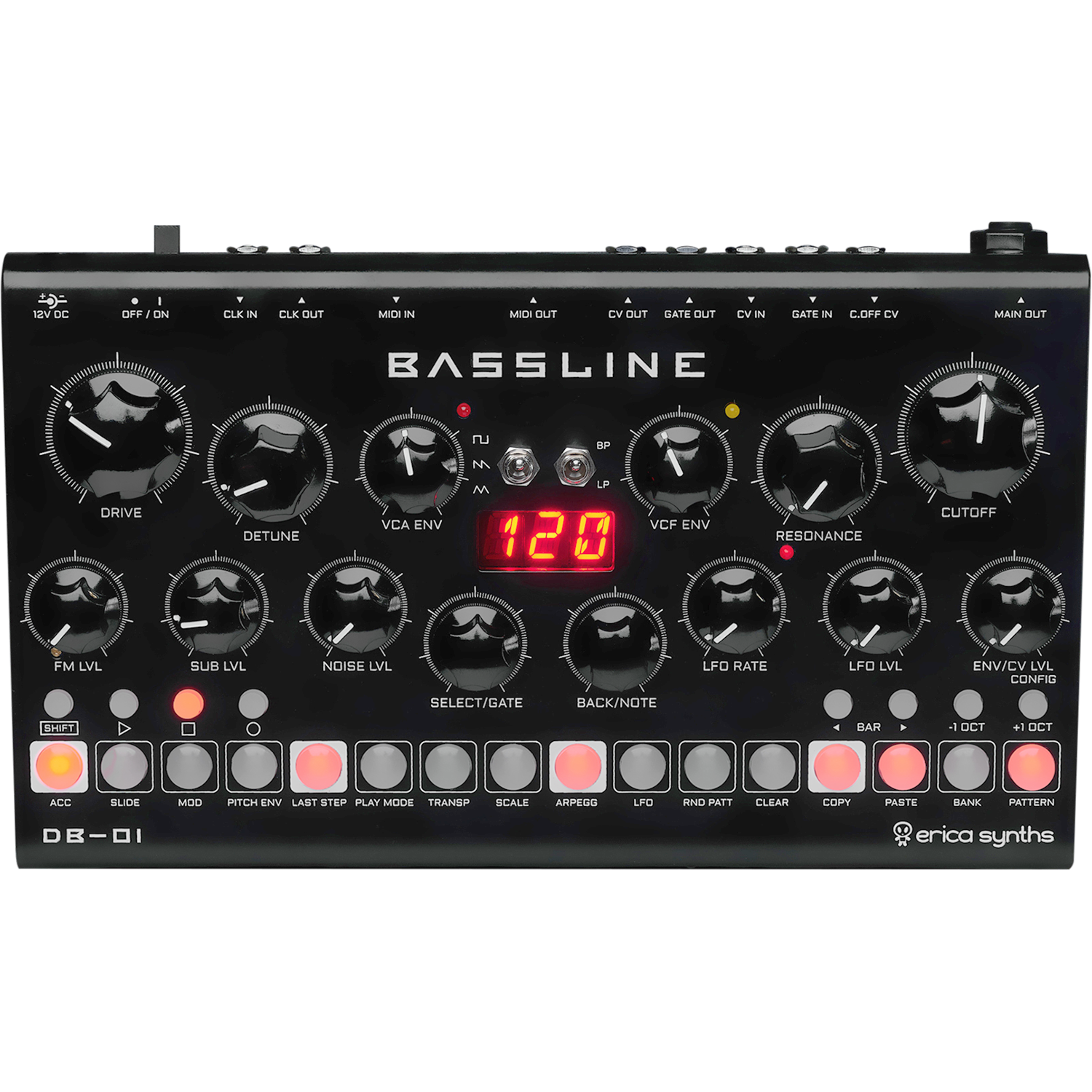

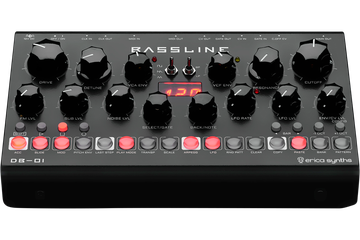

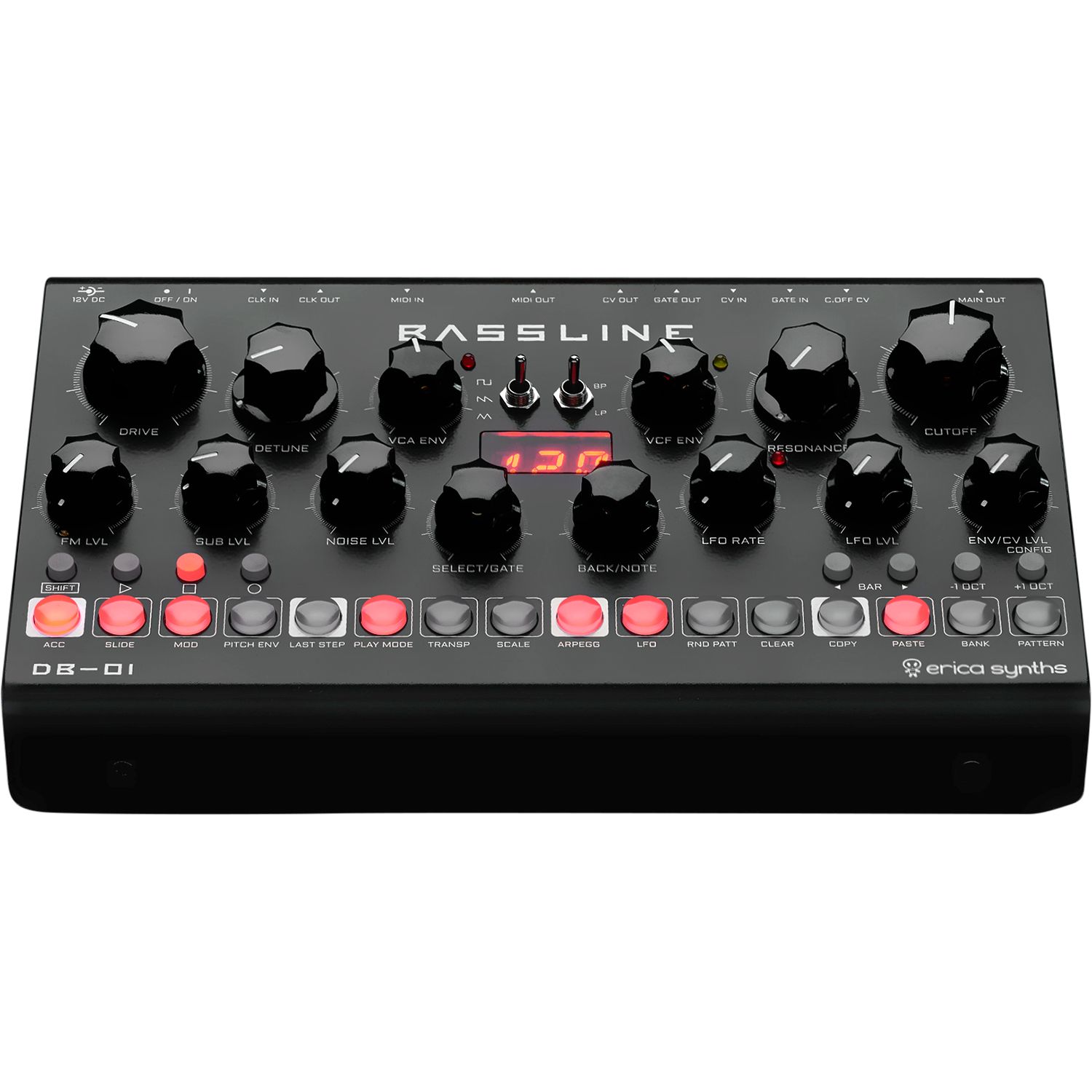

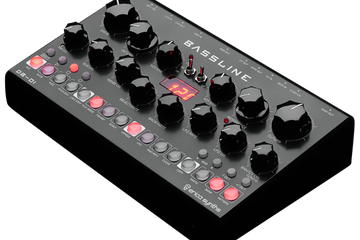

Desktop Bassline DB-01

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty
From basslines and rave sounds to massive drones and drums - the Erica Synths Bassline DB-01 synthesizer lets you explore new territories of sound and performance techniques and go from a melody to noise and back in no time. The DB-01 packs an analogue Erica Synths signature sound engine with an advanced sequencer on top of it.


  • All analogue sound engine
  • Aggresive acidbox filter design
  • One knob overdrive for even more destructive sound
  • Transistor based sub-oscillator
  • Independent amplitude, filter cutoff and pitch envelopes
  • BBD based detune for massive swarm sound
  • Syncable LFO with multiple waveforms for FM and VCF modulation
  • Noise source
  • Intuitive, easy to use sequencer for up to 64 step patterns
  • Sequence transposing
  • Pattern randomization
  • Arpeggiator
  • Modulation track with VCF cutoff automation
  • Built in and user defined scales with micro tonal possibilities

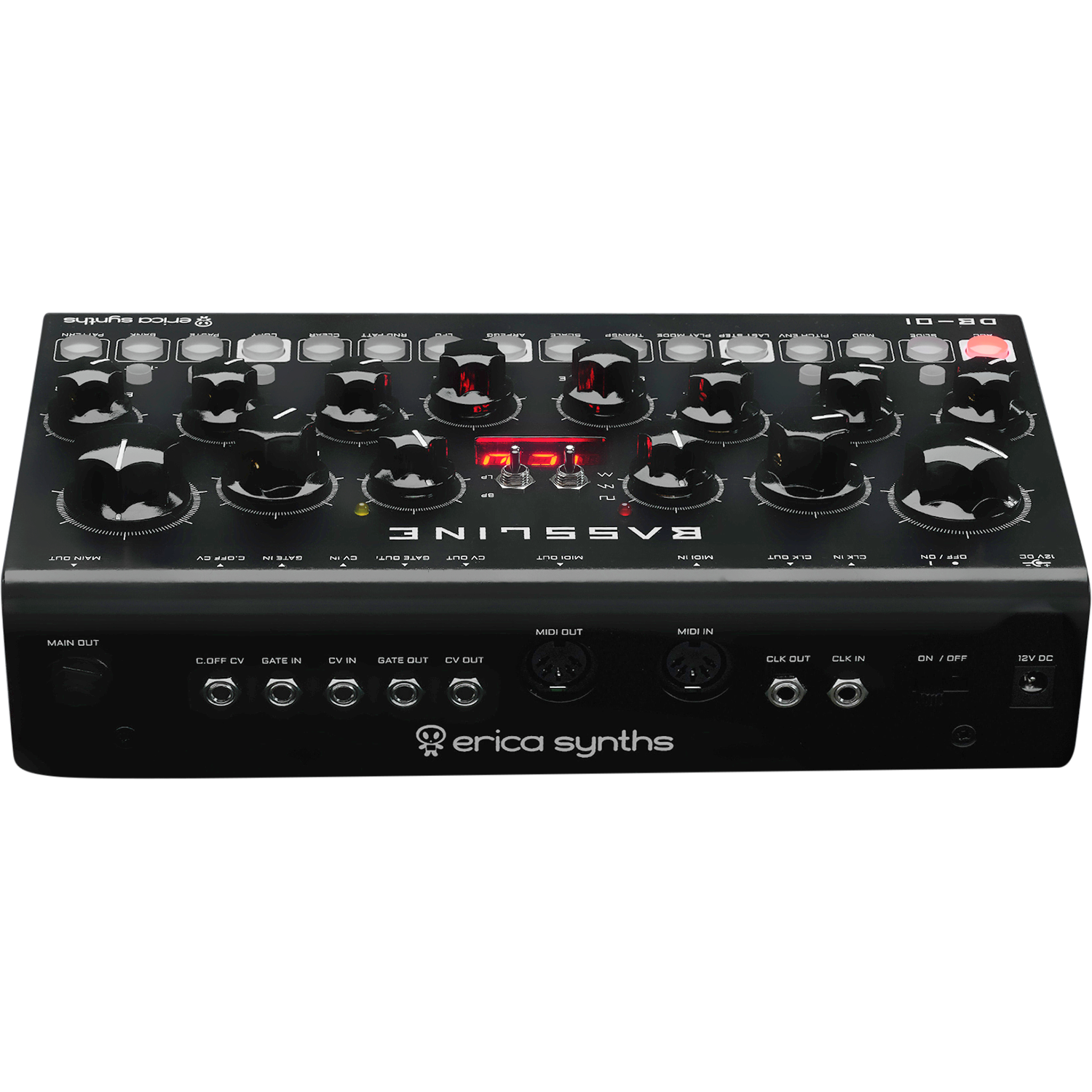

  • Analogue clock in and out
  • CV/Gate output/input
  • MIDI IN and THRU – play it with a keyboard!
  • 8 banks of 16 pattern memory
  • Compact, durable aluminium enclosure

Manuals book

  • User Manual — March 9, 2021
    Bassline DB-01 user manual PDF

Updates refresh

FAQ question_answer

  • I'm having troubles making my DB-01 respond to midi from any sequencer. I've set correct channels on both devices, but it didn't trigger any sound.
    If you want to trigger notes with external keyboard or sequencer via MIDI- you have to set your DB-01 to either keyboard ( shift+play) or arpeggiator (shift+arpegg) mode.
  • Sequencer of my DB-01 unit is not running. Pushing play does nothing. I can play the synth in keyboard mode but the arpeggiator and sequencer do nothing. Am I missing something?
    Please check if your DB unit is running on internal clock. Go to settings ( shift + config) -> with select/ gate encoder go to CLOCK- select INT- ( internal) Now the sequencer should run.
  • My DB-01 is not tracking pitch correctly.
    For analogue oscillators to track pitch well over the octaves - you need to warm them up for ~20-30 min. Then you go to settings ( shift+config) go to CAL and press Select/Gate encoder. Now your DB unit goes trough calibration process. After this it should track well over the octaves.
